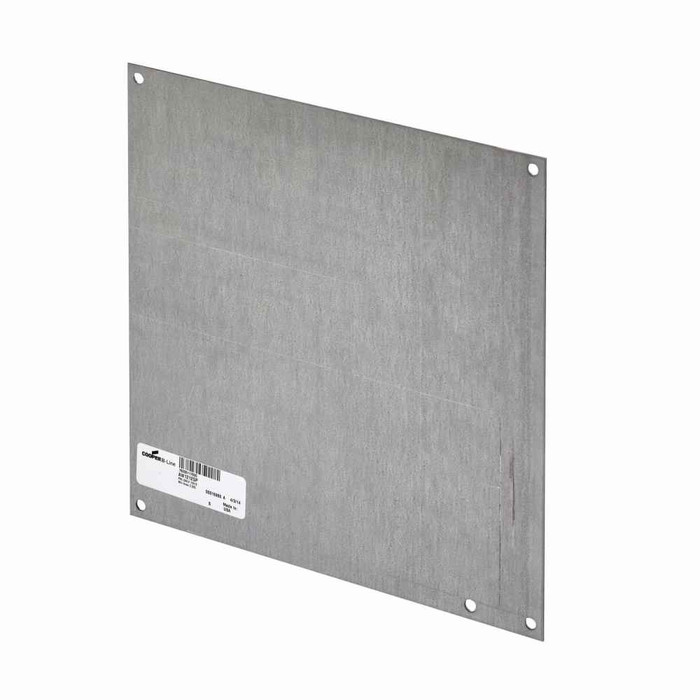

B-Line AW1614P Eaton series pa...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$156.10
$125.53
B-Line AW1614P Eaton series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Panel

B-Line AW1614P Eaton series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Panel

(No reviews yet) Write a Review

Model: AW1614P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.10
$125.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Panel

Manufacturer Resources

Product Specs

Application:
Used in installation of all JIC enclosures
Certifications:
CSA C22.2.
Degree Of Protection:
NEMA 12
Product Category:
Panels & panel accessories
Product Height:
14.87 in
Product Length Depth:
12.875 in
Product Weight:
3.635 lb
Product Width:
14 in
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
JIC & small panels
Product Details:
JIC & small panels
Product Style:
Panel
Product Material:
Galvanized steel

B-LINE AW1614P – Frequently Asked Questions

1) What size enclosure does the B-Line AW1614P back panel fit?
The AW1614P is a JIC back panel measuring 14.87 x 14 x 12.875 inches per its published height, width and length/depth figures. It is sized for JIC enclosures and mounts inside the box on the enclosure's panel studs or brackets, so match those panel dimensions against the mounting centers in the box you already have before ordering.
2) Is the AW1614P panel suitable for a NEMA 12 industrial control enclosure?
Yes. The AW1614P carries a NEMA 12 rating, which is the dust and drip-tight indoor industrial classification typical of JIC control boxes. It's a back panel, so it doesn't create the enclosure's seal itself, it's the mounting plate that goes inside a NEMA 12 box for DIN rail, starters, drives and terminal blocks.
3) What is the B-Line AW1614P made of, and will it hold up in a damp plant environment?
Construction is galvanized steel with a white powder coat finish. The galvanizing under the paint is what buys you corrosion resistance in humid or washdown-adjacent indoor areas, and the white topcoat makes wiring inside the enclosure easier to see. It is an indoor NEMA 12 part, not a part for direct outdoor exposure.
4) Does the Eaton B-Line AW1614P meet Canadian electrical standards for a panel shop build?
It is certified to CSA C22.2, which is what a panel builder shipping control assemblies into Canada normally needs to see on enclosure components.
5) Can I drill and tap the AW1614P for DIN rail and contactors?
Yes, that's the point of a back panel. It's galvanized steel, so drill and tap it for your DIN rail, wireway and device feet before you set it in the enclosure, and touch up bare drillings if the panel will see condensation. Doing the layout on the bench keeps swarf out of the box.
6) How heavy is the AW1614P panel, and can one person mount it?
It weighs 3.635 lb, so it's a one-hand lift into the box. The awkward part isn't the weight, it's lining up the panel on the enclosure's collar studs while you start the nuts, which is easier with the enclosure laid on its back.
7) Do I get mounting hardware with the B-Line AW1614P?
The AW1614P is sold as the panel itself, a single model with part number AW1614P. JIC enclosures normally carry their own welded panel studs and supply the nuts, so confirm your box has them rather than assuming they arrive with the plate.
