B-Line B22KO6-120GRN Eaton ser...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$111.02
$82.94

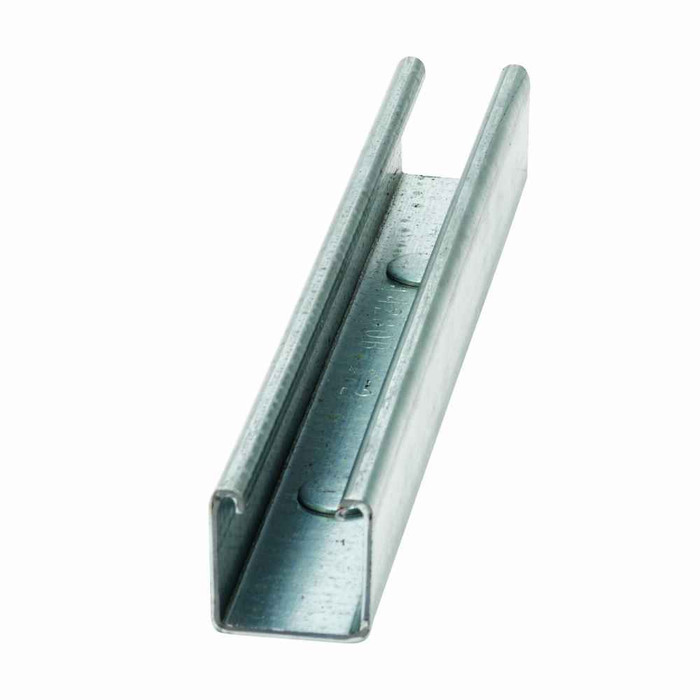

B-Line B22KO6-120GRN Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, K06 Hole pattern, B22 channel type, DURA GREEN

B-Line B22KO6-120GRN Eaton series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, K06 Hole pattern, B22 channel type, DURA GREEN

(No reviews yet) Write a Review

Model: B22KO6-120GRN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.02
$82.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, 1.62" channel height, 120" channel length, 1.62" channel width, Steel, 12 Gauge, K06 Hole pattern, B22 channel type, DURA GREEN

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B22
Hole Pattern:
K06
Material Gauge:
12 Gauge
Product Height:
1.62 IN
Product Length Depth:
120 IN
Product Weight:
19 LB
Product Width:
1.62 IN
Department:
Electrical
Product Finish:
DURA GREEN
Product Material:
Steel

B-LINE B22KO6-120GRN – Frequently Asked Questions

1) Is the B-Line B22 strut channel the same profile as standard 1-5/8 inch Unistrut-style channel?
Yes. The B22 profile measures 1.62 inches high by 1.62 inches wide, which is the common 1-5/8 by 1-5/8 inch strut section, so standard 1-5/8 inch strut nuts, clamps, fittings and pipe straps sized for that opening will work with it.
2) What is DURA GREEN finish on B-Line strut, and can I use it outdoors or in a wet area?
DURA GREEN is B-Line's green painted protective coating over the steel channel, which also makes the strut easy to identify in a run of mixed hardware. It is a paint finish, not hot-dip galvanizing, so for continuously wet, corrosive or exterior exposure most specs call for a galvanized or stainless channel instead. For dry interior mechanical and electrical rooms it is the normal choice.
3) Does the strut channel come with nuts, bolts or brackets?
No. B22KO6-120GRN is the bare channel only, a 120 inch length of 12 gauge steel strut. Strut nuts, hardware, end caps, angle fittings, beam clamps and pipe clamps are all separate line items and need to be ordered alongside it to complete a hanger or rack.
4) What does the K06 hole pattern mean on this B-Line strut channel?
K06 is a knockout-style hole pattern running the length of the channel, spaced so you can bolt into the back of the strut without drilling on site. Pair it with the 120 inch stick length and you get a continuous run of fixing points for anchoring the channel to structure or joining sections back to back.
5) Is 12 gauge strut heavy enough to hang conduit racks and pipe?
12 gauge steel is the standard heavy-duty strut thickness used for trapeze hangers, conduit racks and pipe supports in commercial work. The B22 section is solid steel at 12 gauge, so it is the same material weight contractors spec for structural trapeze runs rather than the lighter gauges used for light fixture whips and signage.
6) What part number do I order to match the green 1-5/8 strut already in my building?
The single-channel green 12 gauge B22 with K06 holes is ordered as B-Line part number B22KO6-120GRN in 120 inch sticks. Ordering by that number keeps the profile, gauge, hole pattern and DURA GREEN finish consistent with what is already installed, which matters if you are extending an existing rack and want fittings and appearance to match.
7) Is this a single channel or a back-to-back double strut?
It is a single channel. At 1.62 inches high by 1.62 inches wide the B22 is one 1-5/8 inch section, not the doubled 1-5/8 by 3-1/4 inch back-to-back profile used for long unsupported spans. If your span calls for the deeper section, specify a back-to-back channel rather than this one.
