B-Line N224WOSS6 Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$84.30
$46.29

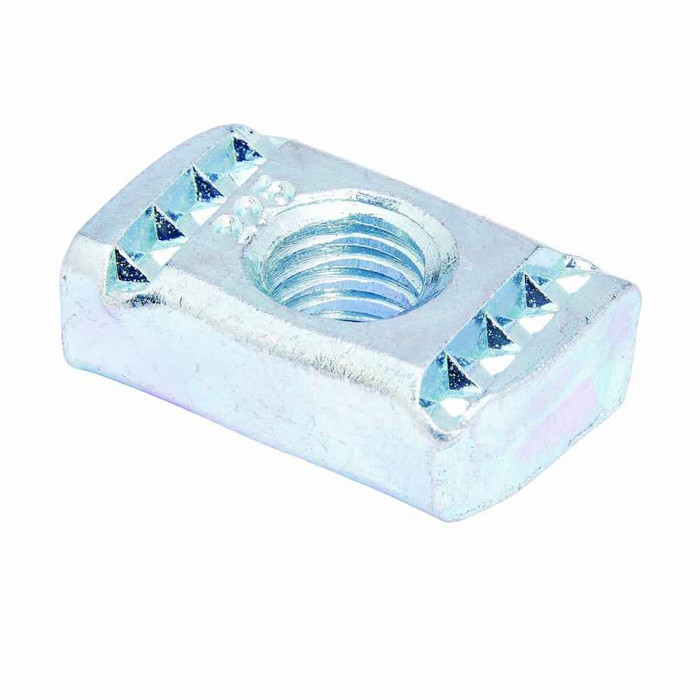

B-Line N224WOSS6 Eaton series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strength, 300 lbs slip strength, 3/8"-16 thread size

B-Line N224WOSS6 Eaton series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strength, 300 lbs slip strength, 3/8"-16 thread size

(No reviews yet) Write a Review

Model: N224WOSS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$84.30
$46.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strength, 300 lbs slip strength, 3/8"-16 thread size

Manufacturer Resources

Product Specs

Bolt Thread Rod Size:
3/8”-16
Certifications:
Not Applicable
Load Rating Pull Out Strength:
250 lbs
Load Rating Slip Strength:
300 lbs
Product Category:
Channel nuts
Product Height:
.25 in
Product Length Depth:
1.31 in
Product Weight:
.063 lb
Product Width:
.75 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Nut without spring
Product Finish:
Stainless steel type 316
Product Details:
Nut without spring
Product Material:
Steel
Product Length:
1.31 in

B-LINE N224WOSS6 – Frequently Asked Questions

1) What thread size does the B-Line N224WOSS6 channel nut take?
The N224WOSS6 channel nut is tapped 3/8"-16, so it accepts 3/8-16 threaded rod or 3/8-16 bolts. If your rod is 1/2-13 or 1/4-20, this is the wrong nut.
2) Is this B-Line channel nut suitable for outdoor or corrosive locations?
Yes. The N224WOSS6 is stainless steel type 316, which is the grade specified for coastal, wash-down, chemical and wastewater environments. Pair it with 316 stainless strut and 316 rod; mixing it with plain electro-galvanized hardware in a wet location defeats the point.
3) Does the N224WOSS6 come with a spring?
No spring. It is a plain channel nut, so it will not hold itself in position in the strut while you line up the rod. On overhead work that means a second pair of hands or starting the rod before you seat the nut. If you want the nut to stay put on its own, order a spring nut version instead.
4) Can I use this stainless channel nut to hang all-thread rod for conduit and pipe supports?
That is exactly its use. The N224WOSS6 is a strut channel nut for all threaded rod, tapped 3/8-16, and it is the connection between a 3/8 in rod drop and the strut channel. The rod, strut, and any washers or hex nuts are separate items.
5) Is the B-Line N224WOSS6 solid stainless or stainless plated steel?
The material is steel with a stainless steel type 316 specification on the finish field, so treat the corrosion performance as 316 stainless. For a fully 316 assembly, specify 316 rod and 316 strut to match.
6) What is the exact part number to order this 3/8-16 stainless strut nut?
Order Eaton B-Line part number N224WOSS6. One configuration only, so there is no finish or thread choice to specify beyond that number.
