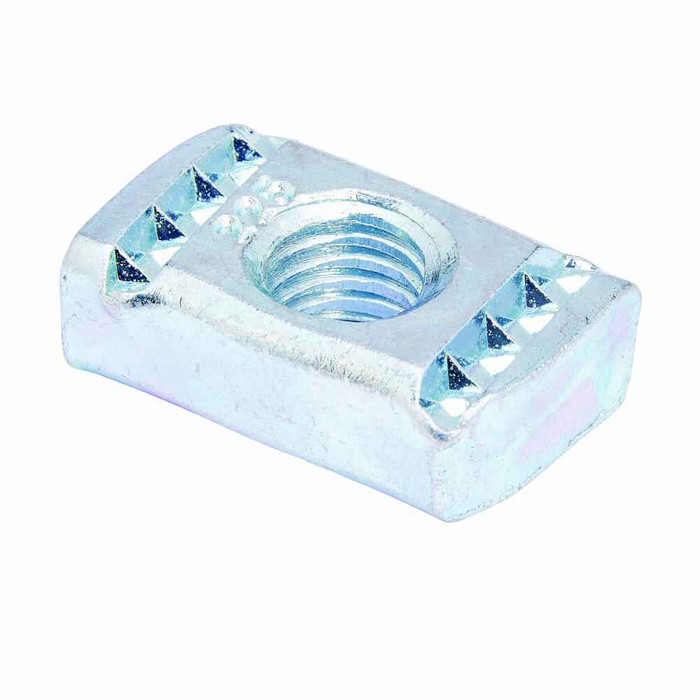

B-Line Eaton series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strengt

B-Line Eaton series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strengt

(No reviews yet) Write a Review

Model: N225WOSS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,745.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, nuts, all threaded rod, Steel, Channel nuts, Nut without spring, Stainless steel type 316, 250 lbs pull out strength, 1500 lbs slip strength, 1/2"-13 thread size

Manufacturer Resources

Product Specs

Bolt Thread Rod Size:
1/2"-13
Certifications:
Not Applicable
Load Rating Pull Out Strength:
250 lbs
Load Rating Slip Strength:
1500 lbs
Product Category:
Channel nuts
Product Height:
.85 in
Product Length Depth:
2 in
Product Weight:
.113 lb
Product Width:
1.31 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Nut without spring
Product Finish:
Stainless steel type 316
Product Details:
Nut without spring
Product Material:
Steel

B-LINE N225WOSS6 – Frequently Asked Questions

1) What thread size does the B-Line N225WOSS6 channel nut take?
The N225WOSS6 channel nut is tapped 1/2"-13, so it mates with 1/2 inch all-thread rod or 1/2 inch hex bolts. If your rod is 3/8"-16, this is the wrong nut.
2) How much load will a B-Line N225WOSS6 strut nut hold?
Two numbers matter here. Pull out strength is 250 lbs, which is the load trying to rip the nut out of the channel lips. Slip strength is 1500 lbs, the load trying to slide it along the run once it's torqued. For a hanging rod the 250 lb pull out figure is your governing value.
3) Is the B-Line N225WOSS6 channel nut suitable for outdoor or corrosive locations?
It's stainless steel type 316, which is the grade specified for coastal, wash-down, chemical and wastewater environments. Pair it with 316 stainless strut and 316 rod so you aren't mixing metals in the same connection.
4) Does the B-Line N225WOSS6 come with a spring?
No spring on this one. It's the plain channel nut, so you have to hold it in position in the strut while you start the bolt, or it drops down the run. If you're working overhead or in a long horizontal run, a spring nut is the easier part to install.
5) Can I use this channel nut to hang threaded rod for conduit or pipe supports?
That's what it's built for. The 1/2"-13 tapping takes 1/2 inch all-thread, and it's the standard connection for trapeze hangers, conduit racks and pipe supports run off strut channel. Keep the hung load inside the 250 lb pull out rating per nut.
6) How do I order the B-Line 316 stainless channel nut by part number?
Order it as Eaton B-Line N225WOSS6. That's the 1/2"-13, no-spring, 316 stainless channel nut. The suffix SS6 is the 316 stainless designation, so don't confuse it with the plain or electro-galvanized versions of the same nut body.
7) Is the N225WOSS6 a solid stainless nut or just plated?
Stainless type 316 throughout rather than a plating over carbon steel, so cut edges and thread engagement don't become the corrosion point. Plated carbon nuts are the cheaper choice for dry interior electrical rooms.
