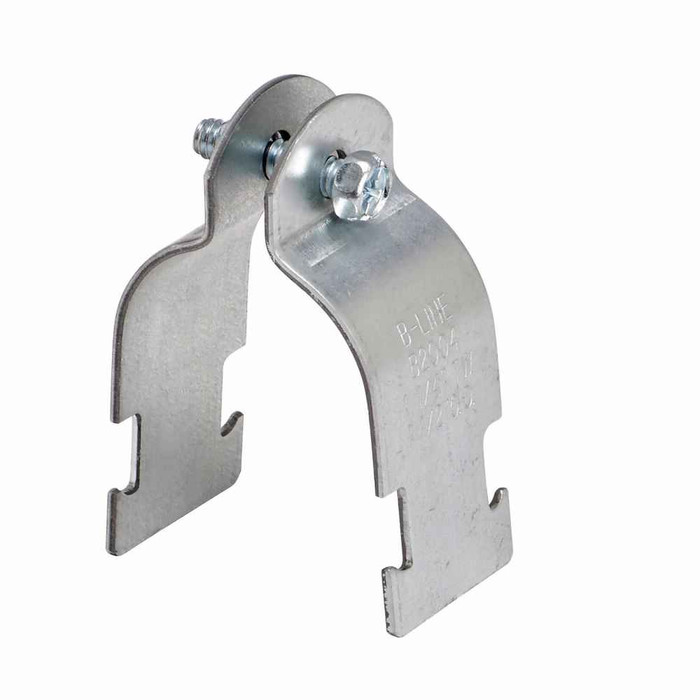

B-Line B2010SS6 Eaton series strut pipe clamps and accessories, .074" height, 2.951" length, 1.25" width, Steel, Includes combination recess hex head machine screw, Pipe or conduit clamps, Stainless steel type 316

The screw is included. The B2010SS6 ships with a combination recess hex head machine screw, so the clamp and its fastener come together. You still need the strut nut or channel nut to land it in the strut run, since that is not part of the clamp assembly.

It is a type 316 stainless strut pipe clamp, which is the grade specified for coastal, chemical, and wash-down environments where standard galvanized or 304 corrodes. Note the material attribute on the record reads Steel while the product description calls out stainless steel type 316, so order it as the 316 stainless version by part number B2010SS6.

It is a strut pipe clamp, meant to secure pipe or conduit to Eaton B-Line strut channel using the included machine screw and a channel nut. For anchoring conduit straight to a wall, slab, or deck you want a one-hole or two-hole conduit strap instead, not this clamp.

It measures .074 x 2.951 x 1.25 inches (height, length, width as published) and weighs .16 lb. The .074 inch figure is the strap stock thickness, which is what tells you how much material sits between the pipe and the strut face when you are checking clearance on a tight rack.

Avoid it where corrosion is the reason you specified 316. Pairing a 316 stainless clamp with plain galvanized channel puts dissimilar metals in contact and undercuts the reason for the stainless in the first place. On a marine, food-plant, or exterior run, match the B2010SS6 with 316 stainless strut and 316 channel nuts so the whole assembly is the same grade.

Order it as B2010SS6, the Eaton B-Line part number for the type 316 stainless strut pipe clamp with the combination recess hex head machine screw included. The SS6 suffix is what distinguishes the 316 stainless version from the plain and electro-galvanized B2010 variants in the same series.

No certifications are attributed to the B2010SS6 strut pipe clamp; the record lists certifications as not applicable. If your spec requires a listed support component, confirm the requirement against the strut system rather than the clamp alone.
