B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$172.67
$166.60

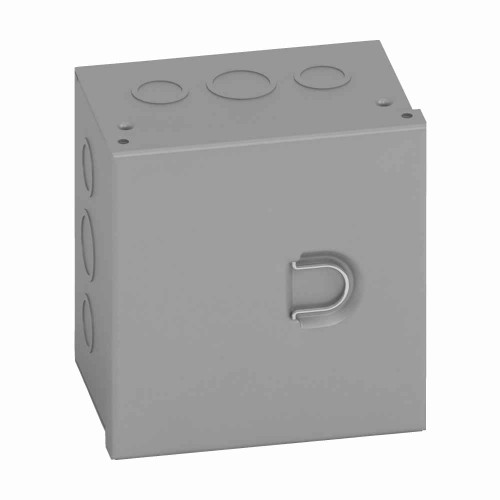

B-Line Eaton series Type 1 junction boxes, 8" height, 4" length, 6" width, 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No k

B-Line Eaton series Type 1 junction boxes, 8" height, 4" length, 6" width, 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No k

(No reviews yet) Write a Review

Model: 864 HC NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$172.67
$166.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 8" height, 4" length, 6" width, NEMA 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No knockout, Thru holes, Carbon steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
Painted
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
8 in
Product Length Depth:
4 in
Product Weight:
3.9 lb
Product Width:
6 in
Special Features:
Removable cover,recessed pull ring&friction dimple
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
HC NK enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel

B-LINE 864 HC NK – Frequently Asked Questions

1) Can a B-Line 864 HC NK junction box be used outdoors or in a washdown area?
No. The 864 HC NK is a NEMA Type 1 enclosure, which is for indoor use only and offers no protection against rain, hose-down, or dust ingress. For outdoor or wet locations you need a Type 3R or Type 4 enclosure instead. Keep this one in dry indoor spaces like electrical rooms, mechanical rooms, and finished ceilings.
2) What are the actual box dimensions on the B-Line 864 HC NK?
It measures 8 inches high, 6 inches wide, and 4 inches deep. That 4 inch depth is the one to check against your conduit runs and wire bending space, since a hinged cover adds nothing to usable interior depth. Weight is 3.9 lb, light enough for a single-person surface mount.
3) How does the B-Line 864 HC NK mount to a wall?
Surface mount, using thru holes in the back of the enclosure. You fasten straight through the box body into the wall or strut, so the fasteners you use are yours to supply and should suit the substrate (anchors for masonry, screws into blocking or strut nuts for a Unistrut run). It is not a flush or recessed box, so the full 4 inch depth sits proud of the wall.
4) Is the Eaton B-Line 864 HC NK UL listed for an inspected commercial job?
It is built to UL 50, the standard covering enclosures for electrical equipment. Paired with the NEMA Type 1 indoor rating, that is what an inspector looks for on an indoor junction or pull box. Note that UL 50 covers the enclosure itself, so any field-modified conduit entries still need proper fittings to keep the installation compliant.
5) Is the cover on the 864 HC NK hinged or does it come all the way off?
Both, in effect. The cover is hinged as a small single door so it swings open for routine access without juggling loose screws, and it is also removable when you need the opening clear to pull wire or set devices. It has a recessed pull ring and a friction dimple that holds it closed, so there is no separate latch or lock to specify.
6) What is the B-Line 864 HC NK enclosure made of and what does it look like once installed?
Carbon steel at 16 gauge, painted in ANSI 61 grey, the standard grey that matches most industrial panelboards and control gear. It is a US-made enclosure. If you are standardizing a facility, the ANSI 61 finish will blend with existing B-Line and Eaton equipment already on the wall.
