B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$239.01

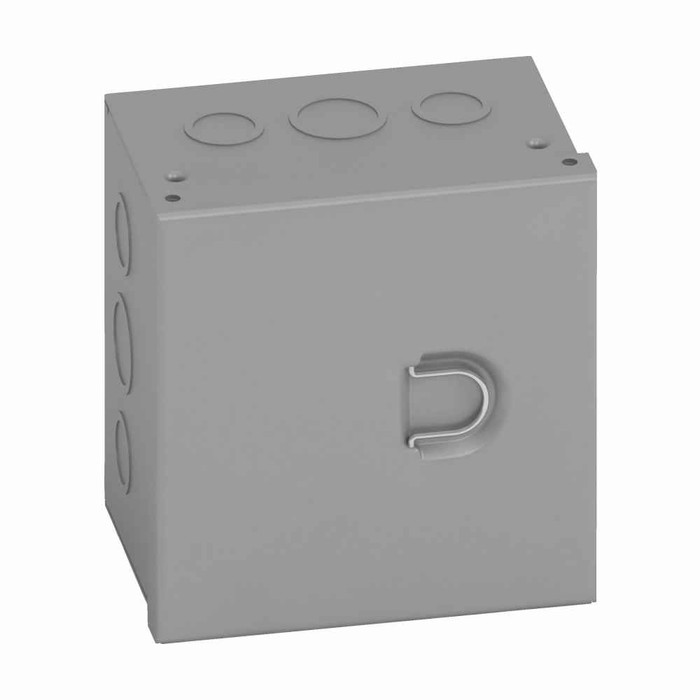

B-Line Eaton series Type 1 junction boxes, 8" height, 6" length, 8" width, 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No k

B-Line Eaton series Type 1 junction boxes, 8" height, 6" length, 8" width, 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No k

(No reviews yet) Write a Review

Model: 886 HC NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$239.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 8" height, 6" length, 8" width, NEMA 1, Hinged cover, HC NK enclosure, Surface mounted, Small single door, No knockout, Thru holes, Carbon steel

Manufacturer Resources

Product Specs

Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
Painted
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
8 in
Product Length Depth:
6 in
Product Weight:
5.8 lb
Product Width:
8 in
Special Features:
Removable cover,recessed pull ring&friction dimple
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
HC NK enclosure
Product Color:
ANSI 61 gray
Product Style:
Small single door
Product Material:
Carbon steel
Product Length:
6 in

B-LINE 886 HC NK – Frequently Asked Questions

1) Can the Eaton B-Line 886 HC NK junction box be used outdoors or in a washdown area?
No. The 886 HC NK is a NEMA Type 1 enclosure, which is for indoor use only and protects against incidental contact and falling dirt. It gives no protection against rain, hose-down, dust ingress or corrosive washdown. For a wet or outdoor location you need a Type 3R, 4 or 4X enclosure instead.
2) What are the actual box dimensions on the B-Line 886 HC NK enclosure?
It measures 8 inches high by 8 inches wide with a 6 inch depth, built from 16 gauge carbon steel. That depth is the number to check first if you are stacking wire connectors or a small terminal strip behind the cover.
3) Does this B-Line junction box come with knockouts for conduit?
No knockouts. The 886 HC NK is a blank box, so every conduit or connector opening gets punched or hole-sawed in the field where you want it. That is an advantage when your conduit runs do not line up with a factory pattern, and extra work if you wanted a ready-made entry. Order a knockout version if you do not want to punch steel on site.
4) How does the 886 HC NK mount to a wall?
Surface mount, through thru holes in the back of the box. You fasten it directly to the wall or backing with your own screws or bolts, sized to the substrate. Nothing about it is designed to be recessed into a stud bay.
5) Is the cover hinged or does it come all the way off?
Both. The 886 HC NK has a hinged cover that is also removable, with a recessed pull ring and a friction dimple to hold it shut. For maintenance work where you are in and out of the box, the hinge means the cover stays with the enclosure instead of being set on the floor; pulling it off entirely gives you clear access when you are landing conductors.
6) What is the exact part number to order this B-Line hinged cover junction box?
Catalog number 886 HC NK from Eaton's B-Line series: 886 for the 8 x 8 x 6 body, HC for hinged cover, NK for no knockouts.
7) What color and finish is the B-Line 886 HC NK, and will it match other enclosures in a plant?
Painted ANSI 61 gray, which is the standard gray used across most industrial enclosures and control panels, so it will read as a match alongside typical switchgear and panel finishes in a facility.
8) How heavy is this 8x8x6 steel junction box, and can one person hang it?
5.8 pounds empty. A one-man install on any solid wall, though the fastener choice still matters on drywall or block since the load goes up once conduit and conductors are landed.
9) Where is the B-Line 886 HC NK made?
Made in the United States, which matters if you are buying against a domestic-content requirement on a government or institutional job.
