B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$678.96

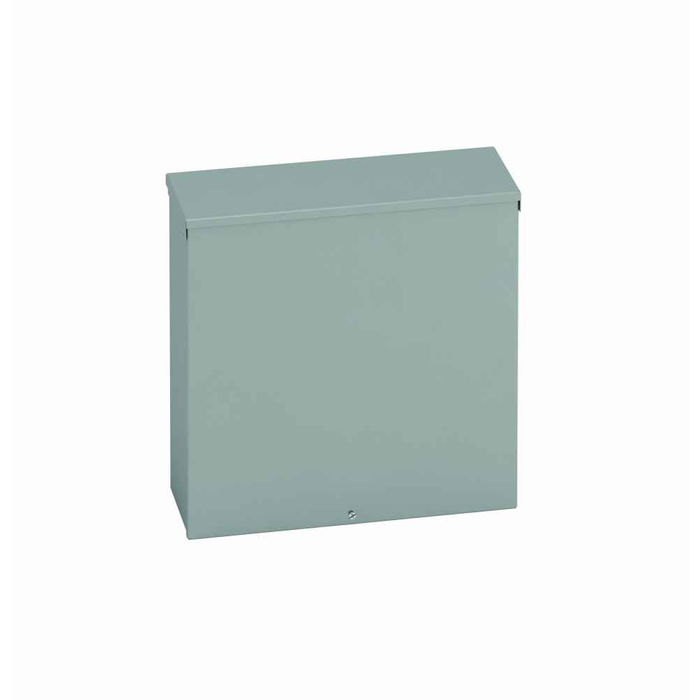

B-Line Eaton series Type 3/3R junction boxes, 16" height, 6" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

B-Line Eaton series Type 3/3R junction boxes, 16" height, 6" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

(No reviews yet) Write a Review

Model: 16126 RTSC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$678.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 16" height, 6" length, 12" width, NEMA 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door, 5, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
5
Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
16 in
Product Length Depth:
6 in
Product Weight:
12.3 lb
Product Width:
12 in
Special Features:
Rain hood, plated screws
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel

B-LINE 16126 RTSC – Frequently Asked Questions

1) Can the Eaton B-Line 16126 RTSC junction box be mounted outdoors?
Yes. The 16126 RTSC carries a NEMA 3R rating and includes a rain hood over the cover, so it is built for outdoor wall mounting where falling rain, sleet and ice are the concern. It is not a washdown or hosedown enclosure, so keep it off applications that need 4 or 4X protection.
2) What are the box dimensions on the B-Line 16126 RTSC enclosure?
It measures 16 inches high, 12 inches wide and 6 inches deep, which is the usable footprint you get for terminal blocks, splices or a small panel. Shipping weight of the box is 12.3 lb.
3) Does this B-Line junction box come with knockouts, or do I have to punch my own?
There are 5 knockouts in the bottom of the box. Top and sides are blank on a 3R enclosure by design, since penetrations above the live parts defeat the rain-tight rating. Any additional entries you make should go in the bottom or lower sides.
4) How does the B-Line 16126 RTSC mount to a wall?
Surface mount, using embossed thru holes in the back of the box. The embossments hold the enclosure off the mounting surface so water drains behind it instead of pooling, which is what you want on an exterior wall. Fasteners and any strut or standoffs are supplied by the installer.
5) Is the cover on the 16126 RTSC hinged or does it screw on?
Screw cover, flanged, with plated screws. You lift the whole cover off to work in the box rather than swinging a door, so allow clearance in front and plan on a driver at every service visit. If you want a hinged door you need a different style enclosure.
6) What gauge steel is this enclosure, and will it hold up outside?
The body is 16 gauge carbon steel with a painted finish in ANSI 61 grey. Carbon steel painted is the standard choice for general outdoor and industrial use. In coastal salt air or a chemical environment, specify stainless or a non-metallic 4X box instead.
7) Does the 16126 RTSC include a back panel for mounting components?
The RTSC is a screw cover junction box, supplied as the box and cover. No sub-panel is called out with it, so if you plan to mount terminal strips, relays or a small controller inside, order a panel separately and size it to the 16 by 12 inch interior.
8) What part number do I order for the 16 x 12 x 6 B-Line 3R screw cover box?
Order Eaton B-Line 16126 RTSC. The number reads as the dimensions: 16 high, 12 wide, 6 deep, with RTSC for the rain-tight screw cover style.
