B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$447.81

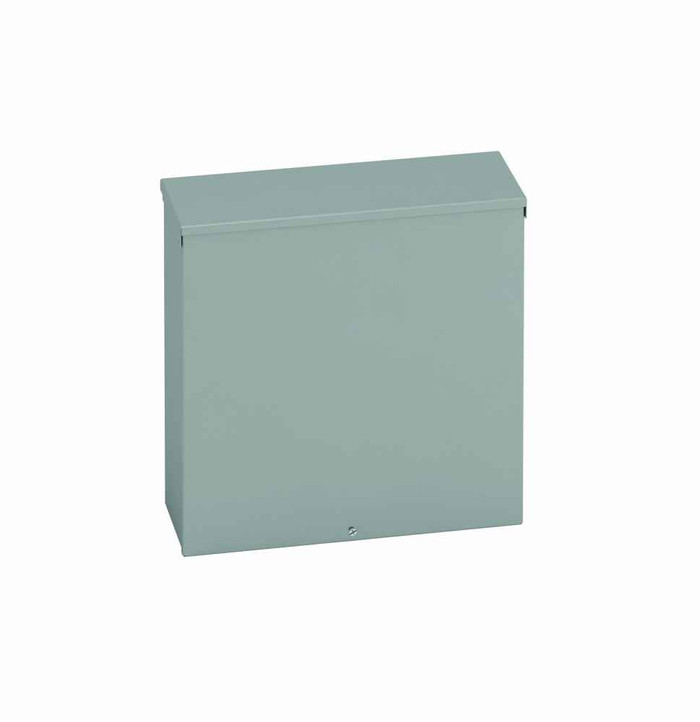

B-Line Eaton series Type 3/3R junction boxes, 12" height, 6" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

B-Line Eaton series Type 3/3R junction boxes, 12" height, 6" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

(No reviews yet) Write a Review

Model: 12126 RTSC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$447.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 12" height, 6" length, 12" width, NEMA 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door, 5, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
5
Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
12 in
Product Length Depth:
6 in
Product Weight:
10.1 lb
Product Width:
12 in
Special Features:
Rain hood, plated screws
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel

B-LINE 12126 RTSC – Frequently Asked Questions

1) Can the B-Line 12126 RTSC junction box be mounted outdoors?
Yes, within the limits of a NEMA 3R rating. The 12126 RTSC is rated Type 3R, which covers outdoor use against falling rain, sleet and external ice formation, and it includes a rain hood over the cover seam. It is not a washdown or hosedown enclosure, so if the location sees direct spray or wind-driven water you want a 4 or 4X box instead.
2) Is the cover on the 12126 RTSC hinged or does it screw on?
It is a screw cover, flanged type, with plated screws supplied. That means you take the whole cover off to work in the box rather than swinging a door, which is fine for a pull or splice point you rarely open. If the box will be opened routinely for service, a hinged door enclosure is the better choice.
3) Does the 12126 RTSC enclosure come with conduit knockouts, or do I have to punch my own?
There are five knockouts in the bottom of the box already. The remaining walls and the cover are blank, so any side or top entries have to be field punched. Top penetrations on a 3R box should be avoided anyway since water runs down to the top surface.
4) Is this enclosure UL listed for a spec job?
The 12126 RTSC carries UL 50, the standard for enclosures for electrical equipment. It is made in the US, which covers Buy American language on many public and institutional projects.
5) How does this B-Line box attach to a wall, and are the mounting holes inside the wiring space?
It is a surface mount enclosure with embossed thru holes in the back pan. The embossing raises the hole so the fastener seats above the pan surface, which keeps the 3R integrity at the mounting point. Fasteners and wall anchors are not part of the box, so pick those to suit the substrate.
6) What gauge steel is the B-Line 12126 RTSC junction box, and what is the finish?
The body is 16 gauge carbon steel, painted ANSI 61 grey, which is the standard grey that matches most switchgear and panel lineups. Being painted carbon steel rather than stainless, it belongs indoors or in sheltered outdoor locations, not in corrosive or coastal duty.
7) What is the exact part number to order this 12x12x6 B-Line rain tight screw cover box?
Order it as Eaton B-Line 12126 RTSC. In B-Line's numbering the digits give the height, width and depth (12 x 12 x 6) and RTSC identifies the rain tight screw cover style, so a 12126 RTSC and a 12126 RT are not the same cover arrangement.
