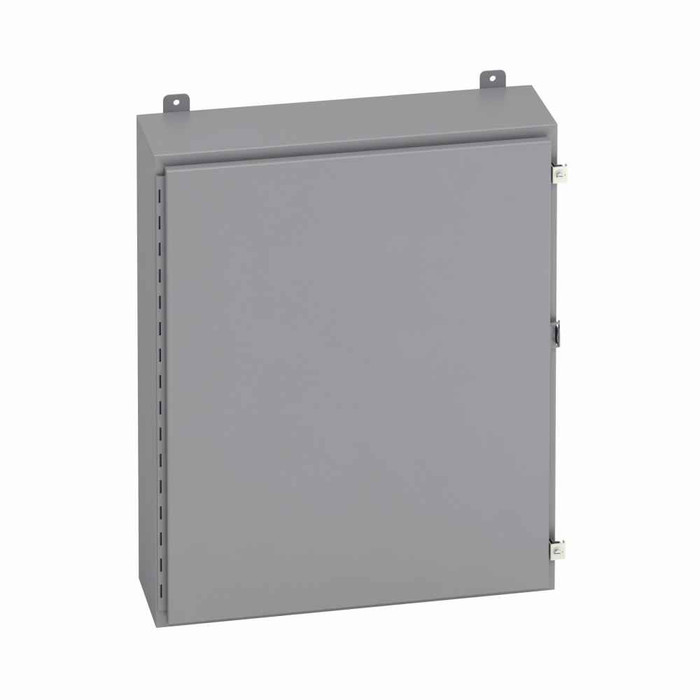

Eaton B-Line series wall mounted panel enclosure
Manufacturer Resources
Product Specs
- Certifications:
- UL 508A
- Closure Type:
- Hinged
- Country Of Origin:
- US
- Cover Type:
- Hinged
- Finish Color:
- Painted
- Locking Provisions:
- Padlock provision
- Mounting Hole Details:
- External mounting feet
- Nema Rating:
- 12
- Product Height:
- 60 IN
- Product Length Depth:
- 16 IN
- Product Weight:
- 162.8 LB
- Product Width:
- 36 IN
- Special Features:
- Plated door clamps
- Wall Thickness:
- 14 gauge
- Department:
- Electrical
- Product Model:
- 12 enclosure
- Product Color:
- ANSI 61 Grey
- Mounting Method:
- Wall
- Product Style:
- Large single door
- Product Material:
- Carbon steel
B-LINE 603616-12 – Frequently Asked Questions
1) Is this enclosure UL listed for building an industrial control panel?
The 603616-12 carries UL 508A, the standard for industrial control panels. That's the listing an inspector or a panel shop looks for when the enclosure will house motor starters, drives and control circuits under a UL 508A panel build.
2) Can the B-Line 603616-12 be padlocked for lockout/tagout?
Yes, the door has a padlock provision, so it accepts a standard shackle padlock for LOTO or to keep an industrial control panel out of unauthorized hands. Combined with the hinged door and plated clamps, it opens for service without removing the cover.
3) What gauge steel and what color is the B-Line 603616-12?
Body and door are 14 gauge carbon steel, painted ANSI 61 grey, the standard industrial enclosure color that matches most switchgear and control gear already on a plant floor. The 14 gauge wall is heavy enough to carry mounted devices and stand up to knockouts and drilled conduit entries.
4) What part number do I order for a 60x36x16 B-Line NEMA 12 single door enclosure?
Order it as Eaton B-Line 603616-12. The number encodes the size and rating: 60 high, 36 wide, 16 deep, type 12. It's a large single door style, so there is no center post to work around when you're laying out the interior.
