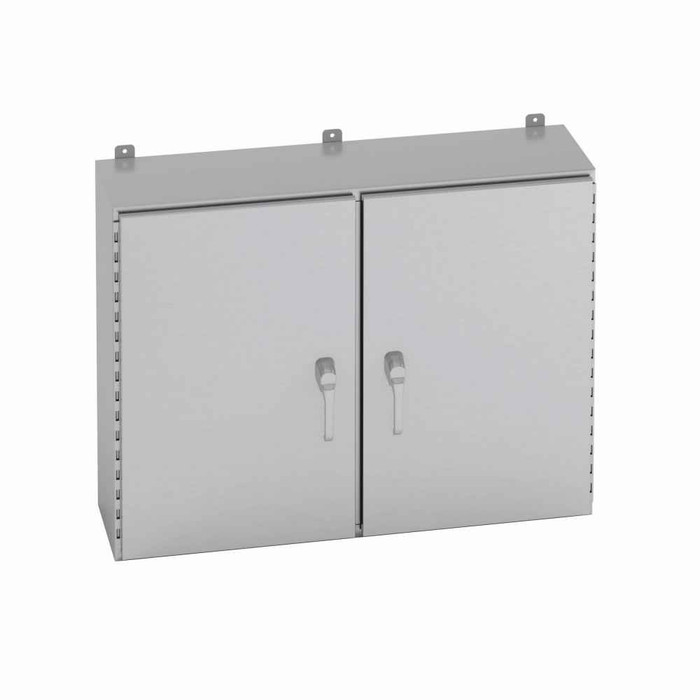

Eaton B-Line series wall mounted panel enclosure
Manufacturer Resources
Product Specs
- Certifications:
- UL 508A
- Closure Type:
- Hinged
- Country Of Origin:
- US
- Cover Type:
- Hinged
- Finish Color:
- #4 brushed
- Locking Provisions:
- Key lock padlock provision
- Mounting Hole Details:
- External mounting feet
- Nema Rating:
- 4X
- Product Height:
- 24 IN
- Product Length Depth:
- 8 IN
- Product Weight:
- 94.4 LB
- Product Width:
- 48 IN
- Special Features:
- Stainless handle with 3-pt latching
- Wall Thickness:
- 14 gauge
- Department:
- Electrical
- Product Model:
- 4XSD3PT enclosure
- Product Color:
- Grey
- Mounting Method:
- Wall
- Product Style:
- Medium double door
- Product Material:
- 304 stainless steel
B-LINE 24488-4XSD3PT – Frequently Asked Questions
1) What are the enclosure dimensions on the B-Line 24488-4XSD3PT?
The 24488-4XSD3PT measures 24 inches high, 48 inches wide and 8 inches deep, so the digits in the model number read height-width-depth. That 8 inch depth is the number to check first: deep breakers, disconnect operators or terminal blocks on a back panel can eat it quickly, so measure your deepest mounted component plus wire bending space before committing.
2) Is this stainless enclosure suitable for a washdown or coastal outdoor location?
Yes. The 24488-4XSD3PT is NEMA 4X rated and built from 304 stainless steel, which is the combination specified for hose-down, food processing and salt-air exposure where a painted carbon steel 4 enclosure would corrode. The #4 brushed finish is the standard sanitary mill finish for those environments.
3) Is a UL rating included for use as an industrial control panel enclosure?
The enclosure carries UL 508A, the standard for industrial control panels, which is what most plant and OEM specs call out when the box will house motor starters, contactors and control circuits.
4) How does the 24488-4XSD3PT mount, and how much wall support does it need?
It is a wall mount enclosure with external mounting feet, so the fasteners land outside the sealed body and the 4X integrity is never broken by a mounting hole. Weight is 94.4 lb empty, and once a back panel and gear are loaded it will run well past that, so anchor into studs, strut or masonry rather than drywall anchors.
5) Does this B-Line enclosure have one door or two?
Two. It is a medium double door enclosure, which is why the 48 inch width is manageable in a tight electrical room: each leaf swings about half that. Both doors are hinged and the 3-point latch mechanism is operated from a single stainless handle.
6) Can I padlock this enclosure for lockout purposes?
The handle includes a key lock with padlock provision, so it can be keyed shut and additionally accept a padlock shackle for lockout on maintained equipment. Padlocks are not supplied with the enclosure.
7) Does this enclosure come with a back panel or subpanel?
What is described is the enclosure itself: 24 x 48 x 8 inch stainless body, hinged double doors, stainless 3-point latch handle with key lock and padlock provision, and external mounting feet. Mounting panels, terminal kits, window kits and padlocks are separate items, so add the back panel to your order if you are building a control panel in it.
8) What gauge is the steel on this B-Line 4X enclosure?
Body and doors are 14 gauge, in 304 stainless. That is the heavier of the two common enclosure gauges and it is what keeps a 48 inch double door from flexing enough to break the gasket seal at the latch points.
