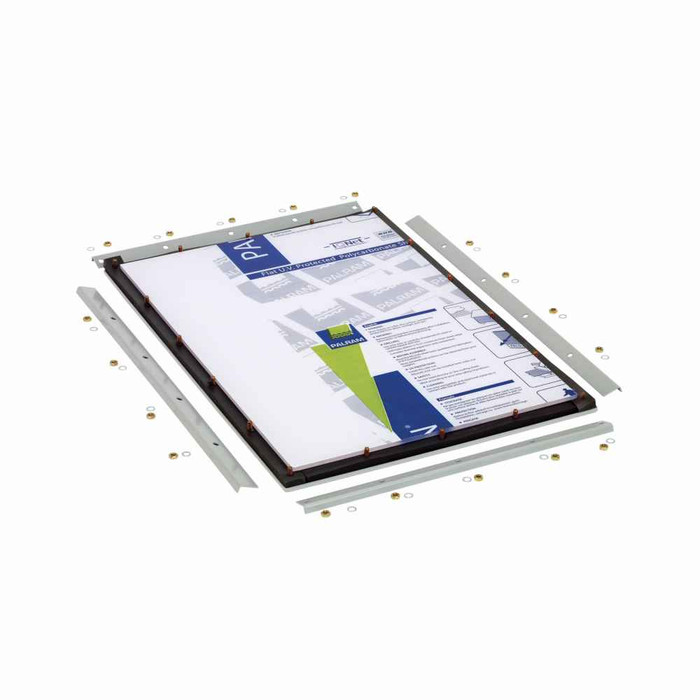

Eaton B-Line series window and door kit, ANSI 61 gray polyester powder coated, Stainless steel, Fixed window, Plexiglas window kit, Enclosure cut-out 24.62" X 16.62"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Category:
- Plexiglas window kit
- Product Height:
- 24.62 in
- Product Length Depth:
- 25.53 in
- Product Weight:
- 10.825 lb
- Product Width:
- 16.62 in
- Department:
- Electrical
- Product Type:
- Fixed window
- Product Details:
- Fixed window
- Product Material:
- Stainless steel
B-LINE PWK2315SS – Frequently Asked Questions
1) What size cut-out do I need in my enclosure door for the B-Line PWK2315SS window kit?
The PWK2315SS window kit mounts into a door cut-out of 24.62 by 16.62 inches. Lay that opening out before you cut: the kit's frame covers the cut edges, so the hole has to match those dimensions to seat properly. The kit itself measures 25.53 inches on the length/depth side.
2) Is the PWK2315SS window a hinged door or a fixed pane?
Fixed. The PWK2315SS is a fixed window kit, so the Plexiglas pane is permanently framed into the enclosure door with no separate hinged window door. You open the enclosure door itself to get at the equipment; the window is only for viewing gauges, meters, or indicator lights without breaking the seal.
3) Is the B-Line PWK2315SS window kit UL Listed?
Yes, the PWK2315SS carries a UL Listing. That matters on an inspected installation, because cutting an unlisted window into an enclosure door can compromise the enclosure's own listing.
4) Will this B-Line window kit hold up in a washdown or corrosive area?
The frame hardware on the PWK2315SS is stainless steel, which is what you want in damp, chemical, or food-processing areas where painted carbon steel would rust at the cut edge. The viewing pane is Plexiglas rather than glass.
5) Will the PWK2315SS match the gray finish on my existing Eaton B-Line enclosures?
It is finished in ANSI 61 gray polyester powder coat, the standard gray used across Eaton B-Line industrial enclosures, so it blends with existing gray panels in a lineup rather than standing out.
6) How heavy is the PWK2315SS window kit, and will it need support on a door?
The kit weighs 10.825 lb. That is enough added load on a swinging enclosure door that on a lighter gauge or narrow door you should check the hinge capacity, particularly when the window is mounted high on the door.
7) What part number do I order for this Eaton B-Line Plexiglas window kit?
Order it as Eaton B-Line PWK2315SS. That single manufacturer part number covers the complete window and door kit with the stainless frame and Plexiglas pane in ANSI 61 gray.
