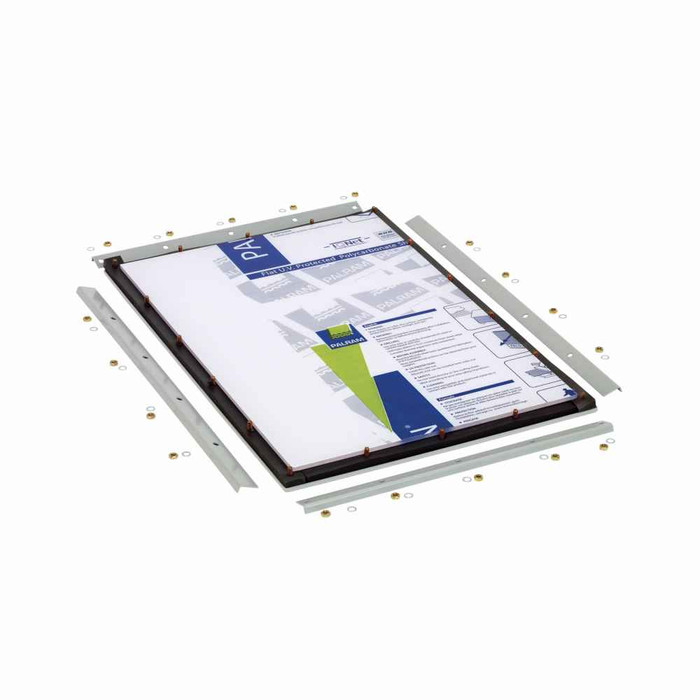

Eaton B-Line series window and door kit, ANSI 61 gray polyester powder coated, Stainless steel, Fixed window, Plexiglas window kit, Enclosure cut-out 36.62" X 24.62"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Category:
- Plexiglas window kit
- Product Height:
- 36.62 in
- Product Length Depth:
- 25.53 in
- Product Weight:
- 19.135 lb
- Product Width:
- 24.62 in
- Department:
- Electrical
- Product Type:
- Fixed window
- Product Details:
- Fixed window
- Product Material:
- Stainless steel
B-LINE PWK3523SS – Frequently Asked Questions
1) What size enclosure cut-out does the B-Line PWK3523SS window kit require?
The PWK3523SS Plexiglas window kit mounts to a cut-out of 36.62 by 24.62 inches. Those are the hole dimensions you cut in the enclosure door, not the outside trim size, so lay out the opening to that figure before ordering. If your existing viewing cut-out is a different size, this kit won't cover it.
2) Is the PWK3523SS window a fixed pane or does it open like a hinged door?
It's a fixed window. The Plexiglas pane is captured in the frame and does not swing, so it's for viewing meters, gauges and indicator lights through an enclosure door without opening it. If you need access to the components behind the glazing, you need a hinged window/door kit instead.
3) Is the B-Line PWK3523SS window kit UL Listed?
Yes, the PWK3523SS carries a UL Listing. That matters on inspected industrial and institutional work where a field-cut window in an enclosure door has to be a listed kit rather than a shop-fabricated opening.
4) Is the frame on the Eaton B-Line PWK3523SS stainless steel or painted steel?
Both, in effect. The frame material is stainless steel, and it ships finished in ANSI 61 gray polyester powder coat, which is the standard gray Eaton uses on industrial enclosures. So it matches a painted ANSI 61 gray enclosure door visually while the underlying frame is stainless.
5) Will the PWK3523SS window kit match the gray on my existing Eaton B-Line enclosure?
If the enclosure is finished in ANSI 61 gray, yes. The kit is ANSI 61 gray polyester powder coated, the same industry-standard gray used across B-Line and other industrial enclosure lines, so it blends on a retrofit rather than standing out as a patch.
6) What is the exact part number to order this Eaton B-Line window kit?
Order it as Eaton B-Line PWK3523SS. That single model number covers the fixed Plexiglas window kit in ANSI 61 gray with the 36.62 by 24.62 inch cut-out; there are no finish or size options to specify.
7) Is the PWK3523SS glazing glass or plastic, and does that matter in a plant?
The glazing is Plexiglas, an acrylic pane rather than glass. For plant floors and mechanical rooms that's usually what you want: it won't shatter into the enclosure if something strikes it. Keep solvents and harsh cleaners off it, since acrylic crazes where glass wouldn't.
