B-Line Eaton series wireway, 3...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$451.20

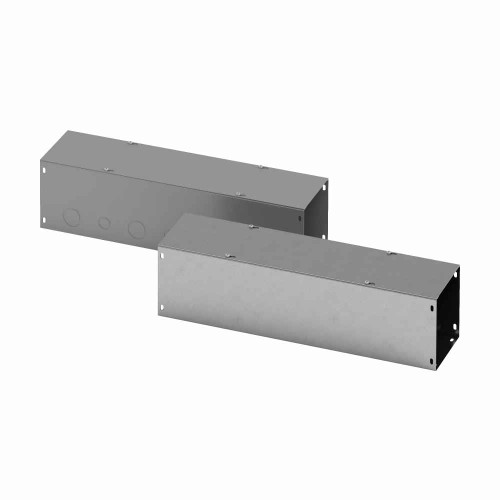

B-Line Eaton series wireway, 3" height, 60" length, 3" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

B-Line Eaton series wireway, 3" height, 60" length, 3" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

(No reviews yet) Write a Review

Model: 3360 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$451.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 3" height, 60" length, 3" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
3 in
Product Length Depth:
60 in
Product Weight:
12.784 lb
Product Width:
3 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway
Product Length:
60 in

B-LINE 3360 G NK – Frequently Asked Questions

1) Does the 3360 G NK wireway come with knockouts already punched?
No. The NK in the designation means no knockouts, so the trough ships blank on all four sides. You punch or drill wherever your conduit entries land. If you want factory knockouts on a set spacing, you need the knockout version instead of the NK.
2) What NEMA rating does this B-Line wireway carry, and can I use it outdoors?
NEMA 1 only, which is indoor general purpose. It guards against incidental contact with the enclosed wiring and falling dirt, but there is no gasketing and no protection from water. Keep it indoors and dry. For a wet or outdoor location you need a NEMA 3R raintight trough, not this one.
3) What else do I need to order to build a complete wireway run with these troughs?
The 3360 G NK is a straight 60 inch section only. Joining two sticks takes a connector, and any change of direction takes an elbow or a tee sized for 3 x 3. End caps close off a terminating run. Order those separately in matching 3 x 3 size and ANSI 61 gray so the finish carries through, and plan your conduit entries since the trough ships with no knockouts.
4) Is this a screw cover or a hinged cover wireway?
Screw cover. The cover lifts off completely and is held by plated screws around the flange, which is what you want for a permanent run where the cover stays closed. If you need repeated access for troubleshooting, a hinged cover trough is the easier choice, since a screw cover means backing out every screw each time you open it.
5) What gauge steel and finish is this wireway, and will it match my existing gray panels?
16 gauge steel painted ANSI 61 gray, which is the standard gray used across commercial electrical enclosures and panelboards. Running it alongside other ANSI 61 gear gives you a consistent look. The 16 gauge body is the usual weight for a screw cover trough of this size and holds its shape when you're pulling conductors through.
6) Is the Eaton B-Line 3360 G NK wireway approved for Canadian work?
It's CSA Certified, so it can be specified on projects in Canada as well as the US. That's the certification carried on the trough itself; connectors, elbows, and fittings you add to the run carry their own listings.
7) Can I use this wireway as a pull box or junction point between conduits?
Yes, that's a normal use for a screw cover trough. The removable cover gives you full access along the whole 60 inches for making splices and pulling conductors, and since there are no factory knockouts you can locate conduit entries exactly where your runs come in. Keep the fill and splice volume within what the 3 x 3 cross section allows under code.
