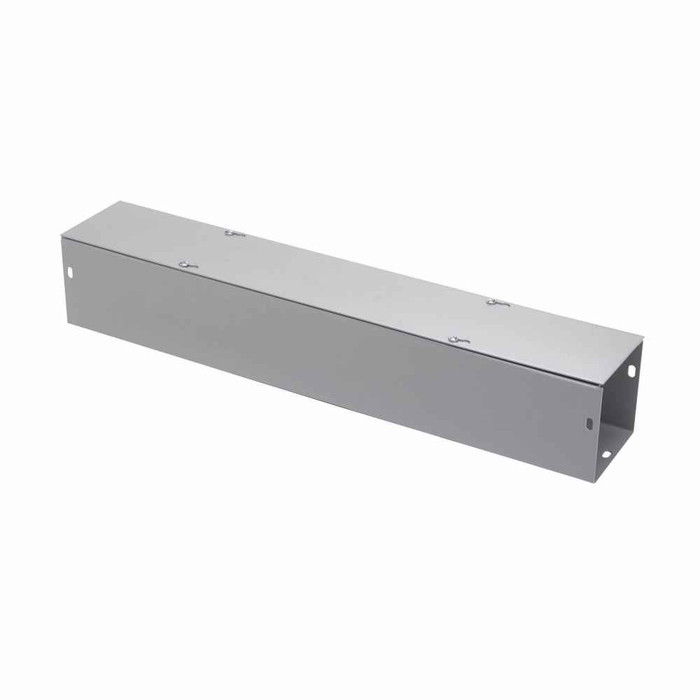

B-Line Eaton series wireway, 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$138.09
$105.16
B-Line Eaton series wireway, 4" height, 12" length, 4" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated scre

B-Line Eaton series wireway, 4" height, 12" length, 4" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated scre

(No reviews yet) Write a Review

Model: 4412 GGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$138.09
$105.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 4" height, 12" length, 4" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
4 in
Product Length Depth:
12 in
Product Weight:
3.309 lb
Product Width:
4 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
GGV NK wireway
Product Details:
GGV NK wireway

B-LINE 4412 GGV NK – Frequently Asked Questions

1) What size is the B-Line 4412 GGV NK wireway, and how much wire can it carry?
It's a 4 x 4 inch cross section, 12 inches long. Wireway fill is figured on the 4 x 4 interior, which is the standard commercial trough size for feeder and branch circuit pulls, and the 12 inch length makes it a jumper or filler section between larger runs rather than a main trough.
2) Is the 4412 GGV NK wireway rated for outdoor or wet locations?
No. It's a NEMA 1 enclosure, which is indoor, dry location only, intended to keep fingers and falling dirt out. For a rooftop, a wash-down area, or anywhere exposed to water, you need a NEMA 3R or 4 raintight wireway instead, not this one.
3) Does this B-Line wireway come with knockouts for conduit?
No knockouts. The GGV NK trough ships with solid sides, so you drill or punch your own openings wherever your conduit lands. If you want factory holes on set centers, order a knockout version instead of the NK.
4) How does the cover come off on this 12 inch wireway?
Screw cover, held with plated screws. You back the screws out to open the trough, so it's fine for a pull point you rarely revisit but slower than a hinged or latching cover if you're in it often for troubleshooting.
5) How is the 4412 GGV NK wireway mounted to a wall or strut?
Through holes in the back of the trough, so it bolts flat to a wall, backboard, or a length of strut with your own fasteners. Anchors and bolts aren't part of the trough, so pick them for the substrate you're landing on.
6) What gauge steel and finish is this B-Line wireway, and will it match existing gray trough on my job?
16 gauge galvanized steel with a gray finish, which is the standard trough color, so it lines up visually with typical gray wireway already installed in a plant or electrical room. The galvanized base under the paint is what you want for an indoor industrial environment.
7) Is this wireway third-party certified for an inspected commercial install?
It's CSA Certified, which is the listing an inspector or plan reviewer will look for on a steel wireway in Canada and is commonly accepted on US commercial work.
8) Can I use this short section to join two longer runs of 4 x 4 wireway?
Yes, that's the common use for a 12 inch piece. It matches the 4 x 4 cross section of standard trough in the same GGV screw cover family, so it works as a filler or transition length in a run. Connectors and couplings are separate items, not included with the trough.
9) What is the exact part number and weight for a 4 x 4 x 12 inch B-Line screw cover wireway?
Order it as 4412 GGV NK from Eaton's B-Line series. It weighs 3.309 lb, light enough to hold in place single-handed while you start the mounting screws.
