B-Line Eaton series wireway, 6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$670.03

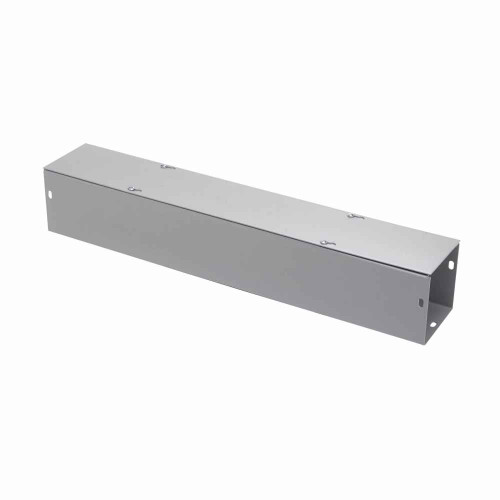

B-Line Eaton series wireway, 6" height, 72" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated scre

B-Line Eaton series wireway, 6" height, 72" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated scre

(No reviews yet) Write a Review

Model: 6672 GGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$670.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 6" height, 72" length, 6" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
6 in
Product Length Depth:
72 in
Product Weight:
28.966 lb
Product Width:
6 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
GGV NK wireway
Product Details:
GGV NK wireway

B-LINE 6672 GGV NK – Frequently Asked Questions

1) What size is the B-Line 6672 GGV NK wireway, and how much wire can it carry?
It is a 6 x 6 inch cross section, 72 inches long, so a straight 6-foot run of square trough. The 6 by 6 opening is the common size for pulling and splicing multiple feeder runs where a 4 by 4 trough would be tight. It weighs 28.966 lb, so a two-person lift or a helper on long overhead runs is realistic.
2) Is this wireway rated for outdoor or wet locations?
No. The 6672 GGV NK is a NEMA 1 enclosure, which is indoor, dry-location only. It gives you protection against incidental contact and falling dirt, nothing more. For a rooftop, a wash-down area, or anywhere water can hit it, you need a gasketed raintight trough instead, not this one.
3) Does the B-Line 6672 GGV NK come with knockouts, or do I have to punch my own openings?
No knockouts. The NK in the model designation means the body ships blank, so every conduit entry gets field-located and punched to suit your run. That is what you want when the layout is not fixed yet, but budget the time for a punch or hole saw through 16 gauge galvanized steel. If you would rather have factory openings on centers, order a knockout version instead.
4) How does the cover come off on this wireway, and can I get to the conductors after it is installed?
The cover is a full-length screw cover held on with plated screws, so you unscrew it and lift it clear along the whole 72 inch run for pulling or splicing. It is not a hinged or quick-latch cover, so if you expect to open it repeatedly for troubleshooting, plan on driver time each visit. Leave yourself screwdriver clearance on the access face when you lay out the mounting.
5) What is the wireway made of, and will it hold up in an unheated warehouse or parking garage?
Galvanized steel body in 16 gauge, gray finish, with plated screws on the cover. The zinc coating and plated hardware handle the damp, dusty air of an unconditioned warehouse or interior garage fine. What it is not built for is direct water or corrosive wash-down, since the enclosure is NEMA 1.
6) Is the Eaton B-Line 6672 GGV NK wireway approved for a Canadian job?
It is CSA Certified, so it can be specified on work under the Canadian Electrical Code as well as US jobs. Worth noting on submittals for institutional and municipal projects where a third-party mark on the enclosure is a condition of approval.
7) Can I run several of these together to make a longer trough run?
Yes. Each piece is a 72 inch straight section, so you couple sections end to end for whatever total length the run needs. Elbows, tees, and end plates are separate items, and the couplers and closure plates for the joints are not part of this trough, so count those on the takeoff before the crew shows up.
