B-Line Eaton series wireway, 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$138.09
$105.16

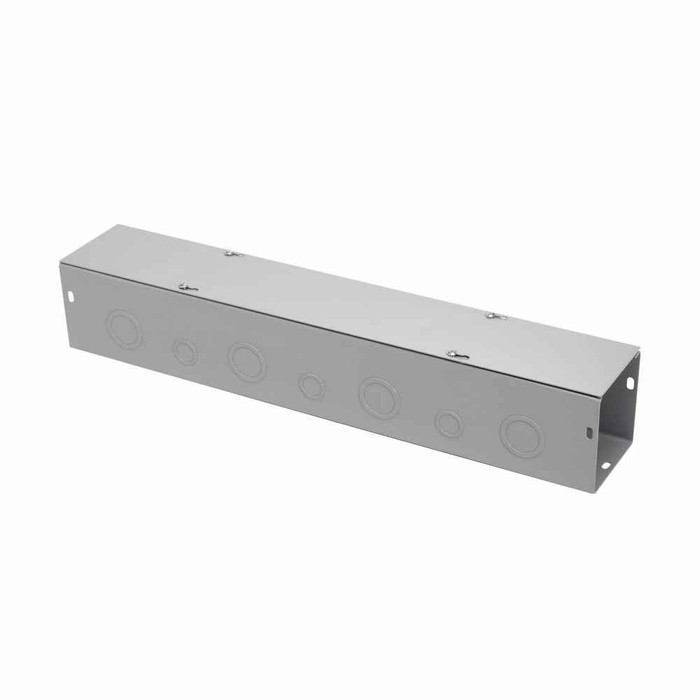

B-Line Eaton series wireway, 4" height, 12" length, 4" width, GGV wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, 1, Galvanize

B-Line Eaton series wireway, 4" height, 12" length, 4" width, GGV wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, 1, Galvanize

(No reviews yet) Write a Review

Model: 4412 GGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$138.09
$105.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 4" height, 12" length, 4" width, GGV wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
4 in
Product Length Depth:
12 in
Product Weight:
3.306 lb
Product Width:
4 in
Special Features:
Cover is secured to the body with plated screws
Department:
Electrical
Product Type:
GGV wireway
Product Details:
GGV wireway

B-LINE 4412 GGV – Frequently Asked Questions

1) What size is the B-Line 4412 GGV wireway and how much does it weigh?
The Eaton B-Line 4412 GGV wireway is a 4 x 4 inch cross section, 12 inches long, and weighs 3.306 lb. That 4 x 4 body is the standard trough size for feeding a small panel or gutter run, and the short 12 inch length is normally used as a nipple or a jog between enclosures rather than a long horizontal run.
2) Is this B-Line 4412 GGV wireway rated for outdoor or wet locations?
No. The 4412 GGV is a NEMA 1 trough, which is indoor, dry location only, with a screw cover and no gasket. For a rooftop, exterior wall, or washdown area you need a NEMA 3R or 4 raintight wireway instead.
3) How does the cover come off on the 4412 GGV wireway, and can I pull wire with it in place?
The cover is screw-on, held to the body with plated screws, so it has to be unfastened to open the trough. Plan on removing it before you pull conductors, then reinstalling the screws. If you want to open a run repeatedly without backing out hardware, look for a hinged or latching cover style instead.
4) How do I mount this B-Line wireway to a wall or strut?
The 4412 GGV mounts through holes in the back of the body, so you fasten it directly to the wall, backboard, or strut with your own hardware. Mounting screws, bolts, or strut nuts are not part of the trough itself, so add them to the order.
5) How many knockouts does the 4412 GGV wireway have and where are they?
There are three knockouts on the top and three on the bottom, which is what lets you drop conduit into the trough from above and feed out the bottom to a panel or device without drilling the enclosure. The ends are open for coupling to adjacent wireway sections.
6) What is the B-Line 4412 GGV wireway made of, and will it corrode in a damp basement or parking garage?
Body and cover are galvanized steel in 16 gauge, finished gray. The galvanizing gives reasonable resistance to incidental moisture and condensation, but it is still a NEMA 1 indoor enclosure. For consistently wet or corrosive areas, specify a raintight or stainless trough rather than this one.
7) Does this Eaton B-Line wireway carry any agency certification for a Canadian job?
Yes, the 4412 GGV is CSA Certified, which is what an inspector in Canada will look for on a wireway submittal.
8) Can I use the 4412 GGV as a nipple between two panels or pull boxes?
That is the usual use for a 12 inch length in a 4 x 4 trough. Both ends are open for coupling, the through holes let you fasten it to the backboard, and the screw cover comes off for the pull. Couplings, connectors, and closing plates for any unused end are ordered separately.
