B-Line Eaton series wireway, 6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$287.30
$281.58

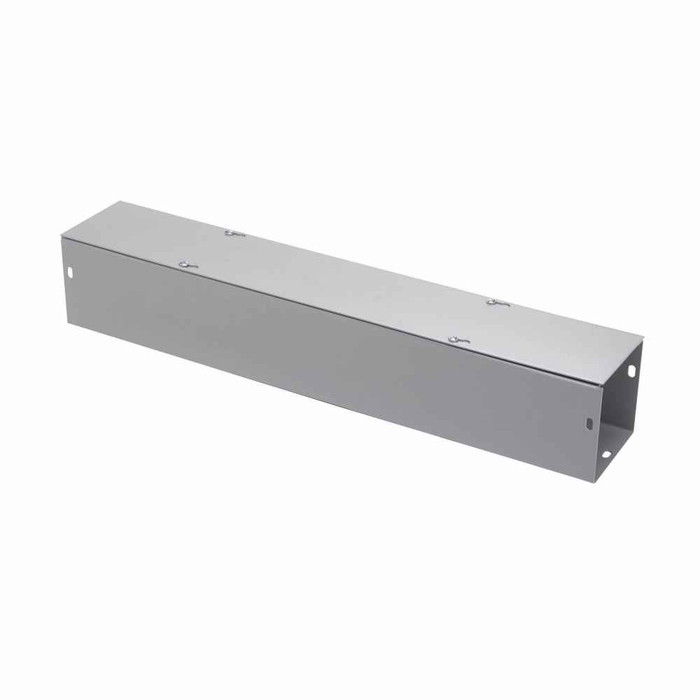

B-Line Eaton series wireway, 6" height, 24" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

B-Line Eaton series wireway, 6" height, 24" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

(No reviews yet) Write a Review

Model: 6624 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$287.30
$281.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 6" height, 24" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
6 in
Product Length Depth:
24 in
Product Weight:
9.638 lb
Product Width:
6 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway
Product Length:
24 in

B-LINE 6624 G NK – Frequently Asked Questions

1) What size is the B-Line 6624 G NK wireway, and how much wire capacity does a 6x6 trough give me?
It's a 6 inch by 6 inch cross section, 24 inches long. That 36 square inch interior is the standard commercial trough size for gathering multiple feeders or branch circuits at a panel or control section, and it pulls far easier than trying to cram conductors through conduit. Bare weight is 9.638 lb.
2) Can I use this B-Line wireway outdoors or in a washdown area?
No. The 6624 G NK is a NEMA 1 enclosure, which is indoor general purpose only, protecting against incidental contact and falling dirt. It is not rain, dust, or washdown tight. For outdoor, damp, or hosedown locations you need a NEMA 3R or NEMA 4 raintight or watertight wireway instead.
3) Does the 6624 G NK wireway come with knockouts for conduit?
No knockouts. The NK in the model designation means the body is blank, so every conduit entry is field drilled or punched exactly where your run lands. If you'd rather have factory openings on the standard pattern, order the knockout version of the same 6x6x24 trough rather than this one.
4) How does the cover come off on this screw cover wireway?
The cover is secured with plated screws along the length, so you remove the hardware to open the trough. It gives you a full open side for laying in conductors, but on a section you expect to revisit often a hinged cover wireway is the faster choice. Screw cover is the usual pick where the trough gets wired once and closed up.
5) How do I mount this B-Line wireway to a wall or strut?
Mounting is through holes in the back of the trough, so it fastens flat to a wall, backplate, or strut with your own hardware. Fasteners are not part of the trough, so pick anchors to suit the substrate and support the 9.638 lb empty weight plus the conductor fill.
6) What gauge steel is the 6624 G NK wireway, and is it certified?
16 gauge steel body and cover, and it's CSA Certified, which matters if you're submitting on a job in Canada or a spec that calls for CSA marking.
7) What is the exact part number to order this 6x6x24 B-Line trough?
Order by Eaton B-Line part number 6624 G NK. The digits read as the cross section and length (6 inch by 6 inch, 24 inch section), G for the screw cover gutter body, NK for no knockouts.
8) Will this wireway match the gray on my existing panels and gutter?
Finish is ANSI 61 gray, the standard gray used across commercial electrical enclosures and switchgear, so it lines up visually with most panelboards and existing B-Line trough on the same wall.
