B-Line Eaton series wireway, 6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$563.16

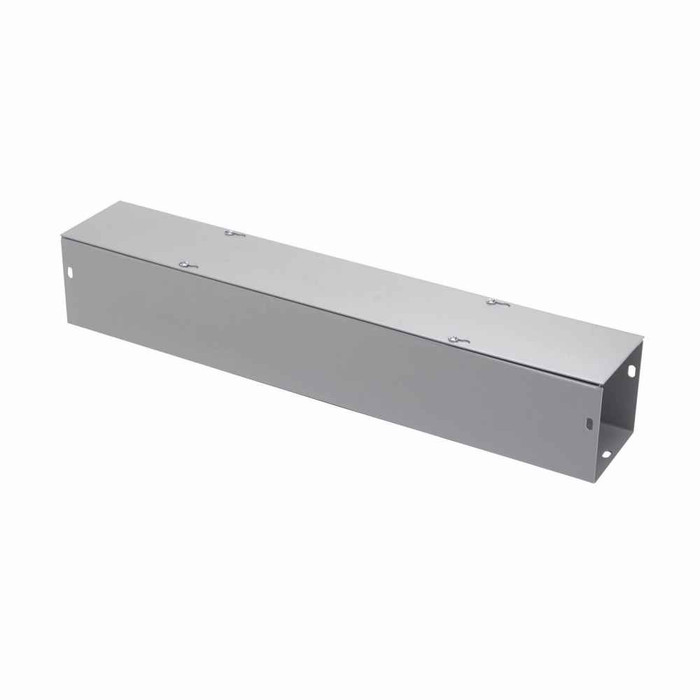

B-Line Eaton series wireway, 6" height, 60" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

B-Line Eaton series wireway, 6" height, 60" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

(No reviews yet) Write a Review

Model: 6660 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$563.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 6" height, 60" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
6 in
Product Length Depth:
60 in
Product Weight:
24.135 lb
Product Width:
6 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 6660 G NK – Frequently Asked Questions

1) What size is the Eaton B-Line 6660 G NK wireway, and how much wire can the cross section hold?
It is a 6 x 6 inch cross section running 60 inches long. That 6 by 6 opening is the usable gutter area for pulling and splicing conductors, and the 60 inch length is a single straight section, so a longer run is built by coupling sections end to end.
2) Does this B-Line wireway come with knockouts for conduit entry?
No. The 6660 G NK is the NK (no knockouts) version, so the body ships solid. Any conduit or cable entry has to be field punched where you want it. If you would rather have factory openings, you need the knockout version of the same size rather than this one.
3) Can this wireway be installed outdoors or in a washdown area?
No. It is a NEMA 1 enclosure, which is general purpose indoor only, intended for dry protected locations. Wet, damp, outdoor, or hose-down environments need a NEMA 3R or 4 raintight wireway instead.
4) How is the B-Line 6660 G NK wireway mounted to a wall or structure?
Mounting is through holes in the back of the body, so it bolts flat to a wall, strut, or backboard with your own fasteners. No mounting hardware, hangers, or strut brackets are included, so specify those separately for the run.
5) Is the B-Line 6660 wireway cover hinged or screw-on?
Screw cover. The cover is secured with plated screws along the length, which means you unbolt the cover to get at the conductors rather than swinging it open. On a ceiling or high wall run that is a two-hand job, so plan access accordingly.
6) What gauge steel is this wireway, and what is the finish?
16 gauge steel, painted ANSI 61 gray. That is the standard gray used on most industrial panelboards and control enclosures, so a run of this wireway matches adjacent gear without field painting.
7) Is the Eaton B-Line 6660 G NK wireway certified for use in Canada?
It is CSA Certified, which is what an inspector on a Canadian job will look for. Note that the certification listed for this part is CSA; do not substitute it into a spec calling for a different listing without checking the drawing.
8) Should I use a screw cover wireway or a hinged cover one for a control panel gutter?
Screw cover, like the 6660 G NK, is the normal choice for runs that get opened rarely, and the plated screws hold the cover tight along the whole 60 inch length. Hinged cover is worth the extra cost only where you are into the gutter often for troubleshooting or adds. For a feeder gutter or a straight wire pull between panels, screw cover is what gets specified.
