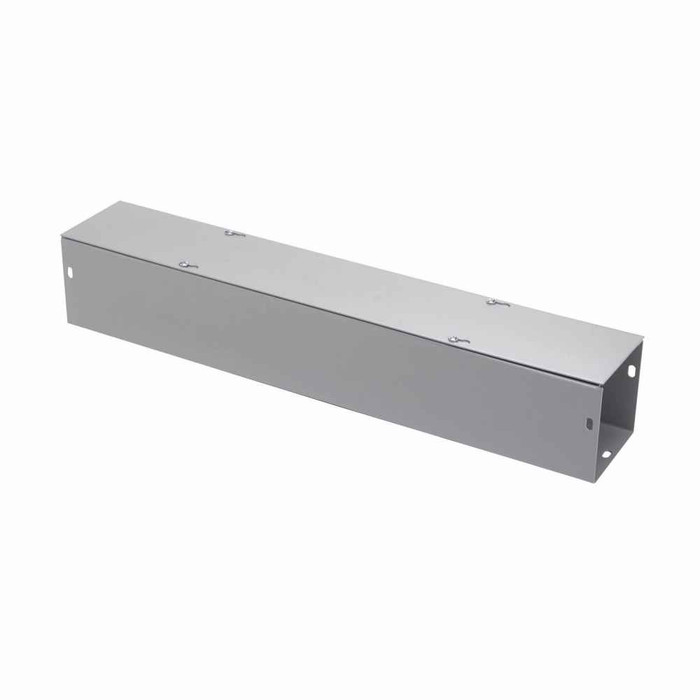

Eaton B-Line series wireway, 8" height, 48" length, 8" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 14 gauge
Manufacturer Resources
Product Specs
- Certifications:
- CSA Certified
- Closure Type:
- Plated screws
- Finish Color:
- Gray
- Material Thickness:
- 14 gauge
- Mounting Method:
- Thru holes
- Product Height:
- 8 in
- Product Length Depth:
- 48 in
- Product Weight:
- 27.102 lb
- Product Width:
- 8 in
- Special Features:
- Cover is secured with plated screws
- Department:
- Electrical
- Product Type:
- GGV NK wireway
- Product Details:
- GGV NK wireway
B-LINE 8848 GGV NK – Frequently Asked Questions
1) Is the B-Line 8848 GGV NK wireway rated for outdoor or wet locations?
No. The 8848 GGV NK is a NEMA 1 wireway, which is indoor, general purpose only. It gives protection against incidental contact and falling dirt but is not sealed against rain, dust, or washdown. For an outdoor run, exterior wall, or damp area you need a NEMA 3R raintight wireway instead.
2) Does this B-Line wireway come with knockouts for conduit?
No knockouts. The 8848 GGV NK is the NK (no knockouts) version, so the body is blank and you drill or punch your own holes wherever your conduit lands. If you want factory knockouts on standard centers, order the knockout version of the GGV trough rather than the NK.
3) How does the cover come off on the 8848 GGV NK, and can one person open it on a ceiling run?
It is a screw cover, secured with plated screws along the flange. That means you back out every screw to open a section, which is slower than a hinged cover but keeps the cover positively fastened and is what most inspectors expect on a gutter. On an overhead run, plan for a second set of hands or a way to support the cover while the last screws come out.
4) Is this B-Line wireway certified for use on a commercial job?
The 8848 GGV NK is CSA Certified. That is the listing mark to cite on a Canadian job or a spec calling for certified wiring trough; a NEMA 1 enclosure type is also called out for the product.
5) What gauge steel and finish is the B-Line 8848 wireway?
14 gauge galvanized steel, finished gray. The galvanized base plus the gray finish and plated screws is the standard indoor commercial combination, and 14 gauge is heavy enough that the trough holds its shape when you are pulling conductors through a long run rather than oil-canning.
