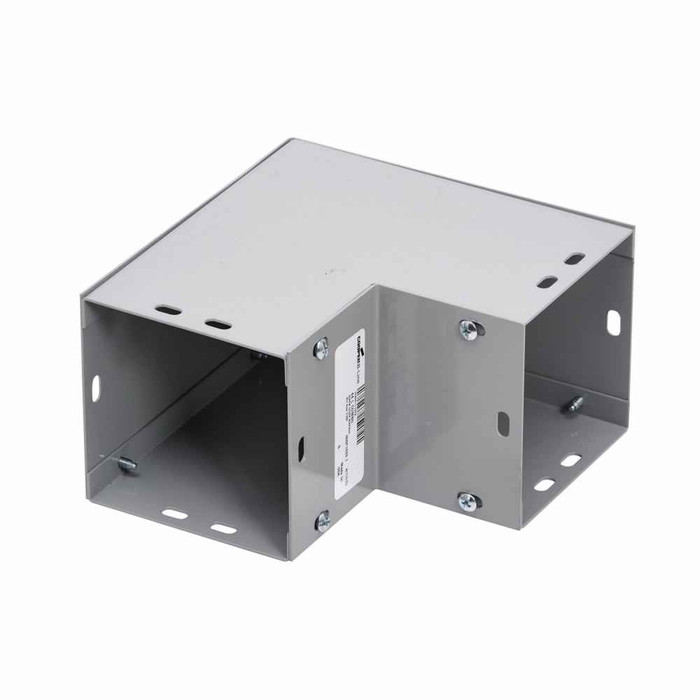

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, combo opening, NEMA 1, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 10.09 in
- Product Weight:
- 5.922 lb
- Product Width:
- 6 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, combo opening
- Product Details:
- 90° elbow, combo opening
- Product Material:
- Steel
B-LINE 66 L COMBO – Frequently Asked Questions
1) Will the B-Line 66 L COMBO elbow fit my 6x6 wireway run?
Yes, the 66 L COMBO is sized for 6 inch by 6 inch lay-in wireway, with a 6 inch height and 6 inch width at the openings. Overall it runs 10.09 inches on the length/depth dimension, so allow that much space at the corner before the next trough section starts.
2) Is this B-Line elbow rated for outdoor or wet locations?
No. It is a NEMA 1 enclosure rating, which is indoor, general purpose, dust and falling dirt only. For a wet or washdown area or anywhere exposed to weather you need a NEMA 3R or 4 gasketed wireway fitting instead, not this one.
3) What does "combo opening" mean on this wireway 90 degree elbow?
Combo opening means the elbow is built to serve either orientation of a 90 degree turn in the run rather than being a dedicated left-hand or right-hand fitting. That is why one part number, 66 L COMBO, covers the corner instead of you having to specify handing.
4) What finish is the B-Line 6x6 wireway elbow, and will it match existing gray wireway?
Steel with an ANSI 61 gray painted finish, which is the standard gray used across B-Line lay-in wireway trough and fittings, so it matches an existing ANSI 61 gray run.
5) Do I have to pull wire through this elbow or can I lay it in?
It is a lay-in fitting, so the cover comes off and conductors drop straight into the corner rather than being pulled around the bend. That is the practical reason to use a wireway elbow at a turn instead of conduit and an LB.
6) How heavy is this 6 inch wireway elbow for overhead support planning?
About 5.922 lb bare. Add your conductors and the trough sections either side when you lay out hangers or trapeze supports at the corner.
