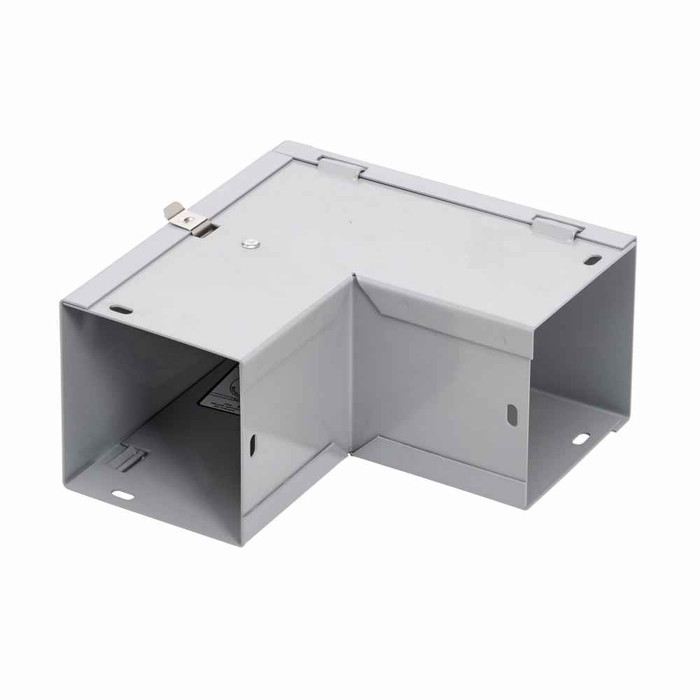

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, outisde opening, NEMA 1, Steel, ANSI 61 gray painted, 3" X 3"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 3 in
- Product Length Depth:
- 3 in
- Product Weight:
- 2.198 lb
- Product Width:
- 6.366 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, outisde opening
- Product Details:
- 90° elbow, outisde opening
- Product Material:
- Steel
- Product Length:
- 3 in
B-LINE 33 FL OUT – Frequently Asked Questions
1) Will the B-Line 33 FL OUT elbow fit 3 inch by 3 inch lay-in wireway?
Yes. The Eaton B-Line 33 FL OUT is sized for 3 in by 3 in wireway, with a 3 in height and 3 in length/depth on the fitting itself. It is a lay-in wiring method fitting, so it mates to lay-in style trough of the same 3x3 cross section. It will not adapt a 3x3 run to 4x4 or 6x6 wireway.
2) What does "outside opening" mean on a 90 degree wireway elbow, and how do I know if I need it instead of an inside elbow?
An outside opening 90 degree elbow turns the wireway run with the access opening on the outside of the bend, so the cover comes off on the long radius face. That is what you want when the turn puts the inside of the corner tight to a wall, panel, or another run and you could not get a hand or a cover in there. If your corner opens the other way, you need the inside opening version instead. The 33 FL OUT is the outside opening configuration.
3) Is the Eaton B-Line 33 FL OUT elbow rated for outdoor or wet locations?
No. It is a NEMA Type 1 enclosure rating, which is indoor, general purpose, dry location only. The ANSI 61 gray painted steel is not a substitute for a raintight rating. For an outdoor run you need Type 3R wireway and matching 3R fittings.
4) Is this B-Line wireway elbow UL Listed for an inspected commercial job?
The 33 FL OUT elbow is UL Listed. Combined with the NEMA Type 1 rating, it is the usual specification for indoor commercial and industrial lay-in wireway runs where the inspector wants listed components throughout the raceway.
5) What material and finish is the 3 x 3 B-Line lay-in wireway elbow, and will it match my existing trough?
Steel with an ANSI 61 gray painted finish, which is the standard gray used across Eaton B-Line wireway and most switchgear, so it matches typical existing 3x3 lay-in runs and panel finishes. Painted steel, not stainless, so keep it out of washdown or corrosive areas.
6) How much does the B-Line 33 FL OUT elbow weigh and how much room does the bend take up?
It weighs 2.198 lb and the fitting measures 6.366 in across its width, with 3 in height and 3 in length/depth matching the wireway section. Allow for that 6.366 in dimension when you lay out the corner against a wall or beside a panel, because the elbow is wider than the 3 in trough it connects.
7) What part number do I order for the B-Line 3 x 3 outside opening 90 degree wireway elbow?
The manufacturer part number is 33 FL OUT from Eaton B-Line. Ordering note: the "OUT" is what identifies it as the outside opening version, so confirm the corner geometry before you order, since the inside opening elbow carries a different number.
