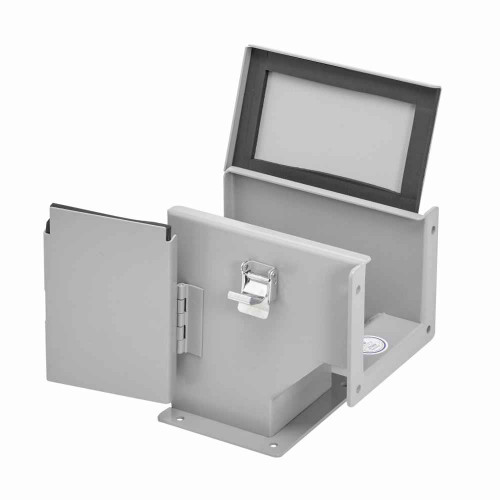

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, outisde opening, NEMA 12, Steel, ANSI 61 gray painted finish
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 9.44 in
- Product Weight:
- 13.847 lb
- Product Width:
- 12 in
- Special Features:
- NEMA12
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, outisde opening
- Product Details:
- 90° elbow, outisde opening
- Product Material:
- Steel
B-LINE 126-12LE9C – Frequently Asked Questions
1) Will the B-Line 126-12LE9C elbow fit a 12 x 6 wireway run?
Yes. The 126-12LE9C is sized for lay-in wireway with a 12 in width and 6 in height, and it measures 9.44 in on the length/depth axis. If your trough is a different cross section (for example 4 x 4 or 6 x 6), you need the elbow built for that size instead.
2) What does "outside opening" mean on a 90 degree wireway elbow, and how do I know if that is the one I need?
On a 90 degree wireway elbow the cover opening is on either the outside or the inside of the turn. The 126-12LE9C is the outside opening version, so the removable cover faces the outer radius of the bend. Sight down your run: if the trough covers on both legs face away from the corner, the outside opening elbow keeps the cover line continuous so you can still lay conductors in. If the covers face into the corner, you want the inside opening elbow.
3) Is this wireway elbow rated for a dusty or drip environment?
It is built to NEMA 12, which covers indoor protection against falling dirt, circulating dust, lint and dripping non-corrosive liquids. That is the usual rating for plant floors and mechanical rooms. It is not a NEMA 3R or 4X part, so for outdoor, washdown, or corrosive locations use a wireway system rated for those conditions.
4) Is the Eaton B-Line 126-12LE9C elbow UL Listed for an inspected installation?
Yes, it is UL Listed. That is the fitting an inspector looks for when the wireway run is part of a permitted job.
5) Will this elbow match the gray wireway already installed in our facility?
The finish is ANSI 61 gray painted over steel, which is the standard gray used across Eaton B-Line wireway trough and fittings as well as most industrial control enclosures. If your existing run is ANSI 61 gray, the elbow will read as the same color.
6) Do I have to pull wire through this elbow, or can conductors be laid in?
Conductors lay in. It is a lay-in fitting with a removable cover, so you drop cable into the trough through the corner instead of fishing it around the bend. That is the practical reason to use a wireway elbow rather than conduit sweeps on a large multi-conductor run.
7) How heavy is this 12 inch wireway elbow, and does one person need help hanging it?
It weighs 13.847 lb. A single installer can handle it, but because it is a steel 12 x 6 corner fitting that has to line up with two trough sections at once, plan on supporting both legs (a strut trapeze or wall bracket at each side of the corner) rather than letting the elbow carry the run.
