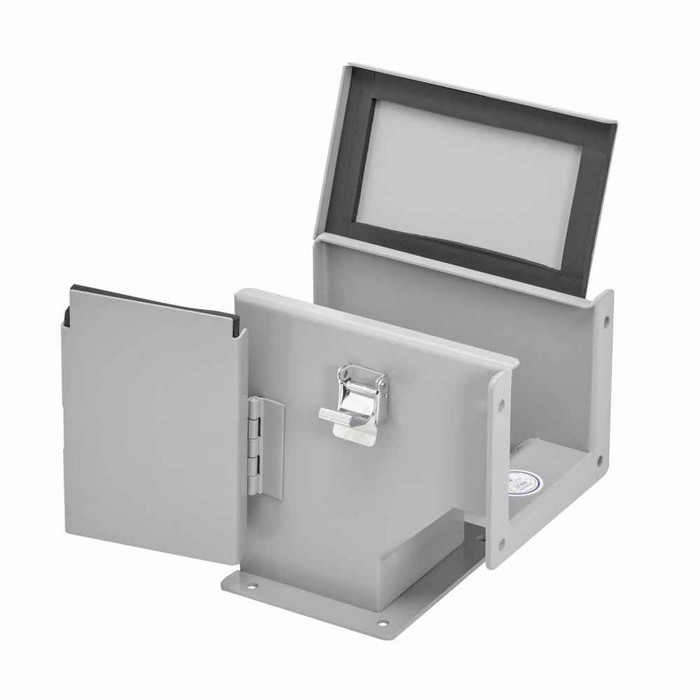

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, outisde opening, NEMA 12, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 9.44 in
- Product Weight:
- 9.455 lb
- Product Width:
- 6 in
- Special Features:
- NEMA12
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, outisde opening
- Product Details:
- 90° elbow, outisde opening
- Product Material:
- Steel
- Product Length:
- 9.44 in
B-LINE 66-12LE9C – Frequently Asked Questions
1) Will the B-Line 66-12LE9C elbow fit 6 x 6 wireway?
Yes. The 66-12LE9C is sized for 6 inch by 6 inch wireway, with a 6 in height and 6 in width, so it mates to standard 6x6 lay-in trough runs. Overall length/depth of the fitting is 9.44 in, which is the dimension to allow for when you lay out the turn against a wall or panel.
2) What does "outside opening" mean on a 90 degree wireway elbow?
On the 66-12LE9C, the outside opening means the removable cover is on the outer face of the 90 degree turn, so you pull the cover off the long side of the corner to lay conductors in. If your run turns the other way and access is easier from the inside of the corner, you want the inside-opening version instead. Pick by which face you can physically reach once the wireway is mounted.
3) Is this wireway elbow rated for a dusty or dripping industrial area?
The 66-12LE9C carries a NEMA 12 rating, which covers indoor use against falling dirt, circulating dust, lint and dripping non-corrosive liquids. It is not a NEMA 3R or 4X outdoor or washdown fitting. For it to hold that rating, the rest of the run and the gasketed covers have to be NEMA 12 as well.
4) Is the B-Line 66-12LE9C UL Listed?
Yes, it is UL Listed, which is what an electrical inspector on a commercial or institutional job will look for on a wireway fitting.
5) What finish is the Eaton B-Line wireway elbow and will it match my existing trough?
Steel with an ANSI 61 gray painted finish, the standard gray used across Eaton B-Line wireway and most industrial control gear, so it blends with an existing ANSI 61 run. Painted steel is an indoor finish; it is not stainless or galvanized for corrosive areas.
6) How heavy is this 6x6 wireway elbow for overhead mounting?
About 9.455 lb for the steel 6x6 elbow. Light enough for one person to hold at a corner, but add it to your support calculation if the turn is unsupported between hangers.
