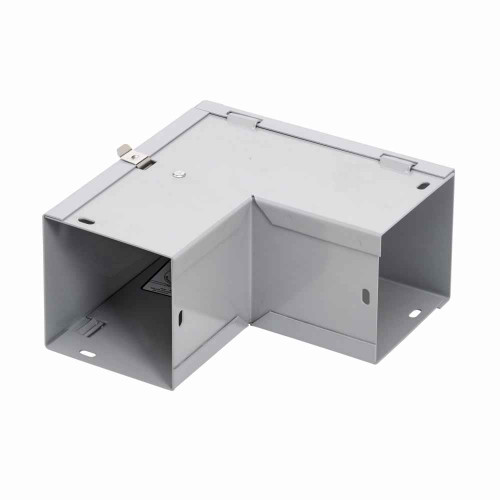

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, sweep opening, NEMA 1, Steel, ANSI 61 gray painted, 3" X 3"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 3 in
- Product Length Depth:
- 6.09 in
- Product Weight:
- 2.589 lb
- Product Width:
- 3 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, sweep opening
- Product Details:
- 90° elbow, sweep opening
- Product Material:
- Steel
B-LINE 33 L SWEEP – Frequently Asked Questions
1) Will the B-Line 33 L SWEEP elbow fit 3 inch by 3 inch wireway?
Yes. The Eaton B-Line 33 L SWEEP is sized for 3 in x 3 in wireway trough, with a 3 in height and 3 in width at the openings. It will not mate with 4x4, 6x6 or 8x8 trough, so match the elbow to the trough size you already have running.
2) Is this B-Line wireway elbow rated for outdoor or wet locations?
No. The 33 L SWEEP elbow is a NEMA Type 1 enclosure rating, which is indoor, dry location use only. For outdoor, damp or washdown areas you need a NEMA 3R or 4 rated wireway and matching fittings.
3) What is a sweep opening 90 degree wireway elbow used for versus a standard elbow?
A sweep elbow turns a run of wireway 90 degrees with a gradual radius rather than a sharp corner, so conductors bend on a larger arc and are easier to pull and dress. The 33 L SWEEP is a lay-in design, meaning the cover comes off and the wire drops in from the side instead of being fished through. Use it where a run has to change direction and you still want easy access to the conductors.
4) Is the Eaton B-Line 33 L SWEEP elbow UL Listed?
Yes, the 33 L SWEEP wireway elbow is UL Listed, which is what most inspectors and spec writers look for on a lay-in wireway system.
5) How much space do I need to allow for a 3x3 sweep elbow in the run?
The 33 L SWEEP measures 6.09 in on its length/depth dimension with 3 in openings, so plan roughly six inches of clearance off the corner in each direction before the next length of trough starts. It weighs 2.589 lb, light enough to hang on standard wireway supports.
6) What finish and material is the B-Line 33 L SWEEP elbow, and will it match existing gray wireway?
Steel construction with an ANSI 61 gray painted finish, the same standard gray used across most commercial wireway and enclosure lines, so it blends with existing B-Line lay-in trough runs and typical panel gear.
How fast can I get the B-LINE 33 L SWEEP delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE 33 L SWEEP come with a warranty?
Absolutely. The B-LINE 33 L SWEEP is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE 33 L SWEEP?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
