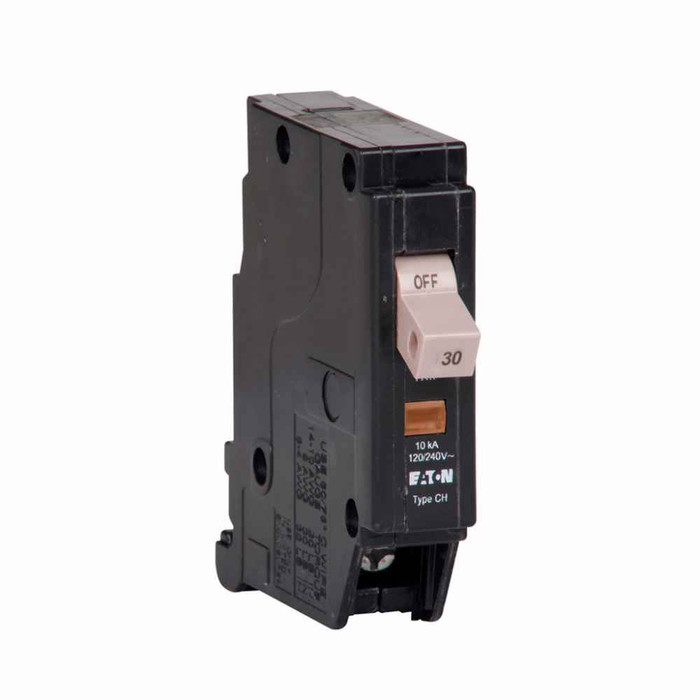

Eaton CHF Series Single-Pole Circuit Breaker 30A 120/240V with Trip Indication

Eaton CHF Series Single-Pole Circuit Breaker 30A 120/240V with Trip Indication

Professional HACR-Rated Circuit Protection for Type CH Loadcenters

The Eaton CHF Series circuit breaker delivers reliable single-pole protection with 30A capacity and 120/240V rating for Type CH loadcenters. This HACR-rated breaker features trip indication and 10 kAIC interrupt rating, providing professional-grade circuit protection in a compact 3/4-inch standard design with UL 489 certification.

Professional Features & Benefits

• 30A Amperage Rating: Provides robust circuit protection for medium-load applications requiring reliable overcurrent protection.
• HACR Rated Compliance: Meets heating, air conditioning, and refrigeration requirements for motor load applications and HVAC systems.
• Trip Flag Indication: Visual trip indication allows quick identification of tripped circuits for faster troubleshooting and maintenance.
• 10 kAIC Interrupt Rating: Delivers dependable fault current interruption capability for residential and light commercial applications.
• UL 489 Certification: Ensures compliance with safety standards for molded case circuit breakers and reliable performance.
• Single-Pole Design: Compact configuration requires only one 2/4-inch space in the panel for efficient loadcenter utilization.

Technical Specifications

• Amperage Rating: 30 A
• Catalog Notes: HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication.
• Certifications: UL 489
• Circuit Breaker Type: CHF
• Compliances: HACR Rated
• Interrupt Rating: 10 kAIC
• Main Circuit Breaker: CHF
• Number Of Poles: Single-pole
• Product Details: Type CHF 3/4-Inch standard circuit breaker
• Product Height: 2.6 in
• Product Length Depth: 3.2 in
• Product Weight: .3 lb
• Product Width: .7 in
• Trip Type: Trip flag
• Used With: Type CH Loadcenters
• Voltage Rating: 120/240 V
• Wire Size: (2) #14-10 AWG Cu/Al

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels and distribution systems
• Light commercial loadcenters and electrical installations
• HVAC system circuit protection with HACR rating compliance
• Motor load applications requiring specialized overcurrent protection
• Retrofit and replacement applications in Type CH loadcenters
• Professional electrical service and maintenance operations

Why Choose Eaton Quality?

Eaton circuit breakers provide dependable protection with UL 489 certification and proven performance in residential and commercial applications. The CHF series combines compact design with professional-grade features including trip indication and HACR rating for versatile electrical protection needs.
