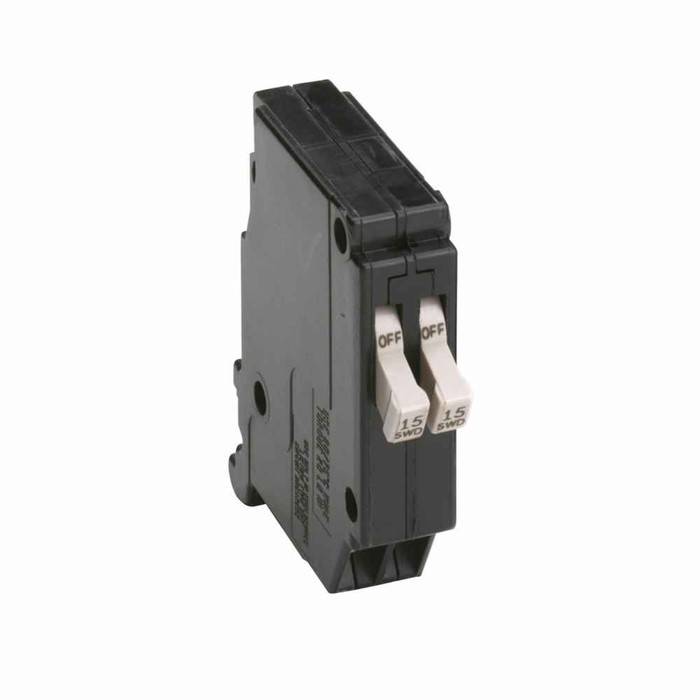

Eaton CHT Series – Twin Breaker (½-slot) – Plug-On, 120/240 V, 10 kAIC

Eaton CHT Series Twin Circuit Breaker 15A 120/240V Single-Pole Plug-On Half-Slot Design

(No reviews yet) Write a Review

Model: CHT1520

In Stock (leaves warehouse same day if ordered before 3pm ET)

$72.36
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton CHT Series Twin Circuit Breaker 15A 120/240V Single-Pole Plug-On Half-Slot Design

Professional Half-Slot Twin Breaker for Space-Efficient Panel Installation

The Eaton CHT Series Twin Circuit Breaker delivers reliable 15-amp circuit protection in a space-saving half-slot design for 120/240V applications. This single-pole plug-on breaker features a 10 kAIC interrupt rating and switching duty performance, making it ideal for residential and light commercial electrical panels where space optimization is essential.

Professional Features & Benefits

  • 15-Amp Rating: Provides reliable overcurrent protection for standard residential and commercial circuits with consistent performance.
  • Twin Half-Slot Design: Maximizes panel space utilization by fitting two circuits in a single breaker slot for efficient installation.
  • 10 kAIC Interrupt Rating: Delivers robust fault current interruption capability for enhanced electrical system safety and protection.
  • Plug-On Mounting: Enables quick and secure installation without additional hardware for streamlined panel assembly.
  • 120/240V Compatibility: Supports standard residential and light commercial voltage requirements with reliable switching performance.
  • HCAR Rated Performance: Meets high current arc resistance standards for enhanced safety and durability in demanding applications.
  • Clamshell Packaging: Provides secure product protection and convenient handling during storage and installation.

Technical Specifications

  • Circuit Breaker Type: CH
  • Frequency Rating: 50-60 Hz
  • Interrupt Rating: 10 kAIC
  • Main Circuit Breaker: CHT
  • Mounting Method: Plug-on
  • Number Of Poles: Single-pole
  • Performance Rating: Switching duty rated, HCAR rated
  • Special Features: Clamshell pack
  • Used With: Type CH Loadcenters
  • Voltage Rating: 120/240 V
  • Wire Size: #14-8 AWG Cu/Al

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Residential electrical panels requiring space-efficient circuit protection
  • Light commercial facilities with standard voltage requirements
  • Multi-unit properties needing reliable overcurrent protection
  • Professional offices with standard electrical loads
  • Retail establishments requiring dependable circuit breaker performance
  • Renovation projects where panel space optimization is critical

Why Choose Eaton Quality?

Eaton CHT Series breakers deliver proven reliability with switching duty and HCAR rated performance for demanding electrical applications. The robust 10 kAIC interrupt rating and compatibility with Type CH Loadcenters ensure dependable protection and seamless integration with existing electrical systems.

Manufacturer Resources

Product Specs

Circuit Breaker Type:
CH
Frequency Rating:
50-60 Hz
Interrupt Rating:
10 kAIC
Main Circuit Breaker:
CHT
Mounting Method:
Plug-on
Number Of Poles:
Single-pole
Performance Rating:
Switching duty rated, HCAR rated
Special Features:
Clamshell pack
Used With:
Type CH Loadcenters
Voltage Rating:
120/240 V
Wire Size:
#14-8 AWG Cu/Al
Department:
Electrical
Product Group:
Circuit Breakers
Product Type:
Circuit Breaker
