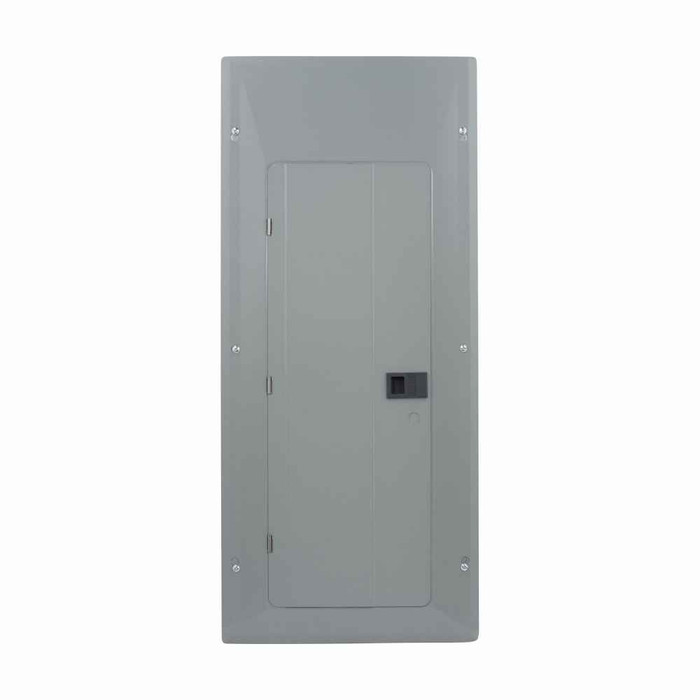

Eaton Convertible MLO Loadcenter 200A Single-Phase 120/240V with Factory Installed Lugs
Professional electrical distribution with convertible design flexibility
The Eaton Convertible MLO Loadcenter delivers reliable 200A single-phase electrical distribution at 120/240V with factory installed lugs for professional installations. This metallic enclosure loadcenter features aluminum bus material construction with insulated/bondable split neutral design and 25 kAIC interrupt rating for dependable service in residential and commercial applications.
Professional Features & Benefits
- 200A Rating: Provides substantial electrical capacity for comprehensive power distribution in demanding applications
- Single-Phase 120/240V: Standard residential and light commercial voltage configuration ensures broad compatibility
- Convertible Design: MLO configuration with CSR main circuit breaker capability offers installation flexibility
- 25 kAIC Interrupt Rating: High fault current interruption capacity ensures reliable protection under demanding conditions
- Aluminum Bus Material: Lightweight yet durable bus construction provides excellent conductivity and corrosion resistance
- Factory Installed Lugs: Pre-installed lugs reduce installation time and ensure proper connections
- Metallic Enclosure: Robust construction provides superior protection and electromagnetic shielding
Technical Specifications
- Amperage Rating: 200 A
- Bus Material: Aluminum
- Catalog Notes: The maximum rating of the panel is the main breaker rating when used as service entrance equipment.
- Cover Type: Cover included
- Enclosure Material: Metallic
- Interrupt Rating: 25 kAIC
- Main Circuit Breaker: CSR
- Mounting Method: Combination
- Number Of Poles: Single-pole
- Phase: Single-phase
- Product Width: 14.31 in
- Used With: Type BR 1-inch breakers
- Voltage Rating: 120/240 V
Professional Applications
- Residential main electrical panels and service entrance applications
- Light commercial facilities requiring 200A single-phase distribution
- Multi-unit residential properties and apartment buildings
- Professional offices and retail establishments
- Workshop and garage electrical distribution systems
- Renovation and upgrade projects requiring convertible panel design
Why Choose Eaton Quality?
Eaton loadcenters provide proven reliability with robust metallic enclosure construction, high 25 kAIC interrupt rating, and professional-grade aluminum bus material. The convertible MLO design with CSR main circuit breaker compatibility ensures long-term flexibility while factory installed lugs streamline professional installation processes.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200A
- Bus Material:
- Aluminum
- Cover Type:
- Cover included
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 25 kAIC
- Main Circuit Breaker:
- CSR
- Mounting Method:
- Combination
- Number Of Poles:
- Single-pole
- Phase:
- Single-phase
- Product Width:
- 14.31 in
- Used With:
- Type BR 1-inch breakers
- Voltage Rating:
- 120/240V
- Department:
- Electrical
- Product Type:
- Load Center
- Product Group:
- Power Distribution
- Product Subgroup:
- Panelboards & Load Centers
Eaton BRP40E200G – Frequently Asked Questions
1) Does the Eaton 200A convertible loadcenter come with a main breaker, or is it main lug only?
It ships as main lug only (MLO) with the lugs factory installed, so there is no main breaker in the box. It is convertible: a CSR main circuit breaker can be added to turn it into a main breaker panel. One thing to plan for on a service entrance job, the maximum rating of the panel becomes the main breaker rating once it is used as service entrance equipment.
2) What breakers fit an Eaton BR loadcenter like this 200A MLO panel?
Type BR 1-inch breakers. It will not take Eaton CH breakers or another brand's classified-only line, so if you are standardizing a building, stock BR. The number of 1-inch spaces depends on which box you order: 8, 30, 40, or 60 spaces, with maximum circuit counts of 16, 60, 80, or 120 when tandems are used.
3) What size service conductors will the lugs on this Eaton 200A panel accept?
The main lugs take #1 through 300 kcmil, copper or aluminum. That covers the usual 200A service conductor choices, including 2/0 copper or 4/0 aluminum SER. Lugs are factory installed, so no separate lug kit is needed.
4) Is a 25 kAIC rating enough for my service, or do I need a higher interrupt rating?
This loadcenter is rated 25 kAIC. That covers most residential and light commercial services fed from a typical utility transformer. If your utility or engineer has calculated available fault current above 25 kA at the panel, which happens on larger transformers or short service runs in commercial buildings, you need equipment with a higher short circuit current rating instead.
5) Will this Eaton loadcenter work on a 120/240V single-phase three-wire service?
Yes, it is built for single-phase 120/240 V, three-wire service with an insulated and bondable split neutral. The split neutral lets you bond the neutral to the can when the panel is service equipment, or keep it isolated and land a separate ground bar when it is used as a subpanel. It is not suitable for three-phase distribution.
6) Which box size should I order, and how many circuits do I get?
Four box sizes are offered: X6, X8, X10, and X11R. Across them you get 8, 30, 40, or 60 full-size 1-inch spaces, with maximum circuit counts of 16, 60, 80, and 120 once tandem breakers are used in the spaces that allow them. Pick by the space count you need for the panel schedule, not by the maximum, since the higher number only applies when tandems are installed.
7) Can this Eaton 200A loadcenter be surface mounted, or does it have to go in the wall?
Mounting is combination type, so the same can works flush in a stud wall or surface mounted on block or finished wall. The enclosure is metallic and a cover is included. Panel width is 14.31 inches, which clears a standard 16-inch on-center stud bay for recessed work.
8) Is the bus copper or aluminum on this panel?
Aluminum bus. For a 200A residential or light commercial panel that is the standard construction and the breakers and lug terminations are rated for it. If your specification calls out copper bus specifically, this is not the panel that meets it.
