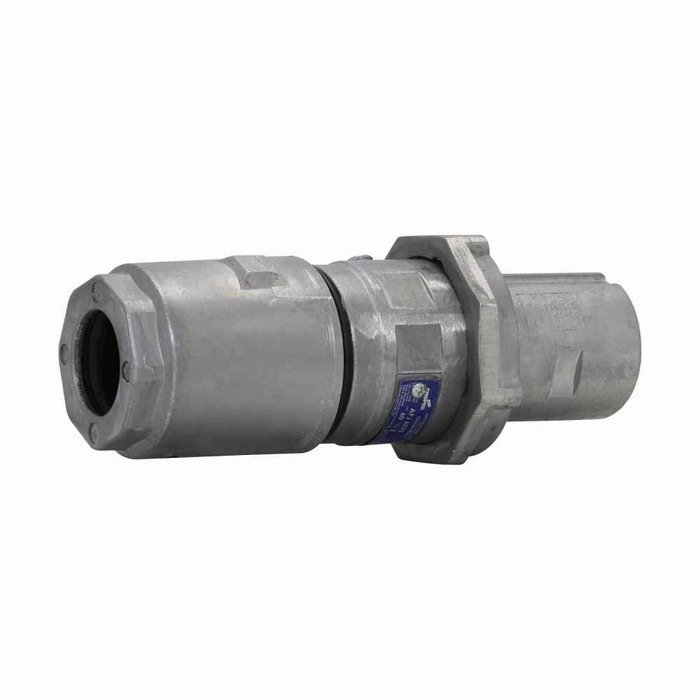

Crouse-Hinds Arktite APJ Industrial Plug 60A 600V Copper-Free Aluminum NEMA 4
Heavy-Duty Industrial Power Connection Solution
The Crouse-Hinds Arktite APJ Industrial Plug delivers reliable 60A power connections for demanding industrial applications. Featuring copper-free aluminum construction and NEMA 4 rating, this industrial-grade plug provides dependable performance in ordinary and non-hazardous locations with 600 Vac/250 Vdc voltage capability and Style 2 grounding configuration.
Professional Features & Benefits
- 60A Amperage Rating: Handles high-current industrial loads with reliable power delivery for demanding equipment and machinery applications.
- 600 Vac/250 Vdc Voltage Rating: Versatile voltage compatibility supports both AC and DC industrial power systems with professional-grade electrical performance.
- NEMA 4 Enclosure Rating: Weather-resistant construction protects against dust, dirt, and water ingress for reliable outdoor and harsh environment operation.
- Copper-Free Aluminum Construction: Durable lightweight material provides excellent conductivity while reducing installation weight and material costs.
- Style 2 Grounding Configuration: Professional grounding system ensures safe electrical connections and compliance with industrial safety standards.
- 50 to 400 Hz Frequency Rating: Wide frequency range compatibility accommodates various industrial power systems and specialized equipment requirements.
- NEC/CEC Standards Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for professional installation confidence.
Technical Specifications
- Amperage Rating: 60A
- Area Classification: Ordinary/Non-Hazardous Locations
- Frequency Rating: 50 to 400 Hz
- Grounding Type: Style 2
- Nema Rating: 4
- Product Material: Copper-free aluminum
- Standards Type: NEC/CEC
- Voltage Rating: 600 Vac/250 Vdc
Professional Applications
- Industrial Manufacturing Facilities
- Commercial Power Distribution
- Heavy Equipment Connections
- Outdoor Industrial Installations
- Machinery Power Interfaces
- Professional Maintenance Operations
- Temporary Power Distribution
Why Choose Crouse-Hinds Quality?
Crouse-Hinds delivers proven industrial electrical solutions with NEMA 4 weather protection and NEC/CEC compliance. The copper-free aluminum construction provides long-lasting durability while the Style 2 grounding ensures safe, professional installations in demanding industrial environments.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 60A
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Frequency Rating:
- 50 to 400 Hz
- Grounding Type:
- Style 2
- Nema Rating:
- 4
- Product Material:
- Copper-free aluminum
- Standards Type:
- NEC/CEC
- Voltage Rating:
- 600 Vac/250 Vdc
- Department:
- Electrical
- Product Type:
- Pin and Sleeve Plug
- Product Subgroup:
- Pin & Sleeve Devices
- Product Group:
- Wiring Devices
Crouse-Hinds APJ6485 – Frequently Asked Questions
1) Which Crouse-Hinds Arktite APJ plug do I order for a 3-phase 480V motor connection with a ground?
For a 3-phase feed plus an equipment ground you want the 4-wire, 5-pole version, APJ6585. The 3-wire, 4-pole APJ6485 covers three current-carrying conductors plus ground on a 3-phase system without neutral, and the 2-wire, 3-pole APJ6385 is for single-phase with ground. All three are rated 60A at 600 Vac/250 Vdc, so 480V 3-phase is within rating.
2) What does Style 2 grounding mean on the Arktite APJ plug, and does it matter for matching a receptacle?
Style 2 is the grounding configuration of the plug, and it has to match the Arktite receptacle or connector body it mates with. Mixing grounding styles will not interchange, so when you add receptacles to an existing APJ installation, specify Style 2 along with the same 60A rating and the same pole/wire count as your plug.
3) Is the Crouse-Hinds APJ plug suitable for outdoor use where it gets rained on?
It carries a NEMA 4 rating, which means protection against dust, dirt and water ingress, so it holds up outdoors and in washdown-adjacent areas. The body is copper-free aluminum, which is what you want where corrosion and sparking matter. It is still a non-hazardous-location device.
4) Will a 60A Arktite APJ plug work on a 400 Hz power system for aircraft ground support?
Yes. The APJ plug is rated 50 to 400 Hz, so it covers standard 50/60 Hz utility power and 400 Hz systems used in aviation ground support and specialized equipment, up to 600 Vac.
5) Can I use the APJ 60A plug on a DC system?
Yes, up to 250 Vdc. The plug is rated 600 Vac/250 Vdc, so DC applications are limited to 250 volts even though the AC rating is 600.
