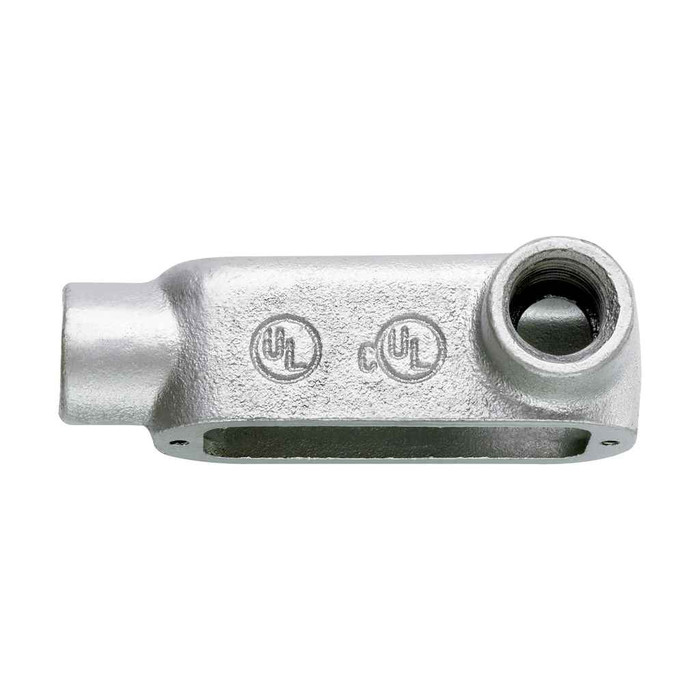

Eaton Crouse-Hinds Condulet® Form 5 Outlet Bodies - Malleable-Iron Type LR Threaded Series

Crouse-Hinds Condulet Form 5 LR Malleable Iron Threaded Outlet Body for Ordinary Locations

(No reviews yet) Write a Review

Model: CRS-LR300M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Condulet Form 5 LR Malleable Iron Threaded Outlet Body for Ordinary Locations

Professional electrical conduit routing solution for reliable connections

The Crouse-Hinds Condulet Form 5 LR Threaded Outlet Body delivers professional-grade conduit routing and connection capabilities with durable malleable iron construction. Designed for ordinary/non-hazardous locations, this LR-shaped outlet body provides reliable electrical connections while meeting NEC/CEC standards for professional installations.

Professional Features & Benefits

  • Malleable Iron Construction: Provides exceptional durability and corrosion resistance for long-lasting performance in demanding electrical applications.
  • LR Shape Configuration: Offers versatile conduit routing options with right-angle connections for efficient electrical system layouts.
  • Form 5 Design: Engineered for threaded connections ensuring secure and reliable conduit attachment points.
  • Ordinary Location Rating: Suitable for standard electrical installations in non-hazardous environments with broad application versatility.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional electrical installations.
  • Threaded Series: Provides secure mechanical connections with standard threading for easy installation and maintenance.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Product Material: Malleable iron
  • Product Shape: LR
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Routing
  • Residential Electrical Installations
  • Institutional Building Projects
  • Retail and Office Electrical Systems
  • Educational Facility Electrical Work
  • Healthcare Facility Electrical Infrastructure

Why Choose Crouse-Hinds Quality?

Crouse-Hinds outlet bodies deliver proven reliability with malleable iron construction and NEC/CEC compliance, ensuring professional-grade performance for electrical contractors and facility managers. The durable materials and standards compliance provide long-term value for electrical system installations.

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Product Material:
Malleable iron
Product Shape:
LR
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Type LR Conduit Body
Product Subgroup:
Conduit Bodies & Covers
Product Group:
Conduit & Raceway

Crouse-Hinds CRS-LR300M – Frequently Asked Questions

1) Can I use a Crouse-Hinds Form 5 LR body in a hazardous or classified area?
No. The Form 5 LR malleable iron body is rated for ordinary, non-hazardous locations only. For Class I or Class II classified areas you need an explosionproof body from the appropriate Crouse-Hinds hazardous-location line, not this one. Don't substitute it into a classified space just because the threads match.
2) Is this threaded or set-screw? Will it take rigid conduit with cut threads?
Threaded hubs. The Form 5 LR is the threaded series, so it takes NPT-threaded rigid metal conduit or IMC, either factory threads or threads you cut and ream on site. It will not accept EMT directly, since EMT is not threaded. If you are running EMT you either transition with a threaded coupling/adapter at the body or use a set-screw style conduit body instead.
3) I am replacing an old LR condulet on a 3/4 inch rigid run. Can I thread this straight onto the existing conduit?
Yes, if the existing run is threaded rigid or IMC at 3/4 inch, order the LR75M and thread it onto the same conduit ends. The Condulet LR geometry and NPT hubs are the long-standing standard for this fitting, so a like-for-like letter and trade size swap is a direct replacement. Match the letter exactly: an existing LR swapped for an LL or LB will put the cover on the wrong face and may not clear the wall.
4) What trade sizes does the Crouse-Hinds Condulet LR malleable iron body come in?
Nine trade sizes, from 1/2 inch up to 4 inch: 1/2 (LR50M), 3/4 (LR75M), 1 (LR100M), 1-1/4 (LR125M), 1-1/2 (LR150M), 2 (LR200M), 2-1/2 (LR250M), 3 (LR300M) and 4 inch (LR400M). The M suffix is the malleable iron version. Order by the trade size of the conduit you are threading into it, and keep the whole run at one size through the body.
5) Does a Crouse-Hinds Form 5 LR body come with the cover and gasket, or do I order those separately?
Form 5 Condulet covers and gaskets are separate line items from the body itself, matched to the body's trade size. Plan on a cover (and a gasket if the location calls for one) per body when you build the material list, so the opening is not left to close up with a mismatched plate.
6) Malleable iron or aluminum conduit body, which should I spec for an outdoor commercial run?
This one is malleable iron, which is the heavier, higher-impact-strength choice and the usual pick where the body may take a knock or sits in an industrial environment. Aluminum bodies are lighter and are commonly chosen where weight matters or where contact with iron is undesirable. One practical caution with malleable iron: keep it away from direct contact with aluminum conduit and fittings to avoid dissimilar-metal corrosion, and keep the coating intact on exterior work.
7) Will a Crouse-Hinds Form 5 LR body satisfy an inspector on a commercial job?
The Form 5 LR malleable iron body is built to NEC/CEC standards, which is what an electrical inspector in the US or Canada is working from. Keep in mind the code side the fitting cannot do for you: a conduit body used as a pull point still has to meet conductor fill and bending-space rules for the trade size you pick, and it must stay accessible, not buried in finished construction.
8) Can I standardize on these conduit bodies across a healthcare or school facility?
That is a reasonable standardization play for ordinary, non-hazardous spaces. Stocking the malleable iron LR in the two or three trade sizes your runs actually use (commonly 1/2, 3/4 and 1 inch for branch circuits) keeps one letter, one material and one cover family on the shelf, so a maintenance electrician grabs the right part without a lookup. Any classified space in the facility still has to be handled with explosionproof fittings.
