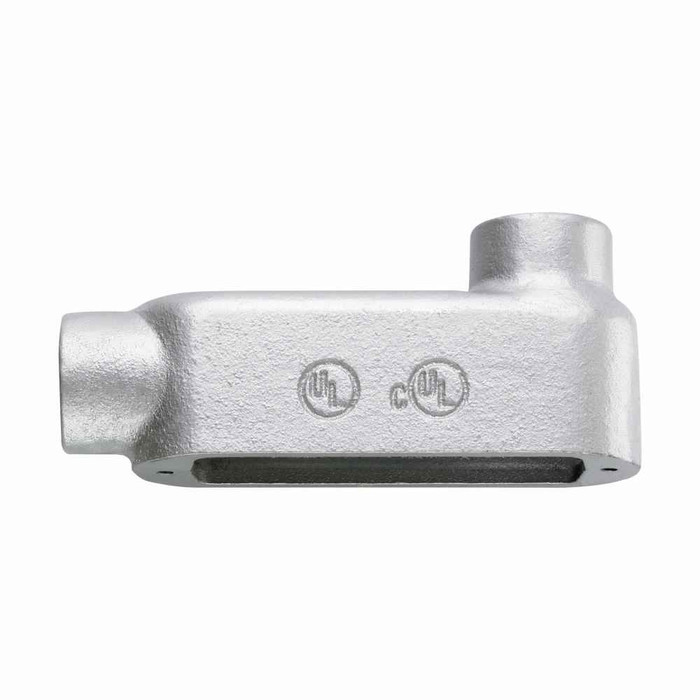

Eaton Crouse-Hinds Condulet® Form 5 Outlet Bodies - Type LB Malleable-Iron Threaded Series

Crouse-Hinds Condulet Form 5 LB Outlet Body Malleable Iron with Built-in Rollers

(No reviews yet) Write a Review

Model: CRS-LB100M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Condulet Form 5 LB Outlet Body Malleable Iron with Built-in Rollers

Professional electrical conduit routing solution for ordinary locations

The Crouse-Hinds Condulet Form 5 LB Outlet Body delivers reliable conduit routing and wire pulling capabilities with durable malleable iron construction. Designed for ordinary/non-hazardous locations, this LB-shaped outlet body features built-in rollers for smooth wire installation and meets NEC/CEC standards for professional electrical applications.

Professional Features & Benefits

  • Malleable Iron Construction: Provides exceptional durability and corrosion resistance for long-lasting performance in demanding electrical installations.
  • LB Shape Design: Enables efficient 90-degree conduit routing while maintaining proper wire bending radius and accessibility for maintenance.
  • Built-in Rollers: Facilitates smooth wire pulling operations, reducing installation time and preventing wire damage during threading.
  • Form 5 Configuration: Delivers standardized outlet body performance with reliable sealing and connection integrity for professional applications.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for safe and code-compliant installations.
  • Ordinary Location Rating: Suitable for standard commercial, industrial, and residential electrical applications without special hazard considerations.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Product Material: Malleable iron
  • Product Shape: LB
  • Special Features: Built-in rollers
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Routing
  • Residential Electrical Installations
  • Maintenance and Retrofit Projects
  • Professional Electrical Contracting
  • Code-Compliant Wiring Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds Condulet outlet bodies deliver proven reliability with malleable iron construction and NEC/CEC compliance. The built-in roller feature demonstrates the brand's commitment to installation efficiency while maintaining the durability and performance standards expected in professional electrical applications.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Product Material:
Malleable iron
Product Shape:
LB
Special Features:
Built-in rollers
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Type LB Conduit Body
Product Subgroup:
Conduit Bodies & Covers
Product Group:
Conduit & Raceway

Crouse-Hinds CRS-LB100M – Frequently Asked Questions

1) What trade sizes does the Crouse-Hinds Form 5 LB conduit body come in?
The Condulet Form 5 Type LB body is offered in ten threaded trade sizes: 1/2 inch (LB50M), 3/4 inch (LB75M), 1 inch (LB100M), 1-1/4 inch (LB125M), 1-1/2 inch (LB150M), 2 inch (LB200M), 2-1/2 inch (LB250M), 3 inch (LB300M), 3-1/2 inch (LB350M) and 4 inch (LB400M). The hubs are female threaded, so they thread directly onto rigid or IMC conduit of the matching trade size.
2) Can I use this Crouse-Hinds LB body in a hazardous or classified area?
No. The Form 5 malleable iron LB is rated for ordinary, non-hazardous locations only. For a Class I or Class II classified area you need a hazardous-location body such as a Crouse-Hinds GUA or Form 7 explosionproof unilet, not this one.
3) I am replacing an existing LB on a conduit run. Will this thread onto what is already there?
If the existing run is threaded rigid metal conduit or IMC, yes, as long as you order the matching trade size: the hubs are female threaded for that size. Threaded bodies will not accept EMT directly, so an EMT run needs threaded adapters or a set-screw/compression style body instead. Match the trade size off the existing conduit, not off the old body's catalogue number, if the number is unreadable.
4) When do I use an LB conduit body instead of an LL, LR or T body?
An LB turns the run 90 degrees with the opening on the back, which is what you want where conduit comes down a wall and has to pass through it, the classic service entrance into a building. LL and LR turn left or right with the cover on the side, and a T body gives you a third opening for a branch or a pull point. All of them are used as pull and routing points rather than junction boxes. The LB shape keeps the wire bending radius correct while leaving the cover accessible for later pulls.
5) What do the built-in rollers on this conduit body actually do?
The rollers sit inside the body at the bend so conductors ride over them during the pull instead of dragging on the casting. On larger trade sizes and long runs that cuts pulling tension and keeps insulation from being scraped as the wire turns the corner. Useful on 2 inch through 4 inch where you are pulling heavy feeders by hand or with a tugger.
6) Does the Crouse-Hinds LB outlet body come with a cover and gasket?
Covers and gaskets for Condulet Form 5 bodies are ordered separately by form and trade size. Specify a Form 5 cover matched to the same trade size as the body, plus a gasket if the location is wet or damp. The body itself is the threaded malleable iron casting.
7) Is malleable iron the right choice for an outdoor LB, or should I use aluminum?
Malleable iron is the heavier-duty option and is the usual match for rigid steel conduit runs, industrial plants and anywhere the body may take a knock. Copper-free aluminum bodies are the common pick where you are running EMT/aluminum systems or want lighter weight and no galvanic pairing with aluminum conduit. For a coastal or chemical environment, a PVC-coated body is the step up from either.
8) What is the difference between Form 5 and Form 7 Condulet bodies?
Form designation is the generation of the Condulet casting and it drives which cover fits. Form 5 is the standard ordinary-location threaded body, and its covers and gaskets are not interchangeable with Form 7 or Form 8 parts. If you are matching existing bodies on a building, read the form marking on the old casting before you order the cover.
