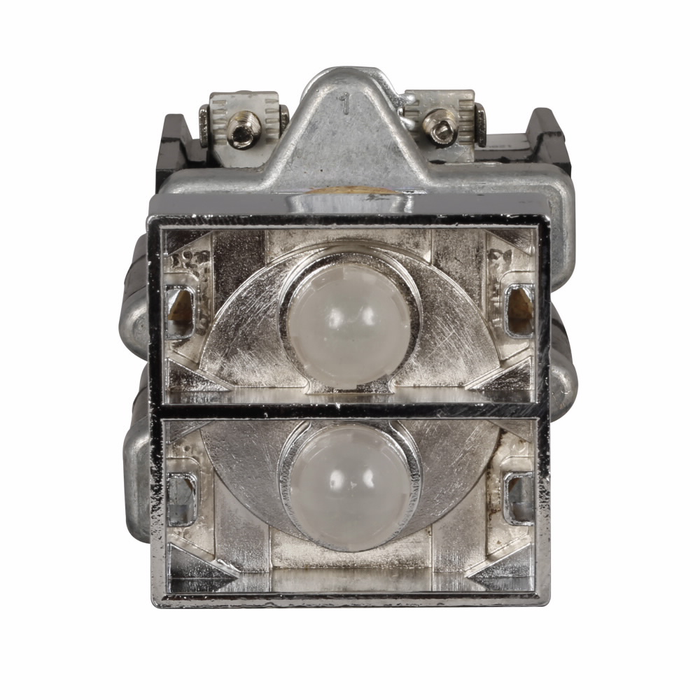

Eaton E30 Series 30.5mm Dual-Unit Square Multifunction Light Unit, 6 Vac/dc Incandescent

Eaton E30 Series 30.5mm Dual-Unit Square Multifunction Light Unit, 6 Vac/dc Incandescent

(No reviews yet) Write a Review

Model: E30CF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$591.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Series 30.5mm Dual-Unit Square Multifunction Light Unit, 6 Vac/dc Incandescent

The Eaton E30 Series 30.5mm Dual-Unit Square Multifunction Light Unit is a metallic, 30.5 mm pilot device built around an incandescent, full voltage light unit rated 6 Vac/dc, using a 6PSB lamp (LED lamp also accepted per catalog notes). Configured as a dual unit square multifunction actuator, it is engineered for panel and enclosure applications requiring reliable visual indication across NEMA 3, 3R, 3S, 4, 12, and 13 environments. Backed by a 1 year warranty and UL Listed for use on commercial and industrial control panels, this Eaton E30 light unit delivers dependable performance in demanding electrical environments.

Key Features

  • Trade Size: 30.5 mm metallic construction sized for standard E30 series panel cutouts.
  • Durable Construction: Metallic housing provides robust, long-lasting performance in industrial control environments.
  • Actuator Configuration: Dual unit square multifunction design allows two indicating functions in a single compact footprint.
  • Light Unit Type: Incandescent, full voltage light unit rated 6 Vac/dc for consistent illumination.
  • Lamp Compatibility: Uses 6PSB lamp; the light unit will also accept an LED lamp per manufacturer catalog notes, offering upgrade flexibility.
  • Environmental Ratings: Rated NEMA 3, 3R, 3S, 4, 12, and 13 for indoor, outdoor, washdown, and dust/dirt-resistant enclosure applications.
  • Series: Part of the Eaton E30 (E30C Series) family of 30.5 mm pilot devices and operator interfaces.

Certifications & Compliance

  • UL Listed
  • NEMA 3, 3R, 3S, 4, 12, and 13 Rated

Technical Specifications

  • Product Type: Electrical Component
  • Warranty: 1 year
  • Series: E30
  • Department: Electrical

Typical Applications

  • Commercial and Industrial Control Panels
  • Machine Operator Interface Stations
  • Outdoor and Washdown Enclosure Installations
  • Panelboard and Equipment Status Indication
  • Renovation and New Control Panel Construction

Why Eaton?

Eaton's E30 Series light units combine durable metallic construction with UL Listed reliability, giving panel builders and electricians a dual unit square multifunction indicator that performs across NEMA 3, 3R, 3S, 4, 12, and 13 rated environments. With a 1 year warranty and flexible incandescent-to-LED lamp compatibility, this Eaton light unit supports code-compliant, professional-grade control panel work.

Manufacturer Resources

Product Specs

Light unit type:
Incandescent, full voltage
Product Type:
Pilot Light
LED lamp number:
6PSB
Warranty:
1 year
Catalog Notes:
Light Unit will also accept LED lamp
Series:
E30
Actuator:
Dual unit square multifunction
Certifications:
UL Listed
Department:
Electrical
Product Material:
Metallic
Configuration:
Dual Unit Square Multifunction
Standards:
NEMA 3/3R/3S/4/12/13
Listing:
UL Listed
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E30CF – Frequently Asked Questions

1) Which voltage do I order for an Eaton E30 multifunction light unit, 6 volt or 28 volt?
The E30 square multifunction light unit is ordered by voltage: E30CF is the 6 Vac/dc unit and E30CS is the 28 Vac/dc unit. Pick the one that matches the control transformer or DC supply feeding your indicator circuit. Both are full voltage light units, so there is no internal transformer or resistor doing the stepping down for you.
2) Can I put an LED lamp in the Eaton E30 light unit instead of the incandescent?
Yes. The light unit ships as an incandescent full voltage type using a 6PSB lamp, and Eaton's catalog notes state the light unit will also accept an LED lamp. That lets panel builders cut lamp replacement calls without changing the operator device in the door.
3) Is the Eaton E30 light unit rated for a washdown or outdoor enclosure?
It carries NEMA 3, 3R, 3S, 4, 12 and 13 ratings, which covers outdoor rain and sleet, hosedown/washdown, and dust, dirt and oil in indoor industrial panels. The rating only holds if the enclosure itself is rated to match and the device is installed with its gasket seated in the cutout.
4) What does dual unit square multifunction mean on this Eaton E30 indicator?
It means two indicating functions sit behind one square 30.5 mm actuator, so you get two status lights in a single panel cutout instead of punching two holes. Useful when door real estate is tight on a machine operator station.
5) Is the Eaton E30 light unit plastic or metal?
Metallic construction. For machine shops, packaging lines and other spots where the operator station takes knocks or gets hit with cleaning solvents, the metal housing holds up better than a plastic-bodied indicator.
