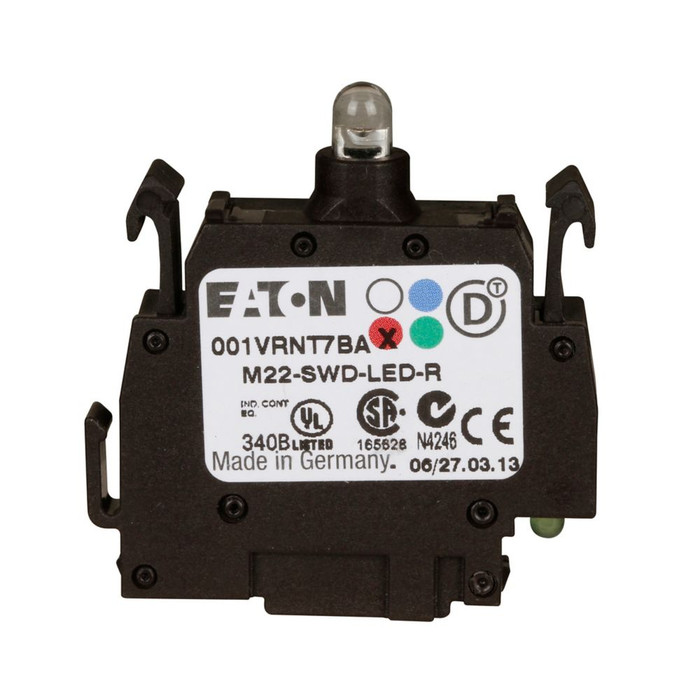

Eaton SmartWire-DT Control Station Element, PC Enclosure
The Eaton SmartWire-DT Control Station Element is an intelligent wiring system component designed for building compact, connected control stations on modern industrial control panels. Housed in a PC enclosure measuring 1.5 in wide by 2 in deep by .5 in high, this element integrates into Eaton's SmartWire-DT network, reducing point-to-point wiring while streamlining diagnostics and control-station assembly. It is UL Listed and CE Marked, making it suitable for professional electrical control applications that require reliable, code-compliant components.
Key Features
- Compact Footprint: Product dimensions of 1.5 in (width) x 2 in (length/depth) x .5 in (height) allow the element to fit neatly into space-constrained control station layouts.
- Durable Construction: PC enclosure provides a rugged housing for the internal SmartWire-DT electronics, supporting dependable performance in control-panel environments.
- SmartWire-DT Technology: Functions as an Intelligent Wiring System Control Station Element within the SmartWire-DT network, simplifying control-station wiring and enabling streamlined communication between control devices.
- Simplified Integration: Designed to work as part of a broader SmartWire-DT control station assembly, helping installers reduce individual point-to-point wiring runs.
- Space-Saving Design: The low-profile .5 in height keeps the assembled control station compact within enclosures and panel doors.
Certifications & Compliance
- UL Listed
- CE Marked
Technical Specifications
- Department: Electrical
- Product Width: 1.5 in
- Product Length/Depth: 2 in
- Product Height: .5 in
- Type: SmartWire-DT Intelligent wiring system control station element
- Compliances: CE Marked
- Certifications: UL Listed
Typical Applications
- Industrial Control Panel Assembly
- SmartWire-DT Control Station Builds
- Machine Control and Automation Wiring
- Commercial and Industrial Electrical Installations
- Panel Retrofits and New Control Station Construction
Why Eaton?
Eaton engineers its SmartWire-DT control station elements with a durable PC enclosure and UL Listed, CE Marked construction to support dependable performance on demanding industrial control panels. By integrating into the SmartWire-DT intelligent wiring system, this element helps panel builders and electricians achieve cleaner, more efficient control-station wiring without sacrificing code-compliant reliability.
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Certifications:
- UL Listed
- Compliances:
- CE Marked
- Product Type:
- Control Station
- Series:
- SmartWire-DT
- Product Material:
- PC
- Listing:
- UL Listed
- Standards:
- CE Marked
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton M22-SWD-LED-R – Frequently Asked Questions
1) What is the difference between the Eaton M22-SWD-LED-R and M22-SWD-LED-W?
The two configuration options are the LED color. Order M22-SWD-LED-R for the red element and M22-SWD-LED-W for the white one. Everything else is the same part: a SmartWire-DT control station element in a PC housing that plugs into the SmartWire-DT network behind an M22 station.
2) Will the M22-SWD-LED element fit in a tight control panel door?
It is a low-profile part: 1.5 in wide by 2 in deep by .5 in high. The half-inch height is what matters on a panel door, where depth behind the cutout is usually the constraint.
3) Can I use this Eaton element as a standalone pilot light without the SmartWire-DT system?
No. The M22-SWD-LED is an intelligent wiring system control station element, meaning it communicates over the SmartWire-DT network rather than being wired point to point. It has to sit in a SmartWire-DT control station assembly with the network cable and power to function. If you are wiring a conventional panel, you need a standard hard-wired M22 LED element instead.
4) Does the M22-SWD-LED come with the pushbutton or lens, or is it just the rear element?
It is the control station element only, the SmartWire-DT rear block that mounts behind the operator. The front actuator, lens, and mounting collar are separate M22 parts you order to match the station you are building.
5) Why use SmartWire-DT elements instead of wiring each pilot light back to the PLC?
On a conventional station every lamp and contact runs its own pair back to the I/O card. SmartWire-DT elements share one flat network cable down the row of devices, so you drop the individual point-to-point runs and get device-level diagnostics off the same line. The tradeoff is that the system only pays off if you are building the whole station on SmartWire-DT, since each element is useless on its own.
6) What is the housing made of on the M22-SWD-LED, and will it hold up in a panel?
The enclosure is PC, polycarbonate, which is the standard rugged housing material for control station electronics inside an enclosure or on a panel door.
