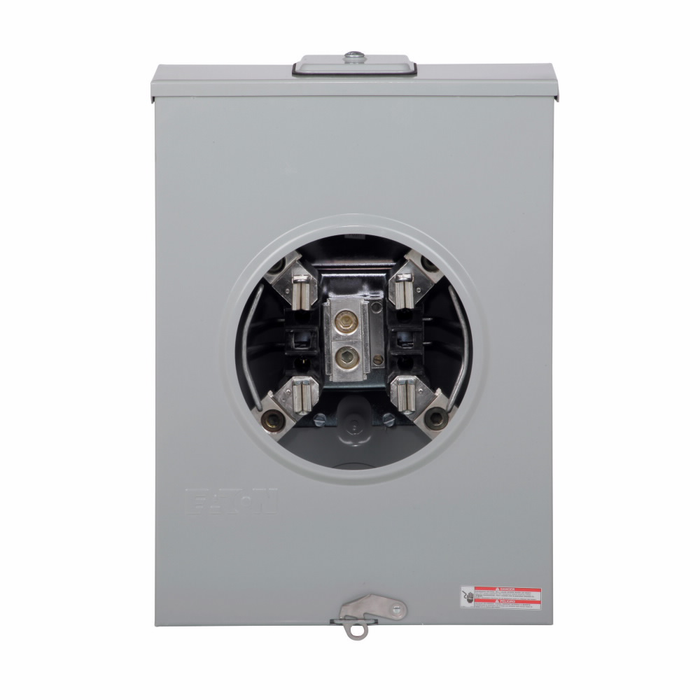

Eaton 200A Single-Position Ringless Meter Socket, Over/Under Feed

Eaton 200A Single-Position Ringless Meter Socket, Over/Under Feed

(No reviews yet) Write a Review

Model: UTRS213CE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$181.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 200A Single-Position Ringless Meter Socket, Over/Under Feed

The Eaton 200A Single-Position Ringless Meter Socket is a residential service-entrance device built for single-phase, three-wire electrical metering. Rated 200A at 600V and accepting #6-350 kcmil conductors, this ringless four-jaw meter socket supports top/bottom (over/under) feed configurations and is UL Listed for dependable, code-compliant utility metering on single-family homes.

Key Features

  • Amperage Rating: 200A service rating for standard single-family residential electric service.
  • Voltage Rating: 600V rated construction for safe, reliable operation under load.
  • Ringless, Four-Jaw Design: Ringless security style with four-jaw contacts for a secure, tamper-resistant meter connection.
  • Wire Range: Accepts #6-350 kcmil line and load conductors for flexible service-entrance wiring.
  • Feed Type: Top/bottom (over/under) feed configuration accommodates overhead or underground service drops.
  • Hub Cover Plate: 3-5/16 in hub cover plate for proper conduit hub fit and weathertight closure.
  • Three-Wire, Single-Phase: Configured for standard three-wire, single-phase residential service.
  • Compact Footprint: 11.22 in wide x 4.48 in deep x 15.11 in high enclosure for straightforward mounting.

Certifications & Compliance

  • UL Listed
  • Utility Approval: ME - Central Maine Power

Technical Specifications

  • Voltage Rating: 600V
  • Number of sockets: 1
  • Department: Electrical

Typical Applications

  • Residential Electric Service Entrances
  • Utility Metering Installations
  • Single-Family Home Wiring
  • New Construction and Service Upgrades
  • Overhead and Underground Service Connections

Why Eaton?

Eaton's meter sockets combine a ringless, four-jaw design with UL Listed construction to deliver secure, code-compliant metering for residential service entrances. Backed by Eaton's manufacturer warranty coverage, this 200A meter socket is built to perform reliably in the demanding, safety-critical environment of utility service metering.

Manufacturer Resources

Spec Sheet

Product Specs

Product Width:
11.22 in
Load:
#6-350 kcmil
Hub type:
3-5/16 in hub cover plate
Voltage Rating:
600V
Amperage Rating:
200A
Product Length/Depth:
4.48 in
Number of sockets:
1
Product Height:
15.11 in
Product Type:
Meter Socket
Phase:
Single-phase
Number of jaws:
Four-jaw
Security:
Ringless
Feed type:
Top/bottom
Line:
#6-350 kcmil
Number of wires:
Three-wire
Utility approvals:
ME : Central Maine Power
Certifications:
UL Listed
Department:
Electrical
Configuration:
Ringless
Listing:
UL Listed
Product Group:
Power Distribution
Product Subgroup:
Metering & Meter Sockets

Eaton UTRS213CE – Frequently Asked Questions

1) Will a 200A Eaton UTRS213CE ringless meter socket work for a standard single-family residential service?
That's exactly what the UTRS213CE is built for. It's a single-position, single-phase, three-wire socket rated 200A at 600V, which matches standard 120/240V residential service entrances. One meter position only, so it won't serve a duplex or any multi-meter application.
2) Is the Eaton UTRS213CE meter socket ringless or ring-type, and will my utility accept it?
It's a ringless socket with a four-jaw meter connection. Ringless and ring-type are not interchangeable at the meter, so you have to order the style your serving utility specifies. Eaton lists this one as approved by Central Maine Power in Maine. If your utility requires a ring-type cover, this is the wrong socket.
3) What size service conductors will fit the lugs on this 200A meter socket?
Line and load terminals both take #6 through 350 kcmil. That covers 2/0 copper or 4/0 aluminum for a typical 200A dwelling service, with room up to 350 kcmil if the run is long and you're upsizing for voltage drop.
4) Can I use this Eaton meter socket for an overhead drop, or only underground?
Either. It's a top/bottom (over/under) feed socket, so you can bring service in from the top for an overhead drop or from the bottom for an underground lateral. That's one of the reasons it gets spec'd on both new construction and service upgrades where the feed direction isn't settled yet.
5) Is the ABB MeterMod III 800A ringless meter socket a substitute for the Eaton UTRS213CE?
No. The Eaton UTRS213CE is a 200A single-position, four-jaw, three-wire single-phase meter socket rated 600V with #6-350 kcmil line and load terminals, sized for a single-family residential service entrance. The ABB MeterMod III is an 800A single-phase socket - a much larger service class intended for high-amperage services, not a drop-in for a 200A residential meter can. Both share the ringless security style, so a utility that requires ringless will accept either on that point, but the ampacity and conductor range are not interchangeable.
6) What size conduit hub does the UTRS213CE take on top?
The enclosure comes with a 3-5/16 in hub cover plate, which is the standard opening for a service-entrance hub on a 200A socket. The hub itself is a separate item, sized to the raceway you're running, so order it with the socket if you're feeding overhead through rigid or EMT.
7) Will this Eaton 200A socket fit where my old meter can was mounted?
The enclosure measures 11.22 in wide, 15.11 in high and 4.48 in deep. Compare that to the existing backboard or siding cutout before you pull the old can, particularly the height if you're working between a weatherhead and a panel that are already fixed.
8) Is this meter socket UL Listed for a permitted service upgrade?
Yes, the UTRS213CE is UL Listed, which is what an inspector will look for on a service-entrance device. The four-jaw, three-wire configuration is the standard single-phase residential arrangement.
9) I need a meter socket for a large commercial service, not a house. Is this one usable?
No. This Eaton socket tops out at 200A with a single meter position, which is residential-scale. For heavy commercial service, step up to something like the ABB MeterMod III 800A single-phase ringless meter socket, which is built for that current class.
10) Does a four-jaw socket mean anything different than a five-jaw or seven-jaw socket?
Four jaws is the standard single-phase, three-wire residential self-contained meter arrangement, and that's what the UTRS213CE is. Five-jaw and seven-jaw sockets are used for network or three-phase metering. If your utility's meter is anything other than a four-jaw single-phase unit, it won't seat in this socket.
11) The service is larger than 200A - what meter socket should I use instead of the Eaton UTRS213CE?
Step up to a higher-ampacity socket. The Eaton UTRS213CE tops out at a 200A service rating with #6-350 kcmil terminals, which covers a standard single-family entrance. For services above that, the ABB MeterMod III is an 800A single-phase ringless socket built for the heavier service class. Confirm the ampacity, jaw count, and mounting with the serving utility before ordering either, since meter can requirements are set by the utility.
12) My utility requires a ringless meter can - which of these qualify?
Both do. The Eaton UTRS213CE uses a ringless security style with four-jaw contacts, and the ABB MeterMod III 800A single-phase socket is also a ringless design. The difference between them is service size, not security style: the Eaton is a 200A single-position socket for residential entrances, while the ABB is rated 800A. The Eaton is also carried with a Central Maine Power utility approval, which matters if you are working in that territory.
