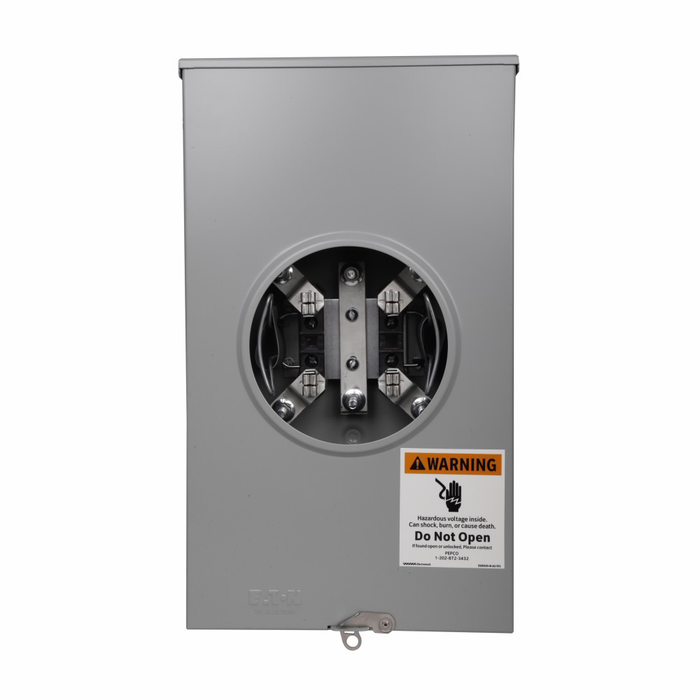

Eaton Ringless Residential Meter Socket, 200A Single-Phase, Over/Under Feed

Eaton Ringless Residential Meter Socket, 200A Single-Phase, Over/Under Feed

(No reviews yet) Write a Review

Model: 1007448ACH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$261.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Ringless Residential Meter Socket, 200A Single-Phase, Over/Under Feed

The Eaton Ringless Residential Meter Socket is a 200A single-phase meter socket built for residential and light commercial service entrances. It features a residential type cover, a four-jaw ringless design, a 3-5/16 in hub opening, and a 3/8 in stud, with an over/under (top/bottom) feed configuration for flexible service routing. This unit is UL Listed and designed for three-wire, single-phase utility metering applications.

Key Features

  • Hub Opening: 3-5/16 in hub opening for compatible conduit entry and secure service connections.
  • Stud Size: 3/8 in stud on the load and line sides for reliable termination.
  • Amperage Rating: Rated 200A for residential and light commercial single-phase service.
  • Residential Type Cover: Purpose-built cover configuration for standard residential meter installations.
  • Four-Jaw Ringless Design: Ringless, four-jaw socket construction for secure meter seating without a meter ring.
  • Over/Under Feed: Top/bottom (over/under) feed type supports flexible conduit entry from above or below.
  • Single-Phase, Three-Wire: Configured for single-phase, three-wire electrical service.
  • Compact Footprint: Approximately 11 in wide, 19 in tall, and 4.38 in deep to fit standard meter locations.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Number of sockets: 1
  • Department: Electrical

Typical Applications

  • Residential Electrical Service Entrances
  • Utility Meter Installations
  • Single-Phase Service Upgrades
  • New Construction and Remodel Electrical Service
  • Light Commercial Metering Applications

Why Eaton?

Eaton builds this meter socket with a four-jaw, ringless design and a residential type cover to deliver secure, code-compliant utility metering for 200A single-phase service. Backed by UL Listing and Eaton's standard product warranty, it is engineered for dependable performance in demanding residential and light commercial installations.

Manufacturer Resources

Product Specs

Product Width:
11 in
Hub type:
3-5/16 in hub opening
Load:
3/8 in stud
Amperage Rating:
200A
Product Length/Depth:
4.38 in
Number of sockets:
1
Product Height:
19 in
Product Type:
Meter Socket
Phase:
Single-phase
Number of jaws:
Four-jaw
Security:
Ringless
Feed type:
Top/bottom
Line:
3/8 in stud
Number of wires:
Three-wire
Utility approvals:
DC : PEPCO
Certifications:
UL Listed
Department:
Electrical
Configuration:
Over/Under Feed
Listing:
UL Listed
Product Group:
Power Distribution
Product Subgroup:
Metering & Meter Sockets

Eaton 1007448ACH – Frequently Asked Questions

1) Will this Eaton 200A ringless meter socket work for a standard residential 120/240V service upgrade?
Yes, for a single-phase, three-wire service at 200 amps. The Eaton 1007448ACH is a four-jaw socket, which is the jaw count used for single-phase three-wire residential metering. It is UL Listed. If your service is three-phase or requires a seven-jaw socket, this is the wrong unit.
2) What does ringless mean on a meter socket, and will my utility accept it?
Ringless means the meter is held by the cover itself rather than a separate sealing ring, so the utility pulls the cover to access the meter. The Eaton 1007448ACH is a ringless, four-jaw socket with a residential type cover. Utilities specify one or the other, and ringless is the common requirement in many territories. Eaton lists this unit under PEPCO (DC) utility approval.
3) Can I run conduit into this meter socket from below instead of overhead?
Both work. The 1007448ACH is an over/under feed socket, meaning top or bottom conduit entry, so it suits an overhead service drop or an underground lateral coming up from below. The hub opening is 3-5/16 inches for the service entry.
4) What size conduit hub fits this Eaton meter socket?
The opening is 3-5/16 inches, which is the standard hub knockout size on 200A residential sockets and takes a 2 inch or 2-1/2 inch threaded hub depending on your service conductor size. The hub is a separate item, not part of the socket.
5) How are the line and load conductors terminated in this socket?
Line and load both land on 3/8 inch studs rather than screw-clamp lugs, so you terminate with compression or mechanical lugs sized to your conductors and bolt them to the stud. Plan on supplying those lugs if they are not already on your service conductors.
6) How much wall space do I need for this 200A meter socket?
It measures 11 inches wide, 19 inches tall and 4.38 inches deep, so it drops into a standard residential meter location. Leave working clearance in front per the utility's mounting height requirement.
7) Does this Eaton meter socket include a main breaker or disconnect?
No. The 1007448ACH is a meter socket only, with one socket position and no integral breaker. You still need a separate main breaker panel or service disconnect downstream, plus the hub and grounding provisions the utility requires.
8) What if I need a ringless socket rated well above 200 amps?
This Eaton unit tops out at 200A single-phase. For a much larger single-phase service, ZenSupply carries the ABB MeterMod III 800A 1-phase ringless meter socket, which is a modular commercial-scale unit rather than a residential can.
9) What should I use instead of a 200A residential meter socket when the service is much larger than 200A?
Step up to a higher-amperage ringless socket such as the ABB MeterMod III TMPR, which is rated 800A single-phase. The Eaton 1007448ACH is built for 200A single-phase, three-wire residential and light commercial entrances with a 3-5/16 in hub opening and 3/8 in line and load studs, so it is the right choice for a typical house service or 200A upgrade, not for a high-capacity feed. Confirm the amperage on the utility's service order before selecting either.
10) Is this meter socket suitable for a small commercial building?
It can serve light commercial metering as long as the service is single-phase three-wire at 200A or less. Anything three-phase, or a commercial service needing more jaws or a current-transformer cabinet, needs a different socket.
11) Both sockets are called ringless - does that mean the meters and covers interchange?
No. Ringless describes how the meter is retained, and both the Eaton 1007448ACH and the ABB MeterMod III TMPR use that construction, but it does not make the covers or meter sockets interchangeable. The Eaton unit is a four-jaw, 200A single-phase socket with a residential type cover and over/under feed for conduit entry from the top or bottom; the ABB is an 800A single-phase device in the MeterMod III series. Order the cover and meter to the specific socket being installed rather than assuming ringless parts cross over.
