Spec Sheet
Product Specs
- Amperage Rating:
- 600A
- Series:
- Series C
- Terminals:
- Line and load
- Wire Size:
- (2) 250-350 kcmil
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Terminal Blocks
- Product Type:
- Optional Al/Cu pressure terminals
- Product Length:
- 2.5 IN
- Product Details:
- Optional Al/Cu pressure terminals
- Product Height:
- 1.7 IN
- Product Weight:
- .7 LB
- Product Width:
- 2 IN
B-LINE T602LD – Frequently Asked Questions
1) What wire size does the T602LD terminal kit accept?
The T602LD pressure terminal kit takes two conductors per pole, each 250 to 350 kcmil. That means a 600A feeder run as parallel 250, 300 or 350 kcmil cables lands directly. A single 600 kcmil or 750 kcmil conductor will not fit this lug, so if your design calls for one large conductor per pole you need a different terminal.
2) Can I land aluminum conductors on the T602LD, or is it copper only?
Both. The T602LD is an Al/Cu rated pressure terminal, so aluminum and copper conductors are acceptable on it within the 250-350 kcmil size range, two per pole.
3) Does the T602LD fit the line side, the load side, or both on an Eaton Series C breaker?
Both ends. The T602LD is listed for line and load terminals on Eaton Series C molded case breakers, so the same part number covers either side of the breaker.
4) How many T602LD terminals do I need for a three-pole 600A breaker?
Order one per pole per end. A three-pole Series C breaker terminated on both line and load takes six, since each T602LD covers a single pole position and is usable on either end.
5) Is the T602LD a mechanical lug or does it need crimping?
It is a mechanical pressure terminal, so the conductor is clamped under a setscrew. No crimp tool or compression lug is required, which is why it is the common choice for field terminations on Series C breakers.
6) What is the exact part number to order for the Eaton Series C 600A Al/Cu terminal?

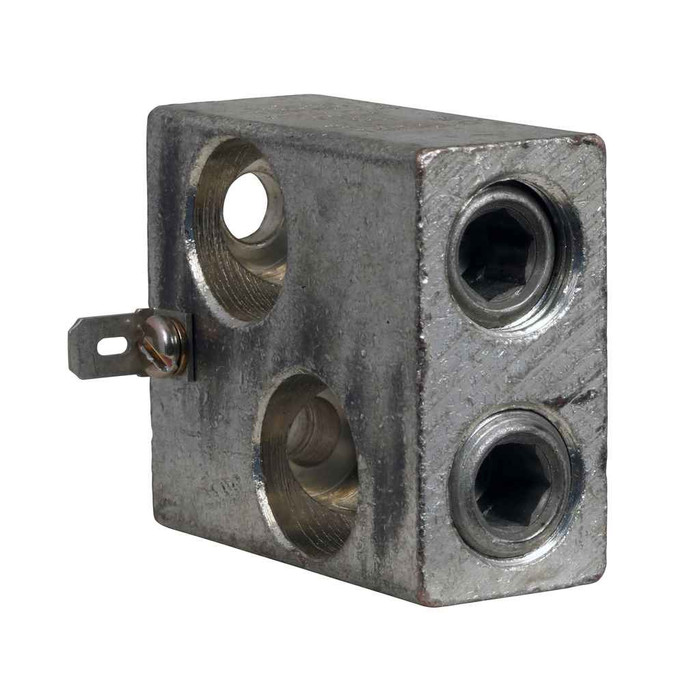

The manufacturer part number is T602LD, an Al/Cu pressure terminal for Eaton Series C molded case breakers rated 600A and taking two 250-350 kcmil conductors.
