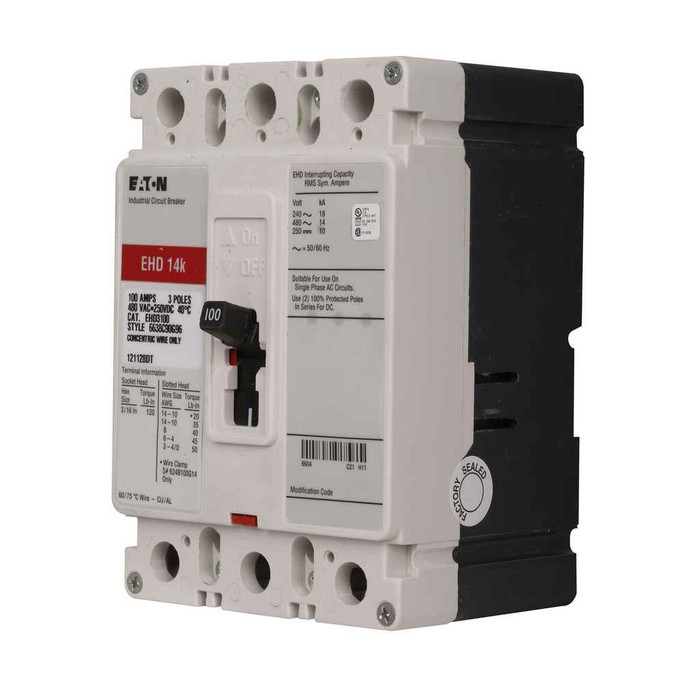

Product Specs
- Amperage Rating:
- 60A
- Calibration:
- 50°C
- Circuit Breaker Frame Type:
- Complete breaker
- Circuit Breaker Type:
- EHD
- Frame Size:
- F-frame
- Frequency Rating:
- 50/60 Hz
- Interrupt Rating:
- 18 kAIC at 240 Vac, 14 kAIC at 480 Vac
- Number Of Poles:
- Three-pole
- Series:
- Series C
- Terminals:
- Load side
- Trip Type:
- Fixed thermal, fixed magnetic
- Department:
- Electrical
- Product Length:
- 3.38 IN
- Product Height:
- 6 IN
- Product Weight:
- 4.5 LB
- Product Width:
- 4.13 IN
B-LINE EHD3060V – Frequently Asked Questions
1) What is the interrupting rating of the Eaton EHD3060V breaker at 240V and 480V?
The EHD3060V is rated 18 kAIC at 240 Vac and 14 kAIC at 480 Vac. If your panel's available fault current at the point of installation exceeds those numbers, this EHD frame is the wrong choice and you need a higher AIC device. The breaker runs on 50/60 Hz systems.
2) Is the EHD3060V a three-pole 60 amp breaker?
Yes, three-pole, 60 amp. That makes it a three-phase branch or feeder device, not a single-phase two-pole. The trip unit is fixed thermal, fixed magnetic, so the settings are factory-set and not adjustable in the field.
3) Is the Eaton EHD3060V a complete breaker or just a trip unit?
It ships as a complete molded case breaker, so you are not ordering a separate frame and trip unit. It is an F-frame device in Eaton's Series C line, which is what determines whether it drops into the panel interior or enclosure you already have.
4) Can I use the EHD3060V on a 480V three-phase feeder?
Yes, it carries a 480 Vac rating at 14 kAIC, along with 18 kAIC at 240 Vac. Three poles and 50/60 Hz operation suit it to 480Y or 480 delta three-phase work, provided the available fault current at that point stays under 14 kA.
5) What terminals come on the EHD3060V and do I need to order lugs separately?
Load side terminals are included with the breaker. Line side connection depends on how you are mounting it: in a panelboard or switchboard the breaker lands on the bus, so plan your line connection method around the enclosure it is going into.
6) What are the dimensions and weight of the Eaton EHD3060V breaker?
Published as 6 in height, 4.13 in width, 3.38 in length, weighing 4.5 lb. Use those figures to confirm the gutter space and mounting pocket in the enclosure before you commit, particularly on a retrofit into an older can.
