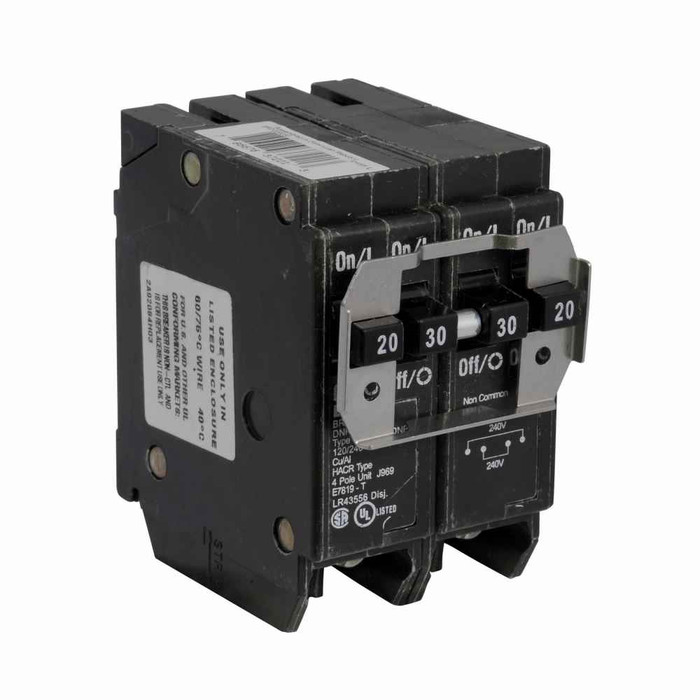

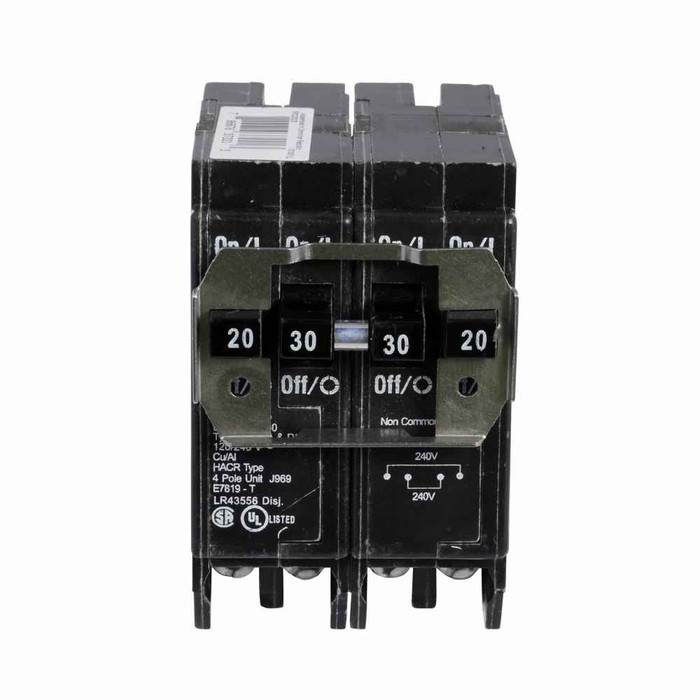

Eaton BR Type Thermal Magnetic Circuit Breaker Four-Pole Common Trip 120/240V 10kAIC

Eaton BR Type Thermal Magnetic Circuit Breaker Four-Pole Common Trip 120/240V 10kAIC

Professional four-pole circuit protection with common trip functionality

The Eaton BR Type thermal magnetic circuit breaker delivers reliable four-pole circuit protection with common trip operation at 120/240V and 10kAIC interrupt rating. This compact 1-inch quad design fits Type BR loadcenters and provides professional-grade protection with UL 489 certification and Federal Specifications Classification W-C375 compliance for dependable electrical system safety.

Professional Features & Benefits

• 10kAIC Interrupt Rating: Provides robust fault current interruption capability for enhanced system protection and safety.
• Four-Pole Common Trip Design: Ensures simultaneous disconnection of all poles for comprehensive circuit isolation and safety.
• 120/240V Voltage Rating: Compatible with standard residential and light commercial electrical systems for versatile applications.
• UL 489 Certification: Meets rigorous safety and performance standards for reliable circuit protection in professional installations.
• Compact 1-Inch Quad Configuration: Maximizes panel space efficiency while providing four-pole protection in minimal footprint.
• Thermal Magnetic Operation: Combines thermal overload and magnetic short-circuit protection for comprehensive fault detection and response.
• Type BR Compatibility: Designed specifically for Type BR loadcenters ensuring proper fit and optimal performance.

Technical Specifications

• Catalog Notes: Non-CTL
• Certifications: UL 489
• Circuit Breaker Type: BR
• Compliances: Federal Specifications Classification W-C375
• Interrupt Rating: 10 kAIC
• Main Circuit Breaker: BR
• Number Of Poles: Four-pole
• Product Details: Type BR 1-Inch quad circuit breaker
• Product Height: 3 in
• Product Length Depth: 3 in
• Product Weight: .8 lb
• Product Width: 2 in
• Trip Type: Common breaker trip
• Used With: Type BR Loadcenters
• Voltage Rating: 120/240 V
• Wire Size: #14-4 AWG Cu/Al

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels requiring four-pole common trip protection
• Light commercial facilities with 120/240V systems
• Multi-unit properties with Type BR loadcenter installations
• Professional offices requiring reliable circuit protection
• Retail establishments with standard voltage requirements
• Service and maintenance applications for existing Type BR systems

Why Choose Eaton Quality?

Eaton circuit breakers deliver proven reliability with UL 489 certification and Federal Specifications compliance, ensuring dependable performance in critical electrical protection applications. The compact design and robust 10kAIC interrupt rating provide professional-grade protection you can trust for long-term electrical system safety.
