Product Specs
- Country Of Origin:
- Canada
- Csa Cert :
- LR21001
- Ip Rating:
- IP66
- Panel:
- Available (sold separately)
- Product Height:
- 16
- Product Material:
- Mild Steel
- Product Weight:
- 21 lbs
- Product Width:
- 16
- Reach Compliant:
- Yes
- Rohs Compliant:
- Yes
- Standards:
- csa, ul, ce
- Type Rating:
- type-3r, type-12, type-4
- Ul File :
- E65324
- Usmca Compliant:
- Yes
- Product Depth:
- 8
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Weatherproof Enclosures
- Product Type:
- Hinged-Cover Enclosure
Hammond Manufacturing EN4SD16168LG – Frequently Asked Questions
1) Is the Hammond EN4SD16168LG rated for outdoor or washdown use?

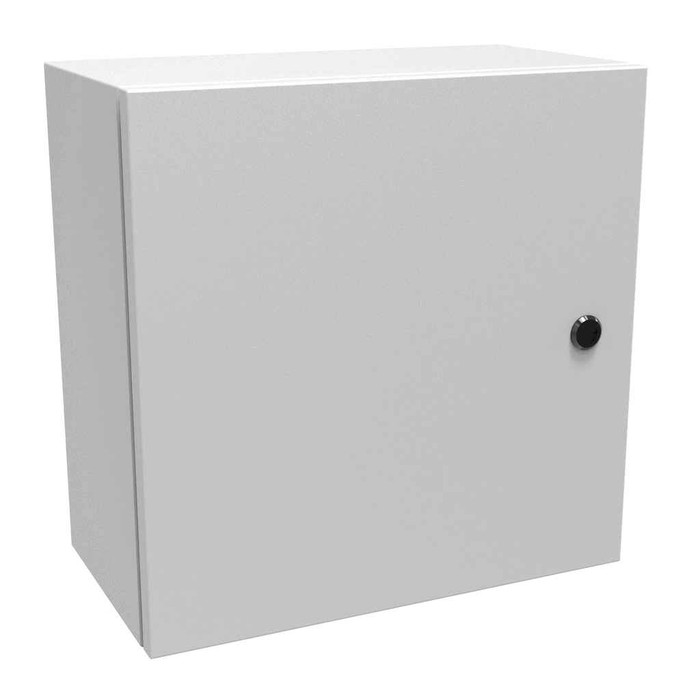

The EN4SD16168LG Eclipse wallmount enclosure carries Type 4, Type 3R and Type 12 ratings, plus an IP66 rating. That covers outdoor rain and sleet exposure, hose-directed water, and dust and dripping oil or coolant indoors. It is a gasketed, sealed enclosure, so it suits wet exterior walls and washdown areas as well as dusty plant floors.
2) Does the Eclipse EN4SD16168LG come with a back panel?
No. The 16 x 16 x 8 Eclipse enclosure ships as the box and door only. A mounting back panel is available for it but is sold separately, so add one to the order if you plan to mount DIN rail, breakers, or a drive inside.
3) Will the Hammond Eclipse EN4SD16168LG pass a UL and CSA inspection on a job?
It is built to UL, CSA and CE standards, listed under UL file E65324 and CSA certificate LR21001. Those file numbers are what an electrical inspector or a submittal reviewer will want to see against the enclosure nameplate.
4) What are the actual dimensions of the Hammond EN4SD16168LG, and how much does it weigh?
It measures 16 inches high by 16 inches wide by 8 inches deep, and weighs 21 lbs empty. At that weight a single installer can hang it, but on drywall or block plan for anchors rated well above 21 lbs once the panel, breakers and wiring are inside.
5) Is the Hammond EN4SD16168LG steel or stainless?
Mild steel, painted, with a light gray finish. For salt spray, chemical exposure or food-processing washdown where a painted steel box will eventually corrode at scratches, specify a stainless or non-metallic Type 4X enclosure instead. This one is Type 4, not 4X.
6) Does the Hammond EN4SD16168LG meet Buy North America / USMCA sourcing requirements?
It is made in Canada and USMCA compliant, which is what most government and institutional procurement packages are checking for on North American content. It is also RoHS and REACH compliant for restricted-substance reporting.
7) Can I mount the EN4SD16168LG outdoors on an exterior wall without a rain hood?
Yes. The Type 3R and Type 4 ratings and IP66 sealing cover rain, sleet and hose-directed water, so no additional hood is required for wall mounting outdoors. Standard practice still applies: keep any conduit entries on the bottom or use rated hubs, since drilling the top of a gasketed enclosure voids the rating.
