Product Specs
- Country Of Origin:
- Canada
- Csa Cert :
- LR21001
- Ip Rating:
- IP66
- Panel:
- Available (sold separately)
- Product Height:
- 30
- Product Material:
- Mild Steel
- Product Weight:
- 70 lbs
- Product Width:
- 30
- Reach Compliant:
- Yes
- Rohs Compliant:
- Yes
- Standards:
- csa, ul, ce
- Type Rating:
- type-3r, type-12, type-4
- Ul File :
- E65324
- Usmca Compliant:
- Yes
- Product Depth:
- 8
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Weatherproof Enclosures
- Product Type:
- Hinged Cover Enclosure

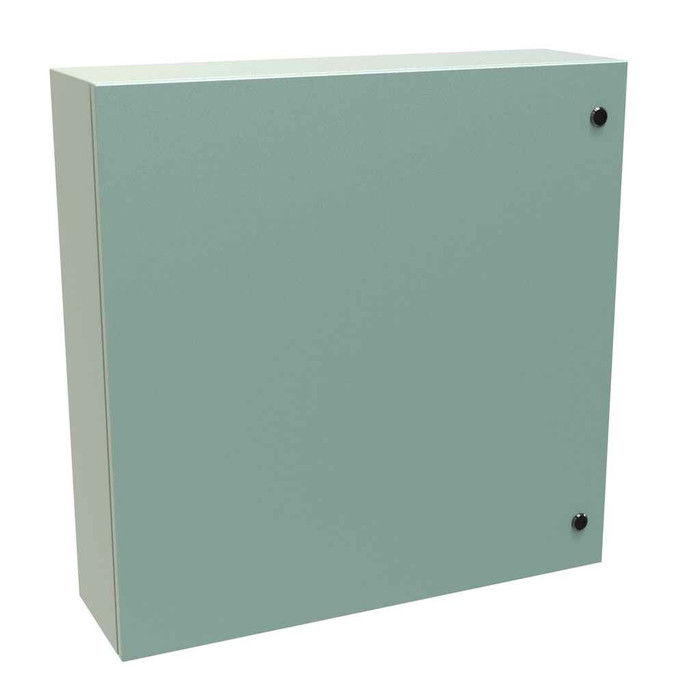

Hammond Manufacturing EN4SD30308GY – Frequently Asked Questions
1) Is the Hammond EN4SD30308GY enclosure rated for outdoor use?
Yes. The Eclipse EN4SD30308GY wallmount enclosure carries Type 4, Type 3R and Type 12 ratings, so it handles outdoor rain, sleet and hose-directed water as well as dust and dripping oil in industrial interiors. It is also rated IP66. Type 4 and 3R are the ones that matter for an exterior wall; Type 12 covers the dirty indoor plant environment.
2) Does the Hammond EN4SD30308GY come with a back panel?
No. The 30 x 30 x 8 Eclipse single-door wallmount ships as the enclosure body and door only. A mounting back panel is available but sold separately, so add one to the order if you are mounting gear inside. Plan the panel purchase up front rather than discovering it on install day.
3) Will the Hammond Eclipse EN4SD30308GY pass an inspection that requires UL and CSA listing?
It is built to csa, ul and ce standards, with CSA certification LR21001 and UL file E65324 on record. Those file numbers are what an inspector or a submittal package asks for, so you can cite them directly on the job paperwork.
4) What are the actual dimensions and weight of the Hammond EN4SD30308GY?
Height 30 inches, width 30 inches, depth 8 inches. It weighs 70 lbs empty, so it is a two-person lift and the wall structure needs to carry that plus whatever you install inside. On stud framing, land the mounting feet on solid blocking or the studs themselves.
5) Is 8 inches of depth enough for my control panel?
Eight inches is the inside dimension to work with on this Eclipse wallmount, measured from the back wall to the door plane, less whatever the back panel and its standoffs take up. That is comfortable for contactors, terminal blocks, small drives and PLC racks, but tight if you are stacking door-mounted operators against deep-bodied components. Check the deepest device you plan to mount and its wiring bend radius before committing.
6) What is the Hammond EN4SD30308GY enclosure made of, and will it hold up outdoors?
Mild steel body and door, finished in gray. Steel gives you the strength for heavy panel loads and easy field drilling for conduit hubs, and the Type 4 rating covers exterior exposure. For coastal salt air or washdown chemical exposure, a stainless or non-metallic enclosure is the better call; steel is the right pick for general outdoor and industrial duty.
7) Does this Hammond enclosure meet RoHS and REACH for our procurement requirements?
Yes on both. The EN4SD30308GY is RoHS compliant and REACH compliant, and it is also USMCA compliant with Canada as the country of origin. That combination covers most government, healthcare and education procurement checklists, including domestic-content questions on North American projects.
8) What does the IP66 rating on this enclosure actually mean for a washdown area?
IP66 means totally dust tight and protected against powerful water jets from any direction. Paired with the Type 4 rating, the 30 x 30 x 8 Eclipse handles hose-down cleaning in food plants and vehicle bays. It is not an immersion rating, so do not install it where it can be submerged or sit in standing water.
9) Is the EN4SD30308GY a one-door or two-door enclosure?
Single door. The EN4SD30308GY is a one-door Eclipse wallmount at 30 x 30 x 8. On a 30 inch wide opening a single door swings clear in most electrical rooms, but if you are mounting in a tight aisle, measure your swing clearance before you set the mounting points, since you cannot reduce it after the fact.
