Product Specs
- Country Of Origin:
- Canada
- Csa Cert :
- LR21001
- Ip Rating:
- IP66
- Panel:
- Included
- Product Height:
- 8
- Product Material:
- Mild Steel
- Product Weight:
- 7 lbs
- Product Width:
- 8
- Reach Compliant:
- Yes
- Rohs Compliant:
- Yes
- Standards:
- csa, ul, ce, taa-compliant
- Type Rating:
- type-3r, type-12, type-13, type-4
- Ul File :
- E65324
- Usmca Compliant:
- Yes
- Product Depth:
- 4
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Weatherproof Enclosures
- Product Type:
- Hinged Cover Enclosure
Hammond Manufacturing EJ884 – Frequently Asked Questions
1) Is the Hammond EJ884 enclosure rated for outdoor or washdown use?

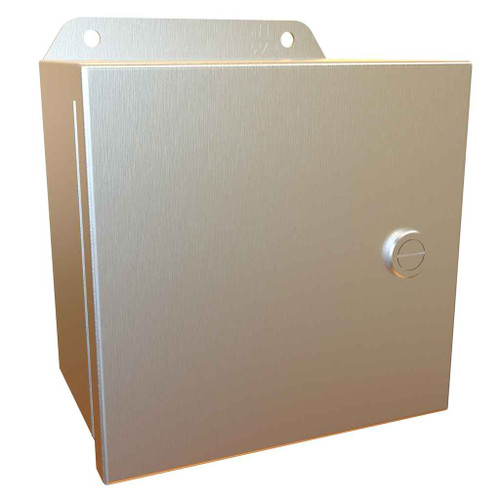

The EJ884 Eclipse Jr. carries Type 4, Type 3R, Type 12 and Type 13 ratings, plus an IP66 rating, so it handles rain, splashing water and hose-directed water as well as dust, dirt and dripping oil or coolant. That covers outdoor wall mounting and washdown areas in plants. It is not a hazardous-location or submersible box.
2) What are the EJ884 enclosure dimensions and will a 7 x 7 inch backplate fit?
The EJ884 measures 8 inches high, 8 inches wide and 4 inches deep, so interior usable space is less than those outside figures. You do not need to source a plate separately, a mounting panel is included with the enclosure.
3) Is the Hammond EJ884 UL and CSA listed for a government or institutional job?
The EJ884 is built to csa, ul and ce standards and is TAA compliant, with UL file E65324 and CSA certification LR21001 on record. It is also RoHS and REACH compliant and USMCA compliant, which covers the usual submittal checklist on federal and institutional work.
4) Does the Hammond EJ884 come with a mounting panel or do I have to order one?
A panel ships with the EJ884, so the box arrives ready to lay out and drill for components. Wall mounting feet or brackets, conduit hubs and any window kits are separate items.
5) Is the EJ884 steel or stainless, and will it hold up outdoors?
Body material is mild steel, not stainless. For outdoor or damp locations that is fine with the factory finish intact, but in coastal, chemical or chlorinated environments where corrosion is the deciding factor, specify a stainless or non-metallic enclosure instead. The steel body does give you a path to bond and ground the enclosure.
6) Where is the Hammond EJ884 enclosure made, and does it meet Buy American style sourcing rules?
Country of origin is Canada, and the EJ884 is listed as TAA compliant and USMCA compliant. That satisfies trade agreement sourcing on most federal procurement, though a strict Buy American Act domestic-content clause is a different test than TAA.
7) Will drilling conduit holes in the EJ884 void its Type 4 rating?
The Type 4 and IP66 ratings depend on the enclosure staying sealed, so any hole you cut has to be closed with a fitting rated to the same level. Use watertight hubs or gasketed cord grips on the sides or bottom, and keep penetrations out of the top face where water collects. Unsealed knockouts or standard locknut connectors drop the box to an indoor-only rating in practice.
8) How heavy is the EJ884 and can one person hang it on a wall?
At 7 lbs with the panel, the EJ884 is a one-person wall mount. It is a single-door wall mount box, so plan your anchors for the weight of the enclosure plus whatever components and wiring you load onto the panel.
