Emtek 1122 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1122 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage EMTEK-1122

Emtek 1122 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1122-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1122 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers

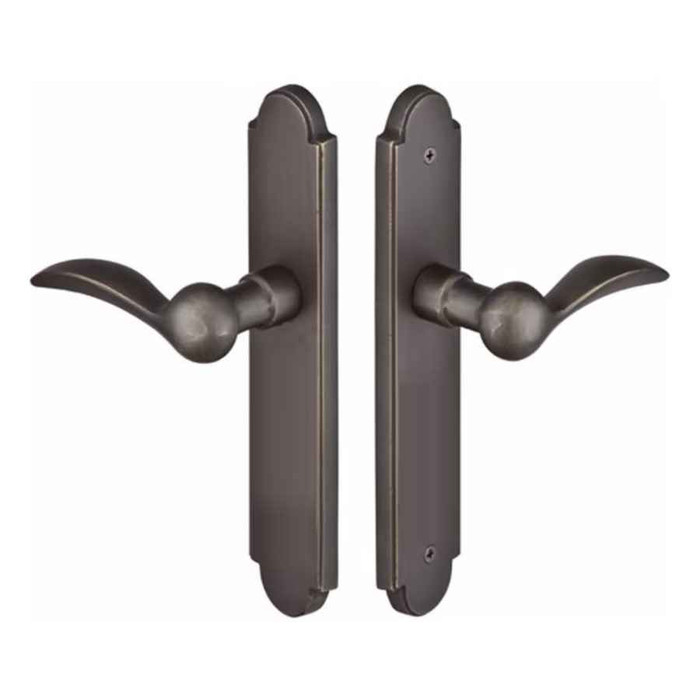

  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1122
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1122-FB – Frequently Asked Questions

1) Does the Emtek 1122 multi point trim include the multi point lock mechanism itself?
No. The Emtek 1122 is trim only: you get the plates and handles for both sides of the door. The multi point mortise lock box has to be ordered separately, so if your patio door does not already have a working multi point gearbox in it, this set alone will not lock the door.
2) Will the Emtek 1122 Arched trim fit my Andersen or Marvin swinging patio door?
The 1122 is built for swinging patio doors using multi point hardware from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior. It is set up as Door Configuration #1, with the cylinder position below the handle, so match your existing gearbox layout to that configuration before ordering.
3) What is the center-to-center spacing on the Emtek 1122 trim plate?
3-5/8 inches from handle center to cylinder center, with the cylinder sitting below the handle. That spacing has to match the gearbox already in your door, since the plate holes are fixed. The plates themselves are 2 by 10 inches in the Arched style.
4) Is the Emtek 1122 keyed, and can I lock the door with it?
It is a non-keyed passage set. The levers operate the latch only, with no cylinder and no locking function from the trim. If you need to key the opening, you want a keyed version of the multi point trim instead.
5) Do I have to specify handing when ordering the Emtek 1122?
Yes, handing is a required choice, right hand or left hand, and so is the lever style. Determine the door's hand before ordering, because the plate and lever assembly is built for one hand.
6) What door thickness and backset does the Emtek 1122 trim work with?
Doors from 1-3/8 to 1-3/4 inches, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. If your patio door falls outside 1-3/8 to 1-3/4 inches, note the thickness in the door thickness field when you order.
7) Which levers can I pair with the Emtek 1122 Sandcast Bronze trim?
Any Emtek Sandcast Bronze lever. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, and the lever is a required selection at order time.
8) What finishes does the Emtek 1122 Arched sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All are sandcast bronze, so expect the hand-poured texture and slight variation between pieces, which matters if you are matching other openings in a house.
9) Will the lever on the Emtek 1122 sag over time like older patio door trim?
No. This multi point trim includes a spring assist that returns the lever to the neutral horizontal position, which is what prevents the drooping handle common on heavier bronze levers.
10) Is the Emtek 1122 suitable for a commercial building entrance?
It is a residential product, intended for swinging patio doors in homes. For a commercial opening you need commercial grade locksets rather than residential multi point patio trim.
