Emtek Emtek 1522 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage EMTEK-1522

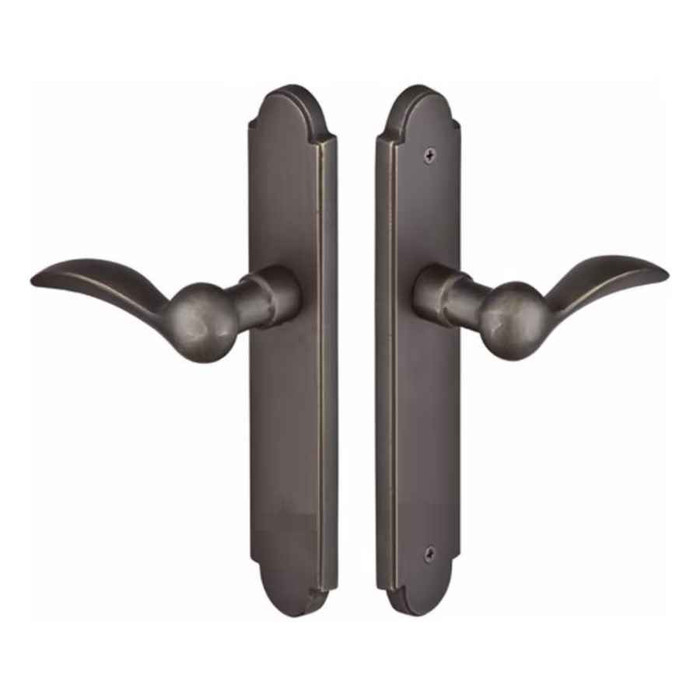

Emtek 1522 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1522-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1522 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1522
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1522-FB – Frequently Asked Questions

1) What is Door Configuration #5 on Emtek multi point trim, and how do I know my lock matches?
Door Config #5 describes the hole pattern the trim is drilled for: a Euro profile cylinder positioned below the handle, with 3-5/8 inch center-to-center between the handle spindle and the cylinder. If your existing multi point lock box has that layout, the 1522 plates line up. A different center-to-center or a cylinder above the handle needs a different config.
2) This is a non-keyed passage trim with a cylinder hole below the handle. Do I still need a cylinder?
The 1522 is a passage function, non-keyed set, so no cylinder is supplied with it. The plate is still prepped for the Euro profile cylinder below the handle because that is what Door Config #5 calls for, which is normal on the inactive or interior side of a patio pair. If you want key operation on that leaf, you want a keyed version instead.
3) Will Emtek 1522 trim fit my Therma-Tru or Kolbe patio door?
Emtek lists the 1522 multi point trim as referencing these door manufacturers: Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Fit still comes down to the lock layout, so match Door Config #5 (Euro cylinder below the handle, 3-5/8 inch center-to-center) against the lock in your door.
4) What door thickness and bore does this Emtek multi point trim need?
It suits doors 1-3/8 to 1-3/4 inches thick, with a 2-1/8 inch cross bore and a backset that adjusts between 2-3/8 and 2-3/4 inches. Latch faceplate is available round or square corner. There is also a door thickness text field on the order, so if your slab is a nonstandard thickness within that range, state it.
5) Do I have to specify handing when ordering the Emtek 1522?
Yes, handing is required: right hand or left hand. Multi point trim is handed because the lever and plate orientation follow the door swing, so getting it wrong means the lever points the wrong way. Lever style is also a required choice.
6) Which levers can I put on the Emtek 1522 sandcast bronze plates?
Any Sandcast Bronze lever from the collection, chosen at order time. The options are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. That lets you keep the patio door consistent with the sandcast bronze levers on the rest of the openings.
7) Will the lever on this Emtek patio trim sag over time?
Emtek now builds a Spring Assist function into every multi point lock trim, which returns the lever to the neutral horizontal position and stops the handle drooping. That is the common complaint on older multi point trim, and it is addressed on current production.
8) Is the Emtek 1522 suitable for a commercial entrance?
It is a residential-rated set, sized 2 x 10 inches in the Arched style, intended for swinging patio doors in homes. For a commercial opening with traffic and code requirements, look at a Grade 1 or Grade 2 commercial lockset rather than residential sandcast bronze patio trim.
9) What finishes does the Emtek 1522 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are living finishes on solid bronze, so expect them to vary slightly piece to piece, which is the point of the sandcast look.
