Emtek 1622 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

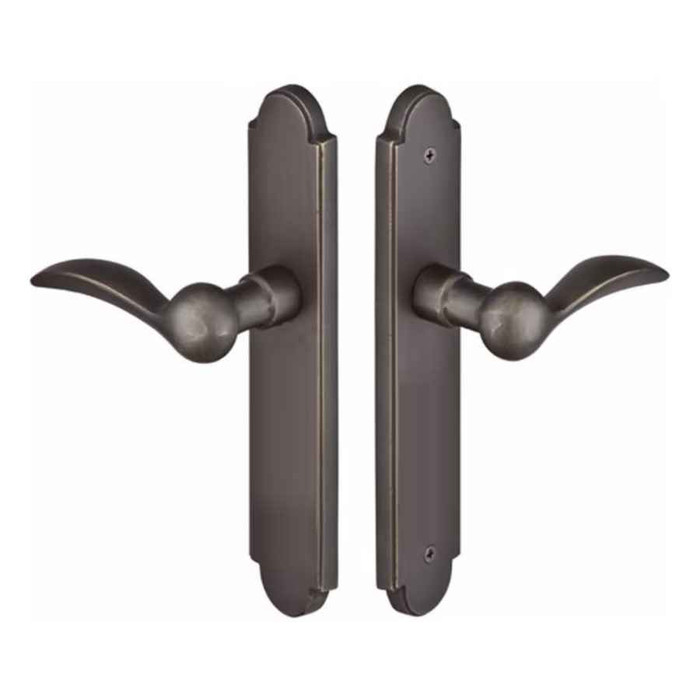

Emtek Emtek 1622 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage EMTEK-1622

Emtek 1622 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1622-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1622 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1622
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1622-FB – Frequently Asked Questions

1) Does the Emtek 1622 multi point trim include the multi point lock mechanism?
No. The 1622 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside. Levers are selected separately from ten Sandcast Bronze styles (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma).
2) Will the Emtek 1622 trim fit my Milgard or Pella patio door?
Milgard and Pella are the reference door manufacturers for this Door Configuration #6 trim. Configuration is what decides fit on a multi point door, so match the #6 layout (handle set with the cylinder position below the handle) to what your door is prepped for. The center-to-center spindle-to-cylinder dimension is 3-5/8 inches.
3) What door thickness and backset does the Emtek 1622 handle set work with?
Doors from 1-3/8 to 1-3/4 inches, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. Latch faceplate comes round or square corner. Door thickness is an entry field when ordering, so state your actual thickness.
4) Do I have to specify handing on the Emtek 1622 trim?
Yes, handing is required: right hand or left hand. Multi point trim is not reversible in the field, so determine the swing before ordering. Pair that with your lever style choice and finish, both of which are also selected at order time.
5) What finishes does the Emtek 1622 Sandcast Bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All are Sandcast Bronze collection finishes, so they match other Emtek sandcast bronze hardware on the same elevation.
6) Will the Emtek 1622 stop my patio door levers from sagging?
The trim includes a spring assist that returns the lever to neutral, which is what prevents the drooping handle you get on older multi point trim. That is a common reason property managers swap out a worn set rather than rebuild it.
7) Is the Emtek 1622 arched trim big enough to cover my old plate cutouts?
The plates are 2 by 10 inches in an arched style, solid bronze. Measure your existing plate footprint against that before removing the old set; anything wider or longer than 2 x 10 will leave the prep exposed.
8) Is the Emtek 1622 suitable for a commercial building entrance?
It is classified as residential hardware, made for swinging patio doors. For a commercial opening under traffic and code requirements, a residential multi point patio trim is the wrong starting point; look at commercial mortise or cylindrical lock lines instead.
