Emtek Emtek 1145 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair EMTEK-1145

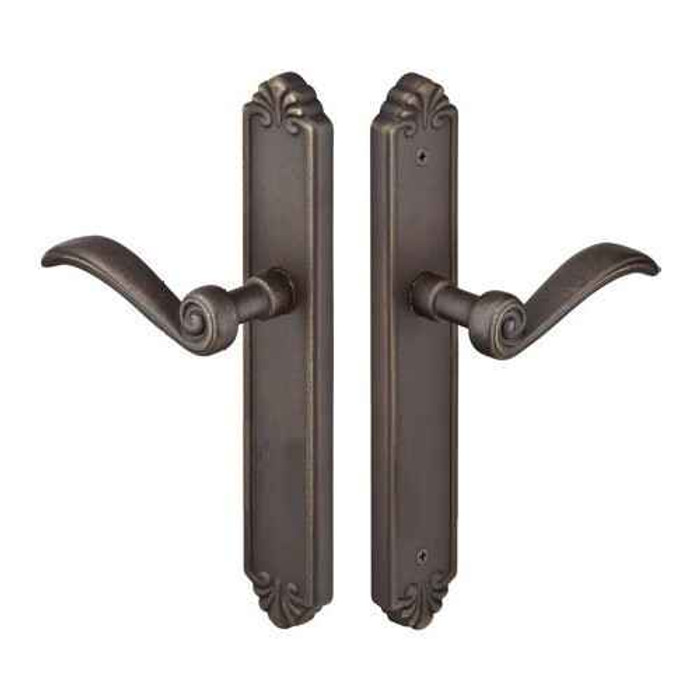

Emtek 1145 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

(No reviews yet) Write a Review

Model: 1145-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1145 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1145
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1145-MB – Frequently Asked Questions

1) Does the Emtek 1145 multi point trim include the mortise lock body?
No. The Emtek 1145 is trim only: plates and handles. The multi point mortise lock box is not included, and because this is the dummy pair it has no working latch or bolt function at all. You would order the lock case separately if the door needs one.
2) What does a dummy multi point trim set actually do on a patio door?
It gives you a matching pull on a door leaf that does not operate, typically the inactive leaf of a French or swinging patio pair. Handles are fixed, nothing latches, and there is no keying (the 1145 is a non-keyed dummy). Use it so the inactive side looks identical to the active leaf carrying the real multi point lock.
3) Will the Emtek 1145 trim fit a 1-3/4 inch door?
Yes. The 1145 covers doors from 1-3/8 inch to 1-3/4 inch thick, which spans the standard commercial and residential 1-3/4 inch leaf and thinner older doors. It is surface mount, so no door prep is required to install the plates.
4) Do I have to specify handing when ordering the Emtek 1145?
Yes, handing is required. You choose Right Hand (RH) or Left Hand (LH), along with a lever style: Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Door thickness can also be entered as a note on the order.
5) What size are the Emtek 1145 plates, and will they cover my existing trim holes?
Each plate measures 2 x 10-1/2 inches with 3-5/8 inch center-to-center spacing, and there is a cylinder position below the handle on the plate pattern. Compare that 3-5/8 inch dimension and the plate footprint against the existing escutcheon on your door; since the 1145 mounts on the surface, it covers rather than requires new prep.
6) What finishes does the Emtek 1145 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze in the Tuscany Bronze collection, so they match other Tuscany bronze levers and plates on the rest of the openings.
7) Can I mix the 1145 plates with other Emtek bronze levers?
Yes. The 1145 plates accept any Emtek Lost Wax Cast Bronze lever in the Tuscany bronze range, so you can carry the same lever shape used on the interior doors onto the patio trim.
8) If I need a keyed multi point trim instead of a dummy, does the 1145 work?
No. The 1145 is a non-keyed dummy pair with no cylinder supplied, though the plate does carry a cylinder position below the handle. For a locking opening you need the active-leaf keyed trim in the same Door Configuration #1 pattern, which takes an American cylinder.
9) Is the Emtek 1145 rated for commercial use?
Emtek lists the 1145 as residential. For a multi-family or commercial opening that needs graded hardware, this cast bronze patio trim is not the item to spec.
10) Is the Emtek 1145 an electronic or smart lock trim?
No, it is mechanical only, with no electronic option. Nothing to wire, no power supply to plan for.
