Emtek 1345 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

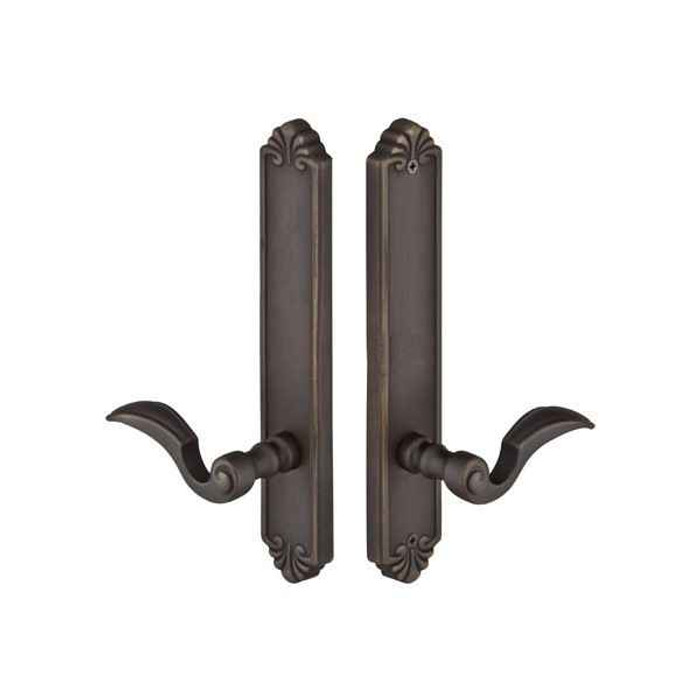

Emtek Emtek 1345 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair EMTEK-1345

Emtek 1345 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

(No reviews yet) Write a Review

Model: 1345-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1345 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1345
(CTC) Center-to-Center:
4-1/8"
Product Function:
Dummy
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1345-MB – Frequently Asked Questions

1) Does the Emtek 1345 Tuscany multi point trim include the lock body?
No. The Emtek 1345 is trim only, plates and handles, in a dummy pair configuration. The multi point mortise lock box is not included and has to be sourced separately. Buy this when the door already has a working multi point lock, or when the leaf is a fixed inactive panel that only needs matching handles.
2) What does Dummy mean on this Emtek multi point patio door trim?
Dummy means there is no latching or locking action at all. The 1345 plates and levers are fixed, non-operating pulls, no keying and no electronics. On a swinging patio pair, the dummy set typically dresses the inactive leaf so it visually matches the active door running a functioning multi point lock.
3) Will this Emtek trim fit a 1-3/4 inch door, and does it need door prep?
It covers 1-3/8 inch to 1-3/4 inch doors, which spans the usual residential swinging patio door range. Mounting is surface mount with no door prep required, so no boring or mortising is needed for the trim itself.
4) What is Door Configuration #3 on Emtek multi point trim, and how do I know it matches my lock?
Configuration #3 describes the layout of the plate: on the 1345 the cylinder opening sits above the handle, with 4-1/8 inch center-to-center between the cylinder and the lever spindle. If your existing multi point lock puts the cylinder above the lever at that 4-1/8 inch spacing, this plate lines up. Different spacing or a cylinder below the handle means a different configuration number.
5) Does the Emtek 1345 work on Andersen swinging patio doors?
Andersen is the reference door manufacturer for this trim, so the 1345 plate layout is built around that style of swinging patio door multi point hardware. Confirm the cylinder-above-handle arrangement and 4-1/8 inch center-to-center against the door you have before ordering.
6) What do I have to specify when ordering the Emtek 1345 dummy trim set?
Three choices. Finish: Flat Black Bronze (FB) or Medium Bronze (MB). Lever style: Medici (MD), Napoli (NA), Octagon (OCL), or Padua (PD). And handing, right hand (RH) or left hand (LH). Door thickness can also be entered so the set is supplied for your leaf within the 1-3/8 to 1-3/4 inch range.
7) Why does a dummy handle set need handing?
Because the plate is not symmetrical, the lever throw and the cylinder cutout position are oriented to one side. Order right hand (RH) or left hand (LH) to match the leaf. Stand outside the door: if the hinges are on your right it is a right hand door.
8) Can I mix a different Emtek lever with the 1345 Tuscany plates?
Yes, within the family. The 1345 plates accept any Lost Wax Cast Bronze lever from the Tuscany Bronze collection. The four offered here are Medici, Napoli, Octagon, and Padua. Staying inside Tuscany Bronze is what keeps the casting texture and finish matched to the plate.
9) How big are the Emtek 1345 plates, and will they cover the old escutcheon marks?
Each plate measures 2 x 10-1/2 inches. That is a narrow, tall footprint sized for a patio door stile, so it covers the vertical run of a typical multi point escutcheon but will not hide anything wider than 2 inches.
10) Is this Emtek trim suitable for a commercial entrance?
It is classed as residential hardware. For apartment units, single family homes, and hospitality guest patio doors it is the right category. For a commercial storefront or a code-driven egress opening you want a commercial rated device instead, not a residential dummy trim.
11) If I later want a keyed active door to match this dummy set, what cylinder does the Emtek plate take?
The plate is cut for an American cylinder classification with the cylinder sitting above the handle. The 1345 itself is a dummy and comes unkeyed, so keying happens on the active leaf's multi point lock, which accepts an American standard mortise cylinder in that same above-handle position.
12) Is the Emtek 1345 plate solid bronze or plated?
Substrate and material are both bronze, lost wax cast, in the Tuscany Bronze style. Cast bronze gives the plate its slightly irregular surface and lets the Flat Black Bronze and Medium Bronze finishes develop over time rather than sitting on top as a coating.
