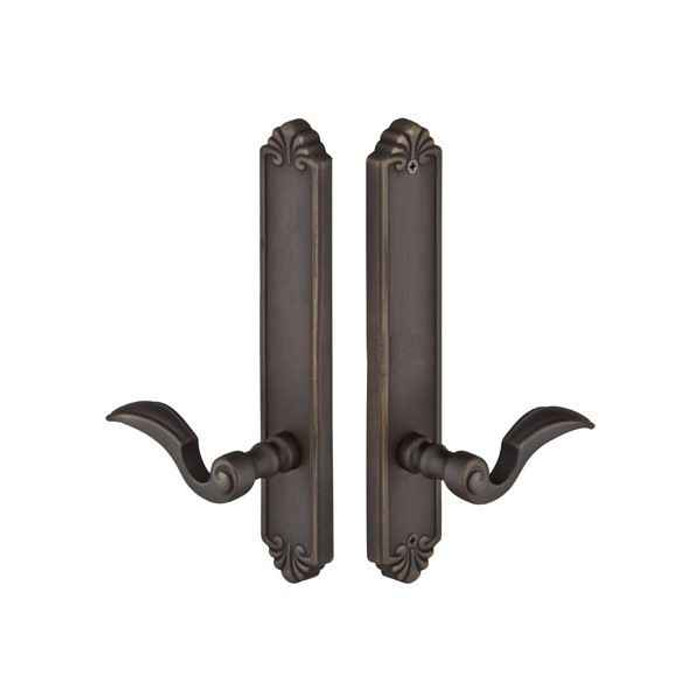

Emtek Emtek 1245 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair EMTEK-1245

Emtek 1245 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

(No reviews yet) Write a Review

Model: 1245-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1245 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Dummy Pair

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1245
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1245-MB – Frequently Asked Questions

1) Does the Emtek 1245 Tuscany trim include the multi point mortise lock body?
No. The 1245 is trim only, and it's a dummy pair at that: you get the two cast bronze plates and the levers, no mortise lock box and no working latch. It's the set you use on the inactive leaf of a pair of swinging patio doors, or where you only need a pull. If the door needs to lock, you order the multi point mortise lock case separately.
2) What door thickness does the Emtek 1245 multi point trim fit, and does it need door prep?
It covers 1-3/8 inch to 1-3/4 inch doors and mounts to the surface, so no boring or mortising of the door face is required. There's also an optional door thickness field on the order if your slab is a nonstandard thickness.
3) What does Door Configuration #2 mean on Emtek multi point trim, and how do I know it matches my door?
Emtek codes their multi point trims by the layout of the plate: config #2 puts the cylinder hole above the handle, with 3-5/8 inch center-to-center between the cylinder and the lever spindle. Measure that dimension on your existing plate or on the mortise case already in the door. If your cylinder sits below the handle, or the spacing is different, #2 is the wrong configuration.
4) Which patio door brands does this Emtek Tuscany multi point trim suit?
Emtek references this configuration against BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point doors. Confirm the 3-5/8 inch cylinder-to-handle spacing on your actual door before ordering, since manufacturers ran more than one layout over the years.
5) Do I have to specify handing on the Emtek 1245 dummy trim?
Yes, handing is a required choice, right hand or left hand. Even on a dummy set the lever is handed, so pick to match the swing of the leaf you're dressing. Lever style is also required: Medici, Napoli, Octagon, or Padua.
6) What finishes does the Emtek 1245 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze from the Tuscany Bronze collection, so they'll match other Tuscany bronze levers and knobs on the rest of the openings, and they'll patina the way solid bronze does rather than holding a plated look.
7) Is the Emtek 1245 keyed, and what cylinder does it take?
The 1245 dummy pair is not keyed, so no cylinder ships with it. The plate is still cut for a cylinder above the handle in the American (rim/mortise standard) classification, which is what the keyed version of this configuration uses. For a locking opening you want the keyed multi point trim plus the mortise case, not this one.
8) Is the Emtek 1245 suitable for a commercial entrance?
It's a residential-rated set, built for swinging patio doors in homes. For a commercial entry with traffic and code requirements, use a commercial mortise or exit device line instead; this is decorative cast bronze patio trim with no working latch.
