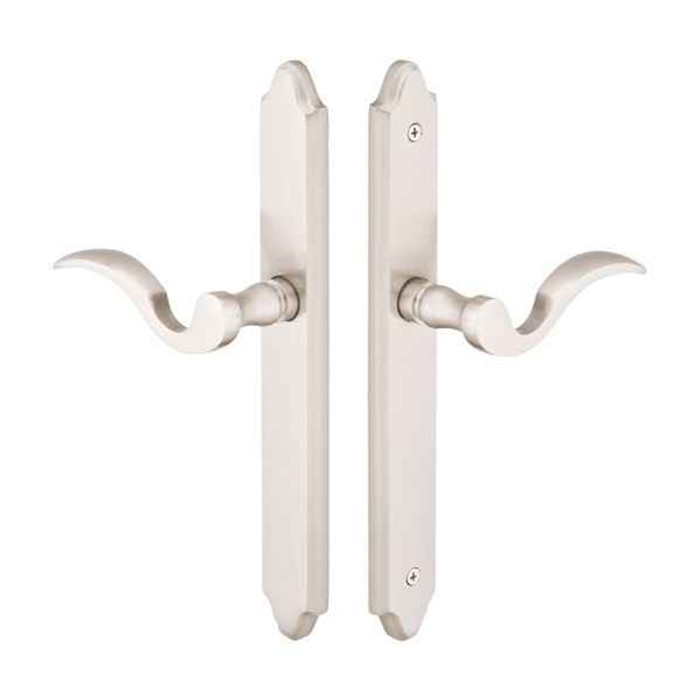

Emtek 1175 Multi Point Lock Trim (Door Config #1) - Brass Plates, Concord Style (1.5" x 11"), Dummy Pair

Center-to-center is 3-5/8 inches, measured handle to cylinder, with the cylinder sitting below the handle. That spacing is what has to match the gearbox already in your door. Emtek lists this Door Configuration #1 trim against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior doors.

A dummy pair is fixed trim. There is no latch action, no key, no cylinder function, and no thumbturn behind it. It goes on the inactive leaf of a French or patio door pair, or on a slab that is held by a flush bolt or shootbolt operated elsewhere. The active leaf takes a keyed or operating trim. If your door needs to lock or latch from this handle, the dummy is the wrong part.

No new machining for the trim itself. It surface mounts, so no door prep is required for the plates. The prep you do need is whatever the multi point lock body in the door already required. Fits doors 1-3/8 to 1-3/4 inches thick.

Yes. Right hand or left hand is a required choice even on the dummy pair, because the plate and lever geometry is handed. Stand outside the door: if the hinges are on your right, it is right hand. Order the wrong hand and the lever points the wrong way.

It is residential hardware, for swinging patio and French doors on homes. For a commercial entry with traffic volume and code requirements behind it, spec a commercial grade lockset rather than residential patio door trim.

Yes, 1-3/4 inches is inside the range. The trim covers 1-3/8 through 1-3/4 inch doors, which spans the common residential patio and French door thicknesses. There is a door thickness field on the order so you can state your actual measurement.

The Concord plate measures 1-1/2 x 11 inches. That is a narrow escutcheon, so it will hide the gearbox faceplate line but not a wide previous trim footprint. Measure the old plate before you assume coverage.

Three things. Lever style is required, and Emtek's brass lever range on this trim runs from the L-Square, T-Bar, and R-Bar families with Faceted, Hammered, Knurled, Tribeca, Straight Knurled, and White Marble textures, through Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton, Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts, and Hammered. Handing is required. Door thickness is an optional note field. The lock body is a separate order.

Eight finishes: Oil Rubbed Bronze US10B, Satin Nickel US15, Pewter US15A, Flat Black US19, Polished Chrome US26, Polished Brass Lifetime US3, Unlacquered Brass US3NL, and French Antique US7. The plates are solid brass, and the levers are drawn from Emtek's brass lever range, so the trim matches into a brass door hardware suite across a house.

The dummy pair is not keyed and has no operating cylinder. The 1175 plate is laid out for an American cylinder positioned below the handle, so if the opening needs to key, order the keyed configuration of the trim from the start rather than trying to convert a dummy.

Purely mechanical. No electronics, no motor, no wiring in the trim, and nothing in it needs power or a battery.
