Emtek Emtek 1222 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage EMTEK-1222

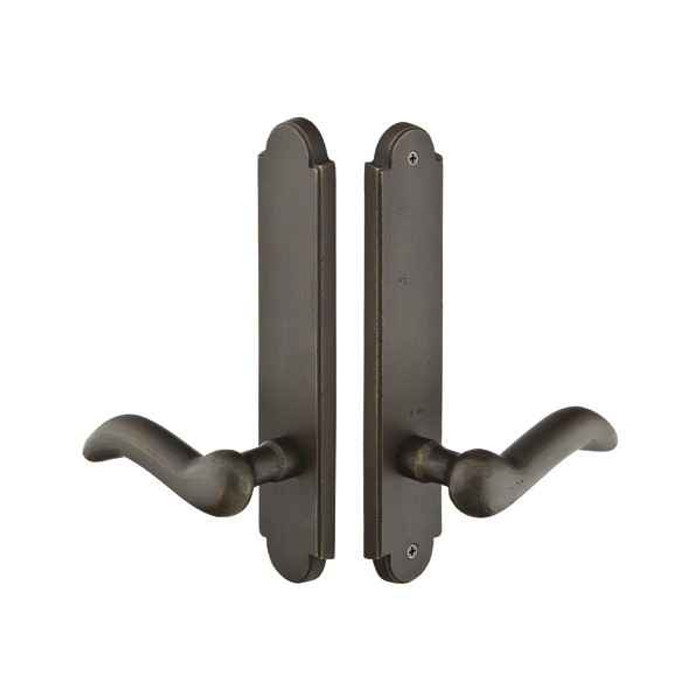

Emtek 1222 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1222-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1222 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1222
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1222-FB – Frequently Asked Questions

1) Does the Emtek 1222 multi point trim include the mortise lock body?
No. The Emtek 1222 is trim only: the two 2 x 10 inch arched sandcast bronze plates and the handles. The multi point mortise lock box is a separate purchase, so you need an existing multi point lock in the door or a new lock body ordered alongside it.
2) Which patio door brands does the Emtek 1222 Door Config #2 trim fit?
Door Configuration #2 is referenced to BiltBest, G-U, Hurd (Energy Saver) and Andersen multi point swinging patio doors. The deciding dimension is the 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder position above the handle. Measure your existing plate before ordering, because Emtek splits these trims by door configuration and a different CTC means a different config number.
3) This is listed as non-keyed passage but has a cylinder hole above the handle. What does that mean for my door?
Passage function means the trim itself carries no key cylinder and no thumbturn, it just operates the multi point lock's handle. The plate is still made with the cylinder opening above the handle position, sized for an American style cylinder, so if you want the door keyed you need the keyed version of this trim instead. Use the non-keyed 1222 on an inactive or interior-side leaf where you don't want a lock.
4) Do I have to specify handing when ordering Emtek 1222 multi point trim?
Yes, handing is required: right hand or left hand. There is no reversible option on this trim, so an incorrectly handed set will not operate the lock properly. You also have to pick the lever style at order time.
5) Which lever styles can go on the Emtek 1222 sandcast bronze arched plates?
Any lever in Emtek's Sandcast Bronze range pairs with these plates. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is required, and both sides of the door get the same lever.
6) Will this fix the sagging lever on my patio door?
Emtek now builds spring assist into every multi point lock trim, which returns the lever to horizontal and stops the droop you get from worn or unsprung older trim. If sagging handles are the reason you are replacing the trim, that is the feature doing the work.
7) What prep does the door need for Emtek 1222 trim, and does the backset matter?
Backset is adjustable at 2-3/8 or 2-3/4 inch, the two standard bores, and the cross bore is 2-1/8 inch. The latch faceplate suits either round or square corner prep. On an existing multi point door the prep is usually already there; on a new door, confirm the bore centers match before boring.
8) What finishes does the Emtek 1222 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are living finishes on solid bronze, so they will mellow with handling and weather exposure, which is normal for sandcast bronze and part of the rustic look.
9) Is Emtek 1222 multi point trim approved for commercial openings?
It is a residential product, built for swinging patio doors in homes. For a commercial storefront or a code-driven opening in a school or hospital, you want a graded commercial lockset instead of residential multi point patio trim.
