Emtek Emtek 12B4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-12B4

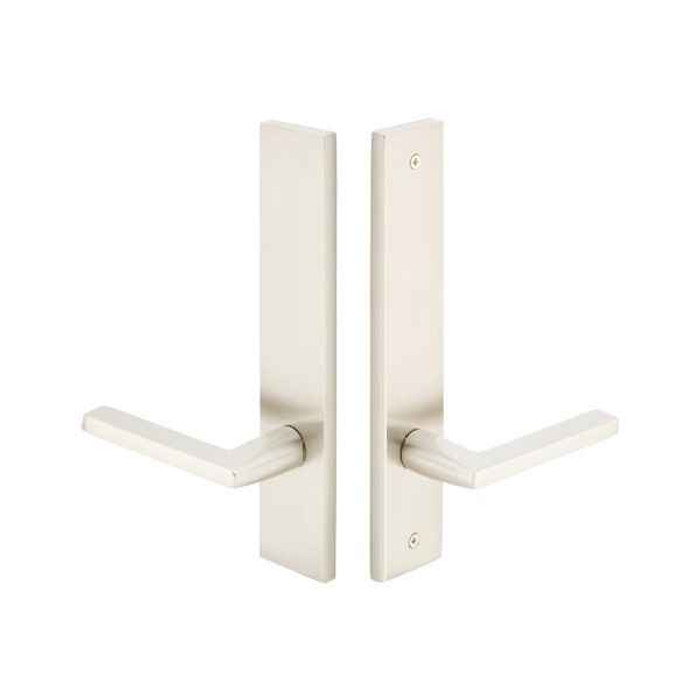

Emtek 12B4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 12B4-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 12B4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
12B4
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 12B4-US19 – Frequently Asked Questions

1) Does the Emtek 12B4 multi point trim include the multi point lock itself?
No. The 12B4 is trim only, plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock mechanism already in the door or ordered alongside it.
2) Will the Emtek 12B4 trim line up with my existing multi point lock handle and cylinder holes?
The plates are 2 by 10 inches with a 3-5/8 inch center-to-center between the handle spindle and the cylinder hole, and the cylinder sits above the handle. Measure your door prep from the spindle hole to the cylinder hole. If that measurement is not 3-5/8 inches, this trim will not land on the existing prep.
3) Do I have to specify handing when ordering the Emtek 12B4?
Yes, handing is a required choice, right hand or left hand. On a pair of doors the semi-active leaf takes the opposite hand from the active leaf, so confirm which leaf this trim is going on before you pick.
4) I need the keyed handle set for the active leaf, not this one. Is the 12B4 the right part?
No. The 12B4 is the non-keyed semi-active trim, fixed outside handle with an operating lever inside. The active leaf of the pair, the one people actually key into, needs the keyed configuration from Emtek's multi point trim range in the same Modern 2 by 10 inch plate and 3-5/8 inch center-to-center so both leaves match.
5) Do I need a cylinder for the Emtek 12B4 semi-active door trim?
The 12B4 is the non-keyed version, so there is no key cylinder function on the outside. The plate does carry a cylinder position above the handle and is set up for an American classification cylinder, but the function itself is fixed handle outside with the operating lever inside.
6) What finishes and lever styles can I get on the Emtek Modern multi point trim?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Lever style is a separate required choice and any Emtek brass lever can be paired with it, from the L-Square, T-Bar and R-Bar contemporary bars through Athena, Luzern, Milano, Rope, Rustic and the rest of the brass lever range.
7) Will the lever on this Emtek patio door trim sag over time?
Emtek builds a spring assist into this multi point trim. It returns the lever to neutral after each use, which is what stops the droopy handle you get on older patio door trim.
8) Is the Emtek 12B4 trim suitable for a commercial building entrance?
Emtek classes the 12B4 as residential hardware for swinging patio doors. It is solid brass with Modern style plates, aimed at homes and multi-family unit patio doors rather than commercial entrance duty.
9) Do I need to give a door thickness when ordering this Emtek multi point trim?
Door thickness is an optional entry on the order, and it is worth filling in. Multi point trim spindles and screws are cut to the door, so giving the actual measured thickness of your patio door slab avoids a spindle that is short or long.
